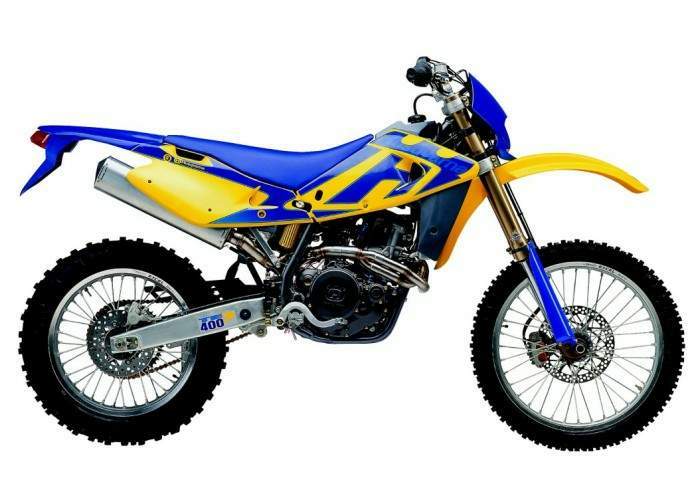

Technical specifications
|
| Model: |
TE 400 |
| Years: |
2001-02 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valve
|
|
Capacity:
|
399 cc / 24.3 cu-in
|
|
Bore x Stroke:
|
91.5 x 60.8 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
11.4:1
|
|
Induction:
|
36mm Dell’Orto carburetor
|
|
Ignition:
|
Digital CDI
|
|
Starting:
|
Electric & kick
|
|
Max Power:
|
34 hp / 24.8 kW @ 7000 rpm
|
|
Max Torque:
|
40.6 Nm / 30 lb-ft @ 5150 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Steel single tube cradle (round tubes), rear frame in light alloy
|
|
Front Suspension:
|
Marzocchi "Upside-Down" telescopic hydraulic fork with advanced axle. compression and rebound stroke adjustment
|
|
Rear Suspension:
|
Sachs progressive "Soft Damp" type with single hydraulic shock absorber, spring preload adjustment, compression and rebound adjustment
|
|
Front Brakes:
|
Single 260mm disc
|
|
Rear Brakes:
|
Single 220mm disc
|
|
Front Tyre:
|
90/90 -21
|
|
Rear Tyre:
|
140/80-18
|
|
Wheelbase:
|
1450 mm / 57.1 in
|
|
Seat Height:
|
890 mm / 35.0 in
|
|
Ground Clearance:
|
365 mm / 14.4 in
|
|
Dry Weight:
|
109.0 kg / 240.3 lbs
|
|
Fuel Capacity:
|
8 Litres / 2.1 US gal
|
