Husqvarna Supermoto 701 (2020) technical specifications

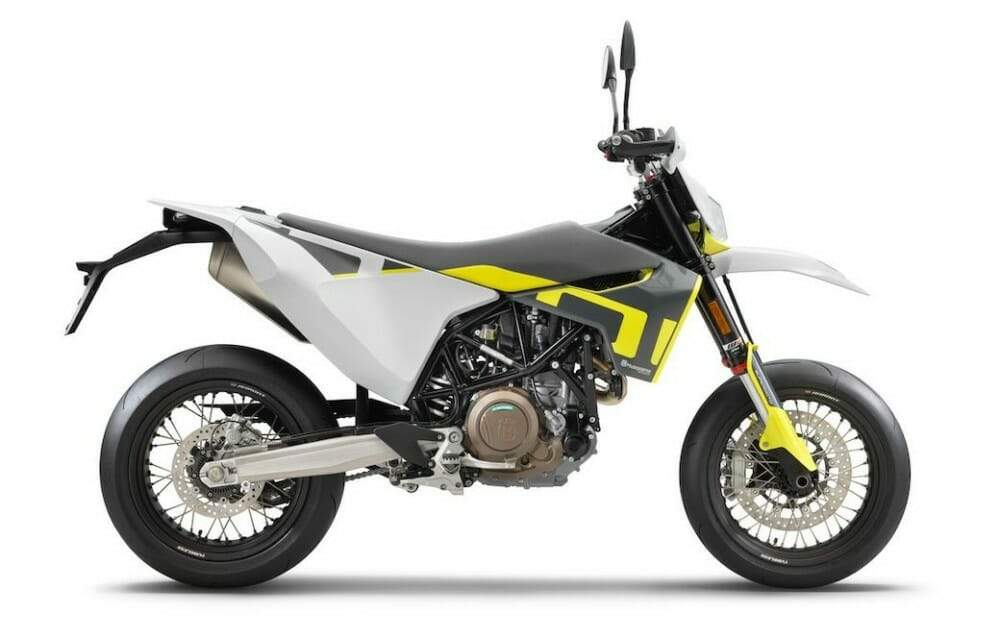

Husqvarna Supermoto 701 technical specifications

Husqvarna Supermoto 701 is produced in 2020. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 692.7 cc / 42.27 cu in , produces power 55 kW / 74 hp @ 8000 rpm and 71 Nm / 7.24 kgf-m / 52.4 ft-lb @ 6750 rpm. Husqvarna Supermoto 701 weighs 145 kb / 319.6 lbs. Husqvarna Supermoto 701 has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Supermoto 701
Years: 2020
Engine: Four stroke, single cylinder, SOHC, 4 valves
Capacity: 692.7 cc / 42.27 cu in
Bore x Stroke: 105 x 80 mm
Compression Ratio: 12.7:1
Cooling System: Liquid cooling
Lubrication: Pressure lubrication with 2 oil pumps
Engine Oil: Bel Ray, SAE 10W-50
Exhaust: Stainless steel silencer with regulated catalytic converter
Engine Management: Keihin EMS with Ride By Wire
Induction: Keihin EMS with RBW
Ignition: Double ignition
Starting: Electric
Battery: 12V 8.6Ah
Max Power: 55 kW / 74 hp @ 8000 rpm
Max Torque: 71 Nm / 7.24 kgf-m / 52.4 ft-lb @ 6750 rpm
Clutch: APTC(TM) slipper clutch, hydraulically operated
Transmission: 6 Speed
Final Drive: Chain X-Ring 5/8 x 1/4"
Primary Drive Ratio: 36:79
Final Drive Ratio: 16:42
Frame: Chromium-Molybdenum-Steel trellis frame, powder coated, Subframe Self-supporting polyamide tank
Handlebar: Aluminium, tapered, Ø 28/22 mm
Front Suspension: WP-USD split function fork Ø 48 mm
Front Wheel Travel: 215 mm / 8.4 in
Rear Suspension: WP-Monoshock with Pro-Lever linkage
Rear Wheel Travel: 250 mm / 9.8 in
Front Brakes: Single 320 mm disc, Brembo four piston, radially bolted caliper
Rear Brakes: Single 240 mm disc, Brembo single piston, floating caliper
ABS: ABS Bosch 9M+ Two Channel (disengageable, supermoto mode)
Front Wheel: Spoked wheels with aluminium tubeless rims 3.50 x 17";
Rear Wheel: Spoked wheels with aluminium tubeless rims 5.00 x 17"
Front Tyre: 120/70 ZR 17
Rear Tyre: 160/60 ZR 17
Steering Head Angle: 63°
Triple Clamp Ofset: 35 mm / 33 mm
Trail: 112 mm / 4.4 in
Wheelbase: 1480 ± 15 mm mm / 58.2 in
Seat Height: 890 mm / 35.0 in
Ground Clearance: 270 mm / 10.6 in
Dry Weight: 145 kb / 319.6 lbs
Fuel Capacity: 13 L / 3.4 US gal / 2.9 Imp gal
Reserve: 2.5 L / 0.66 US gal / 0.55 Imp gal
