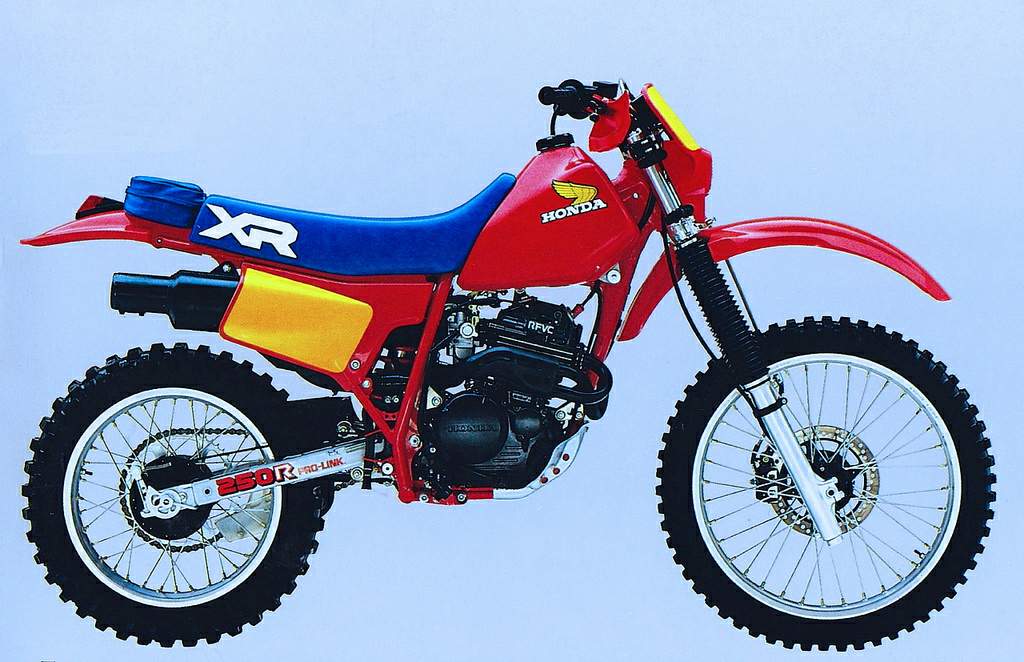

Honda XR 250R (1984) technical specifications

Honda XR 250R is produced in 1984. Engine is Four-stroke, single cylinder SOHC, 4 valve, RFVC (Radial Four Valve Combustion Chamber), displacement 249 cc / 15.1 cu-in , produces power 30 hp / 21.9 kW @ 9000 rpm and 24.5 Nm @ 7500 rpm. Honda XR 250R weighs 108 kg / 238 lbs. Honda XR 250R has 3 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XR 250R
Years:	1984
Engine:	Four-stroke, single cylinder SOHC, 4 valve, RFVC (Radial Four Valve Combustion Chamber)
Capacity:	249 cc / 15.1 cu-in
Bore x Stroke:	75 x 56.5 mm
Cooling System:	Air cooled
Compression Ratio:	9.3:1
Induction:	2x 24mm Keihin CV
Ignition:	CDI
Spark Plug:	NGK DPR 9Z
Starting:	Kick
Max Power:	30 hp / 21.9 kW @ 9000 rpm
Max Torque:	24.5 Nm @ 7500 rpm
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st 2.769 2nd 1.882 3rd 1.380 4th 1.083 5th 0.923 6th 0.814
Front Suspension:	Leading axel air spring 38mm forks
Front Wheel Travel:	254 mm / 10.0 in
Rear Suspension:	Pro-link Kayaba damper adjustment for spring preload and rebound damping.
Rear Wheel Travel:	247 mm / 9.6 in
Front Brakes:	Single 240mm disc 2 piston calipers
Rear Brakes:	Drum
Front Tyre:	80/100-21
Rear Tyre:	110/90-17
Rake:	26°
Trail:	105 mm / 4.1 in
Wheelbase:	1364 mm / 53.7 in
Seat Height:	905 mm / 35.6 in
Ground clearance:	315 mm / 12.4 in
Dry Weight:	108 kg / 238 lbs
Wet Weight:	112 kg / 247 lbs
Fuel Capacity:	9 Litres / 2.4 gal
