Honda XLX 350R (1987-90) technical specifications

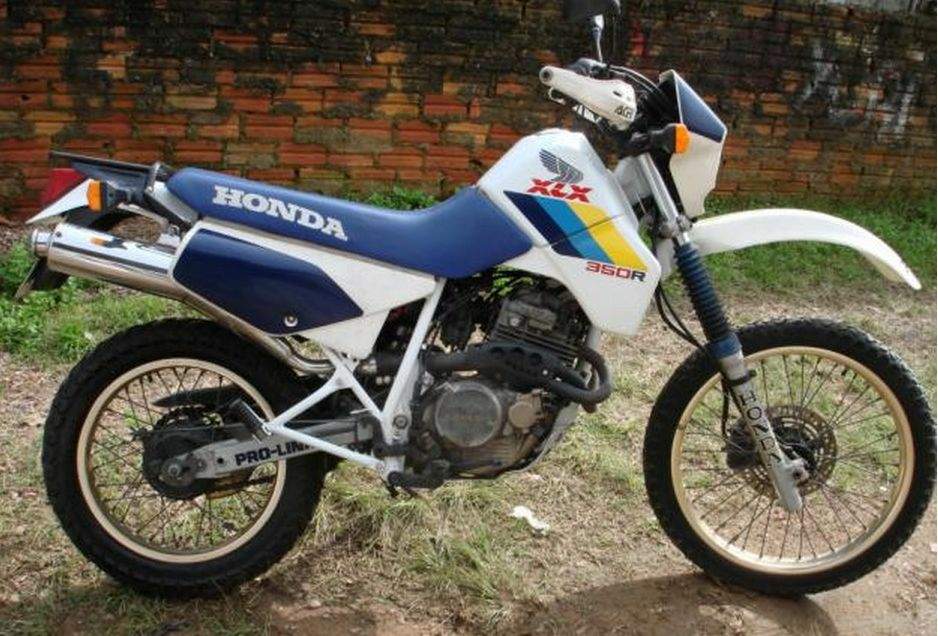

Honda XLX 350R is produced in 1987-90. Engine is Four stroke, single cylinder, SOHC, 4 valve, displacement 339 cc / 26.7 cu-in , produces power 30 hp / 22 kW @ 7500 rpm and 28.3 Nm / 20.9 lb·ft @ 6500 rpm. Honda XLX 350R wet weight is 137 kg / 302 lbs. Honda XLX 350R has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XLX 350R
Years:	1987-90
Engine:	Four stroke, single cylinder, SOHC, 4 valve
Capacity:	339 cc / 26.7 cu-in
Bore x Stroke:	84 x 61.3 mm
Cooling System:	Air cooled
Compression Ratio:	9.5;1
Induction:	2x 26mm Keihin
Ignition:	CDI
Starting:	Electric
Max Power:	30 hp / 22 kW @ 7500 rpm
Max Torque:	28.3 Nm / 20.9 lb·ft @ 6500 rpm
Transmission:	6 Speed
Final Drive:	Chain
Front Suspension:	41mm Air adjustable forks
Front Wheel Travel:	230 mm / 9.1 in
Rear Suspension:	Single gas shocks, fully adjustable
Rear Wheel Travel:	220 mm / 8.6 in
Front Brakes:	Single disc
Rear Brakes:	Drum
Front Tyre:	3.00 -21
Rear Tyre:	4.60 -17
Rake:	30.5°
Trail:	120 mm / 4.7 in
Dimensions:	860 mm / 33.9 in
Wheelbase:	1410 mm / 55.6 in
Seat Height:	Width 800 mm / 31.5 in
Wet-Weight:	137 kg / 302 lbs
Fuel Capacity:	11 Litres / 2.9 US gal
