Honda XLR 125 (2000-) technical specifications

Honda XLR 125 technical specifications

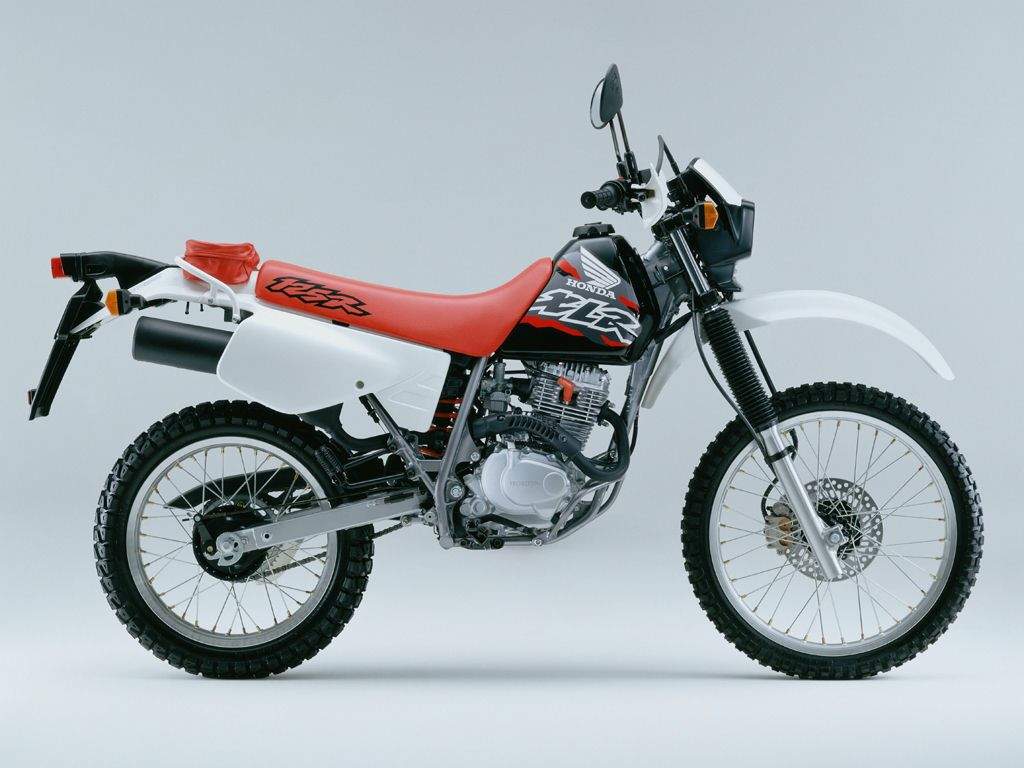

Honda XLR 125 is produced in 2000-. Engine is Four stroke, single cylinder, OHC, 2 valves, displacement 124 cc / 7.6 cu-in , produces power 11.4 hp / 8.4kW @ 8250rpm and 1.07kgf-m 10.5Nm @ 7000rpm. Honda XLR 125 weighs 109 kg / 240 lbs. Honda XLR 125 has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XLR 125
Years: 2000-
Engine: Four stroke, single cylinder, OHC, 2 valves
Capacity: 124 cc / 7.6 cu-in
Bore x Stroke: 56.5 x 49.5 mm
Cooling System: Air cooled
Compression Ratio: 9.1:1
Induction: Single 22mm PD-type
Ignition: CDI
Starting: Kick
Max Power: 11.4 hp / 8.4kW @ 8250rpm
Max Torque: 1.07kgf-m 10.5Nm @ 7000rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 37mm telescopic fork, 225mm wheel travel
Rear Suspension: Pro-Link, 231mm wheel travel
Front Brakes: Single 240mm disc 2 piston caliper
Rear Brakes: Drum
Front Tyre: 275-21
Rear Tyre: 410-18
Wheelbase: 1375 mm / 54.1 in
Seat Height: 860 mm / 33.9 in
Dry Weight: 109 kg / 240 lbs
Wet Weight: 126.0 kg / 277.8 lbs
Fuel Capacity: 9 Litres / 2.3 us gal
