Honda XL 600V Transalp (1994) technical specifications

Honda XL 600V Transalp technical specifications

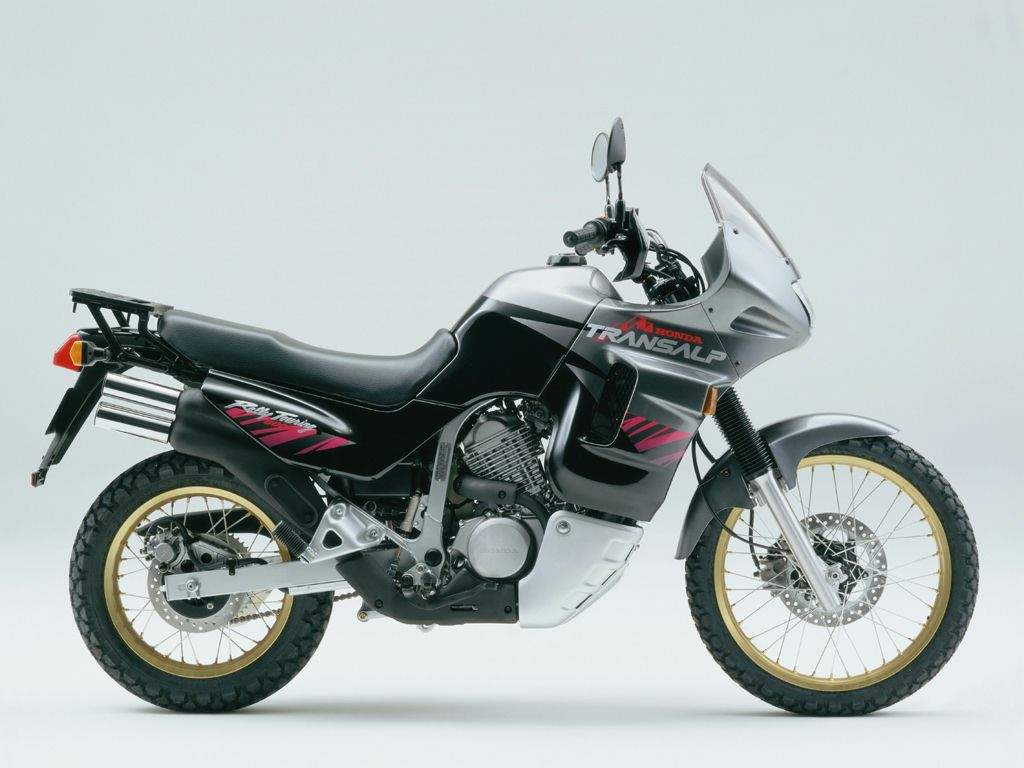

Honda XL 600V Transalp is produced in 1994. Engine is Four stroke, 52° V-Twin, SOHC, 3 valves per cylinder, displacement 583 cc / 35.5 cu-in , produces power 50 hp / 36.5 kW @ 8000 rpm and 52.6 Nm / 38.8 ft-lb @ 6000 rpm. Honda XL 600V Transalp top speed is 172.5 km/h. Honda XL 600V Transalp weighs 183.0 kg / 404 lbs. Honda XL 600V Transalp has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XL 600V Transalp
Years: 1994
Engine: Four stroke, 52° V-Twin, SOHC, 3 valves per cylinder
Capacity: 583 cc / 35.5 cu-in
Bore x Stroke: 75.0 x 66 mm
Cooling System: Liquid cooled
Compression Ratio: 9.2:1
Induction: 2x 32 mm Keihin Carburettor CV
Ignition: Electronic
Electrical: Electronical double CD-I ingnition, 12Vdc, 12V/12Ah battery, AC-generator, electrical starter, electronic safegard on side stand
Generator: 0.310 kW / 5000 rpm
Starting: Electric
Max Power: 50 hp / 36.5 kW @ 8000 rpm
Max Torque: 52.6 Nm / 38.8 ft-lb @ 6000 rpm
Transmission: 5 Speed
Final Drive: Chain
Gear Ratio: 1st: 2.571 2nd: 1.777 3rd: 1.380 4th: 1.125 5th: 0.961
Frame: Single downtube with double loop cradle of rectangular section
Front Suspension: 41 mm Telescopic hydraulic forks
Front Wheel Travel: 200 mm / 7.8 in
Rear Suspension: Pro-link monoshock
Rear Wheel Travel: 187 mm / 7.4 in
Front Brakes: Single 276 mm disc 2 piston caliper
Rear Brakes: Single 240 mm disc 1 piston caliper
Front Tyre: 90/90-21
Rear Tyre: 130/80-17
Dimensions: Length 2260 mm / 89.0 in Width 865 mm / 34.0 in Height 905 mm / 35.6 in
Wheelbase: 1505 mm / 59.2 in
Seat Height: 850 mm / 33.5 in
Ground Clearance: 195 mm / 7.7 in
Dry Weight: 183.0 kg / 404 lbs
Wet Weight: 202.0 kg / 445 lbs
Fuel Capacity: 18 Litres / 4.7 US gal
Consumption Average: 18.3 km/lit
Braking 60 - 0 / 100 - 0: 13.3 m / 42.1 m
Standing ¼ Mile: 13.4 sec / 152.8 km/h
Top Speed: 172.5 km/h
Related Links: Technical / xrv.org.uk / blackbears.ru

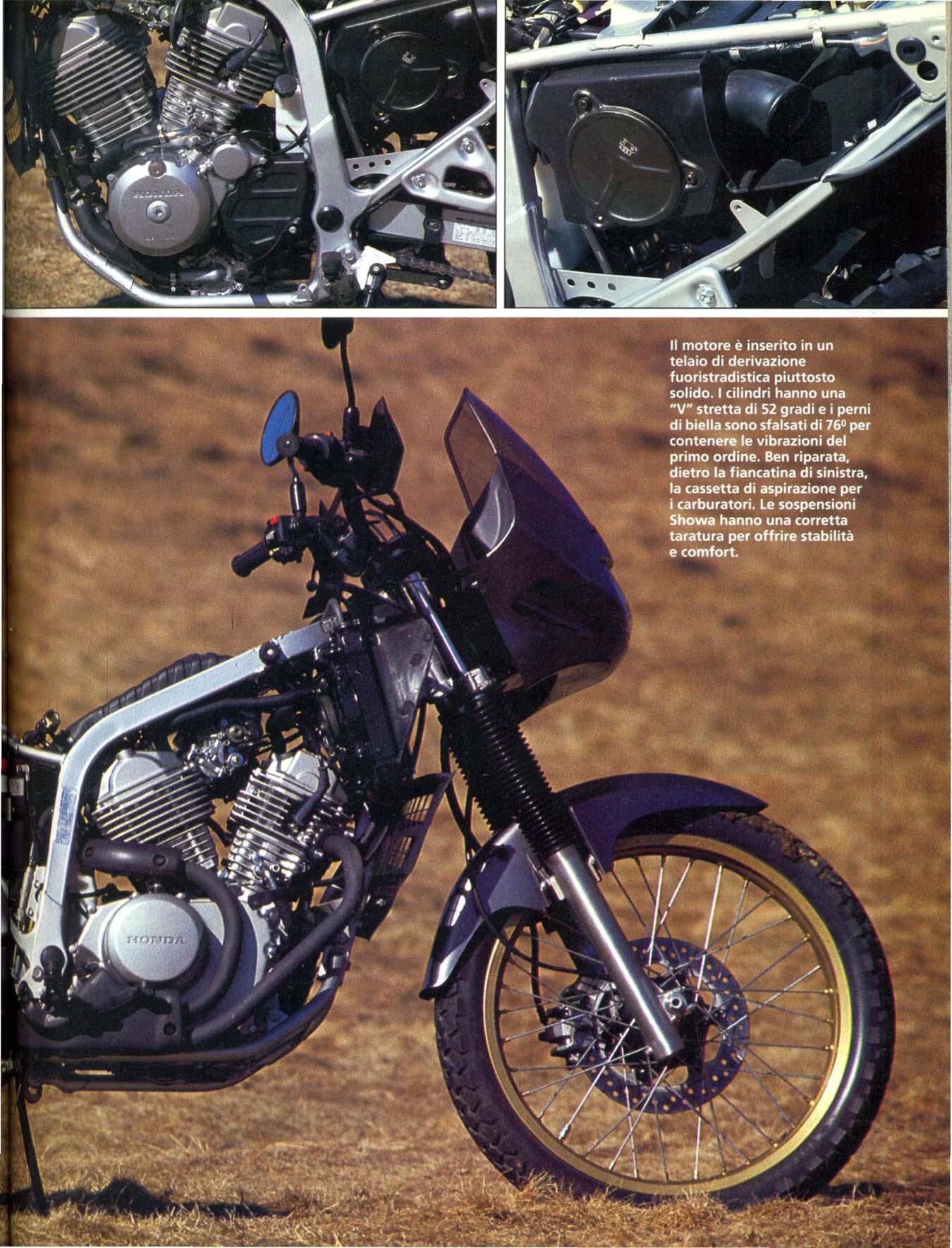

Road Test: Motociclismo 1994
