Honda XL 500S (1981) technical specifications

Honda XL 500S technical specifications

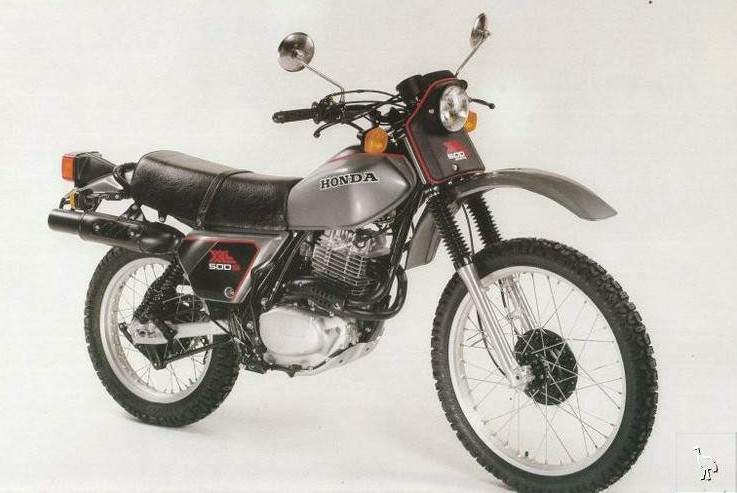

Honda XL 500S is produced in 1981. Engine is Four stroke, single cylinder, SOHC. 4 valve per cylinder, displacement 497 cc / 30.3 cu-in , produces power 32 hp @ 6500 rpm and 3.8 kgf-m @ 5000 rpm. Honda XL 500S top speed is 146.5 km/h. Honda XL 500S weighs 135 Kg / 297 lbs. Honda XL 500S has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XL 500S
Years: 1981
Engine: Four stroke, single cylinder, SOHC. 4 valve per cylinder
Capacity: 497 cc / 30.3 cu-in
Bore x Stroke: 89 x 80 mm
Cooling System: Air cooled
Compression Ratio: 8.6:1
Induction: Single 32mm keihin CV
Ignition: CDI
Starting: Kick
Max Power: 32 hp @ 6500 rpm
Max Torque: 3.8 kgf-m @ 5000 rpm
Transmission: 5 Speed
Final Drive: Chain
Front Suspension: Leading axle coil spring forks
Rear Suspension: Swing arm two dampers. adjustable for preload.
Front Brakes: 140mm Drum
Rear Brakes: 130mm Drum
Front Tyre: 3.00-23
Rear Tyre: 4.60-18
Wheelbase: 1420 mm / 55.9 in
Seat Height: 879 mm / 34.6 in
Dry-Weight: 135 Kg / 297 lbs
Fuel Capacity: 9.8 Litres / 2.6 gal
Standing ¼ Mile: 15.0 sec / 135.5 km/h
Top Speed: 146.5 km/h
