Honda XL 350R (1985) technical specifications

Honda XL 350R technical specifications

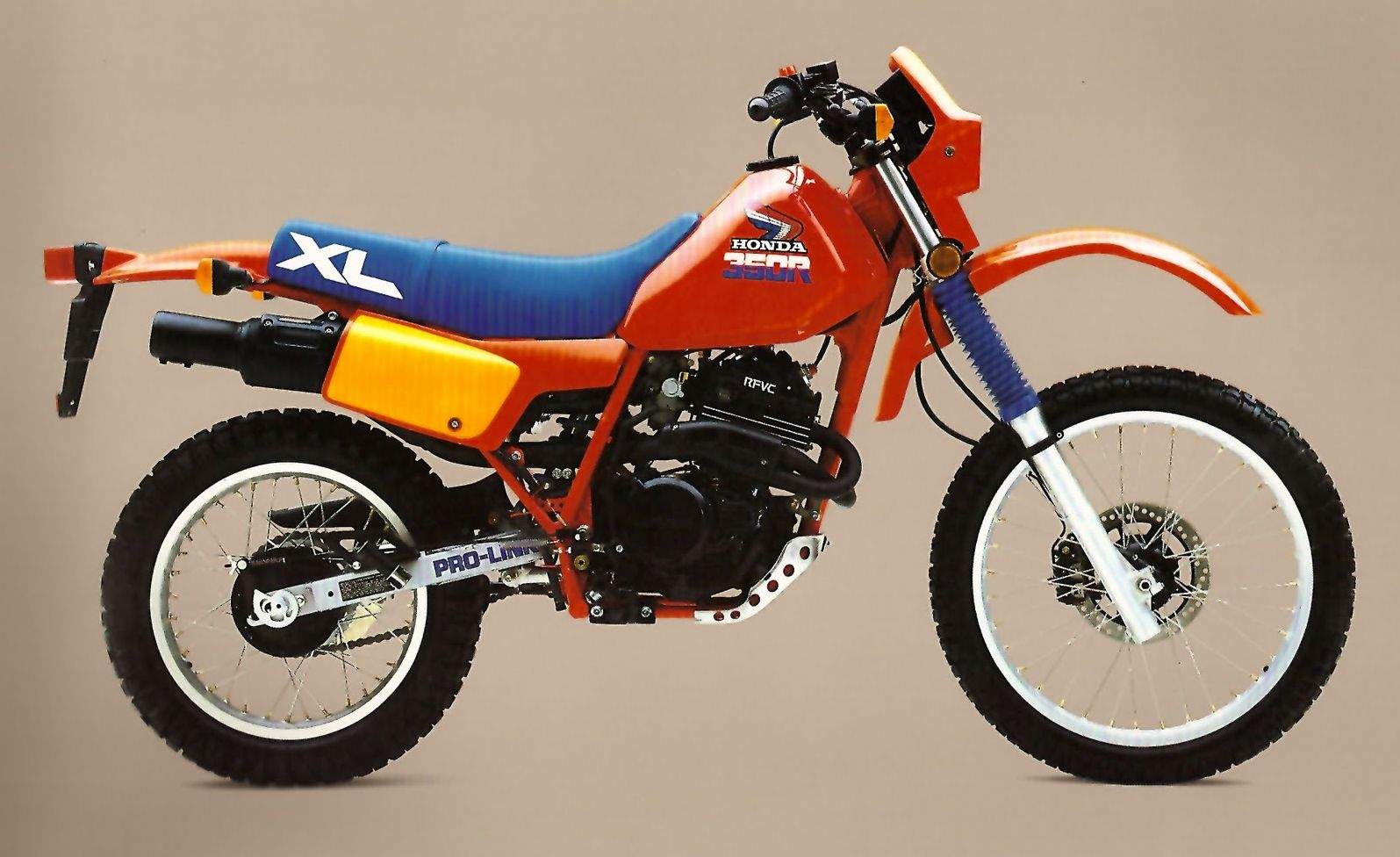

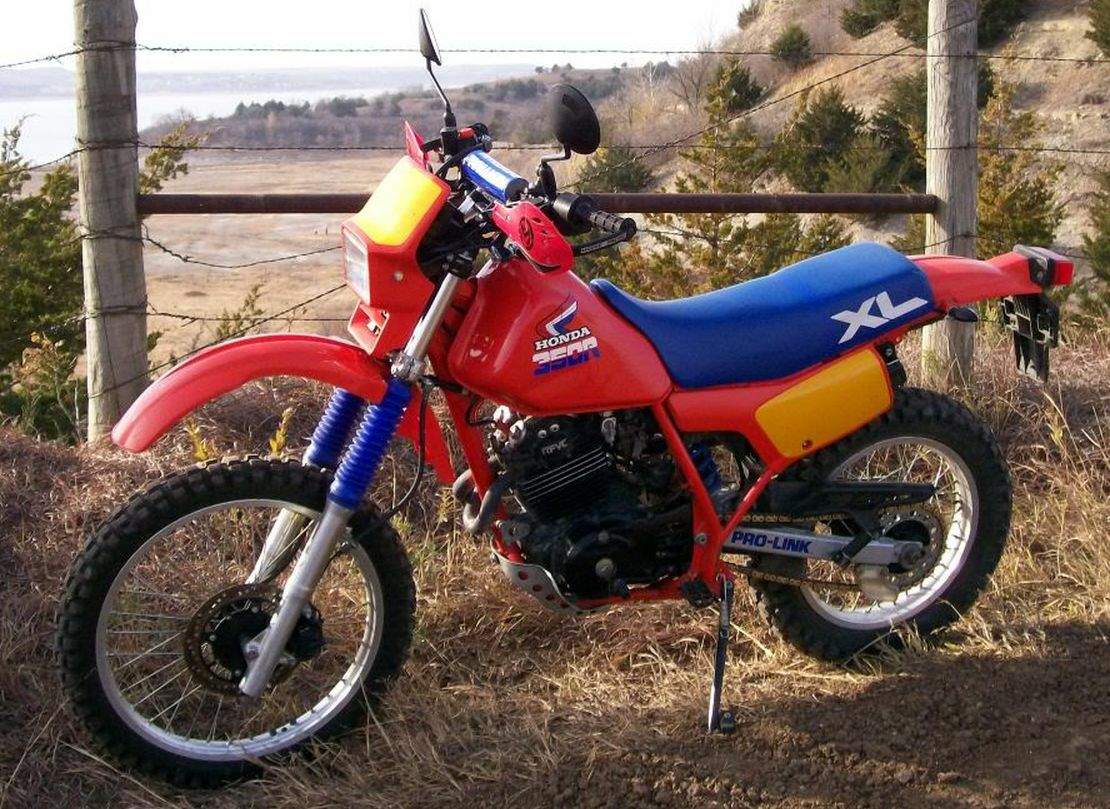

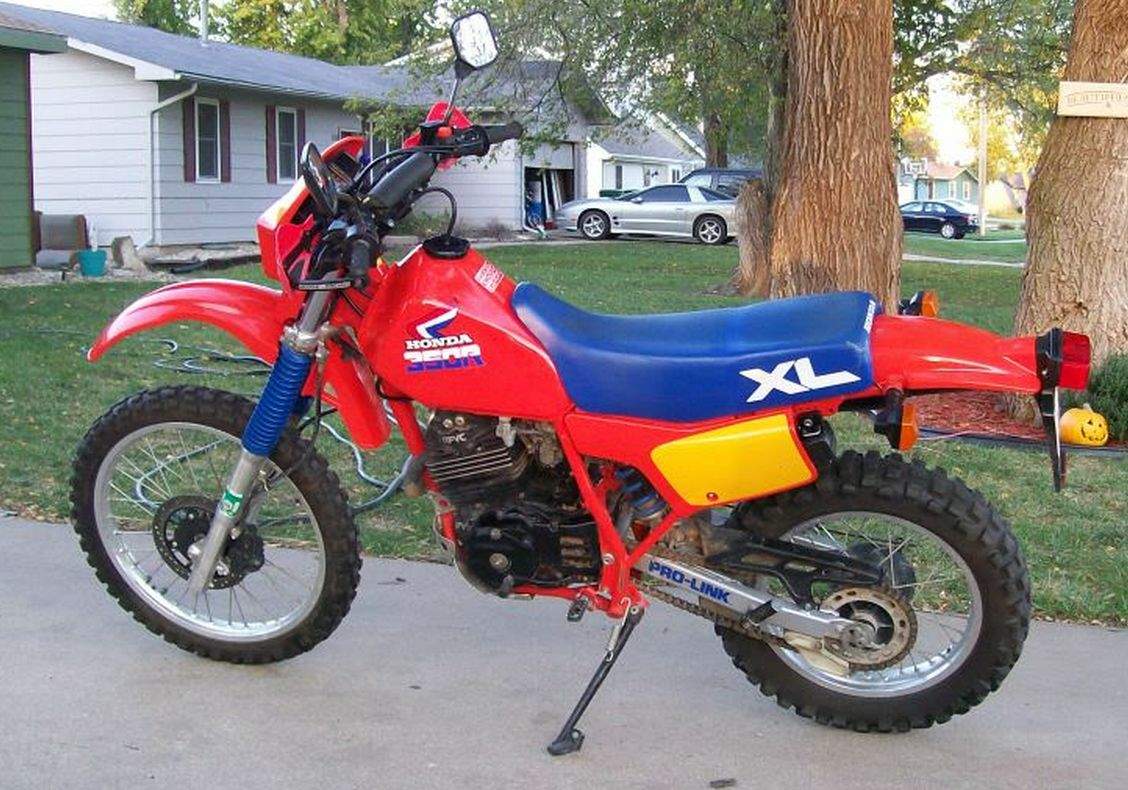

Honda XL 350R is produced in 1985. Engine is Four stroke, single cylinder, SOHC, 4 valve, RFVC radial valve, displacement 339 cc / 26.7 cu-in , produces power 22.4 hp / 16.7 KW @ 7500 and 28.3 Nm / 20.9 lb·ft @ 6500 rpm. Honda XL 350R top speed is 86 mph. Honda XL 350R wet weight is 137 kg / 302 lbs. Honda XL 350R has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: XL 350R
Years: 1985
Engine: Four stroke, single cylinder, SOHC, 4 valve, RFVC radial valve
Capacity: 339 cc / 26.7 cu-in
Bore x Stroke: 84 x 61.3 mm
Cooling System: Air cooled
Compression Ratio: 9.5;1
Lubrication: Wet sump
Induction: 2x 26mm Keihin carburetor
Ignition: CDI
Starting: Kick
Max Power: 22.4 hp / 16.7 KW @ 7500
Max Torque: 28.3 Nm / 20.9 lb·ft @ 6500 rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: 41mm Air adjustable forks
Front Wheel Travel: 280 mm / 11.0 in
Rear Suspension: Single gas shocks, fully adjustable
Rear Wheel Travel: 270 mm / 10.6 in
Front Brakes: Single disc
Rear Brakes: Drum
Front Tyre: 3.00 -21
Rear Tyre: 4.60 -17
Rake: 30.5°
Trail: 120 mm / 4.7 in
Dimensions: 860 mm / 33.9 in
Wheelbase: 1410 mm / 55.6 in
Seat Height: 920 mm / 36.2 in
Wet-Weight: 137 kg / 302 lbs
Fuel Capacity: 11 Litres / 2.9 US gal
Standing ¼ Mile: 14.9 sec / 83.6 mph
Consumption Average: 56 mpg
Top Speed: 86 mph
