Honda XL 250 (1972-73) technical specifications

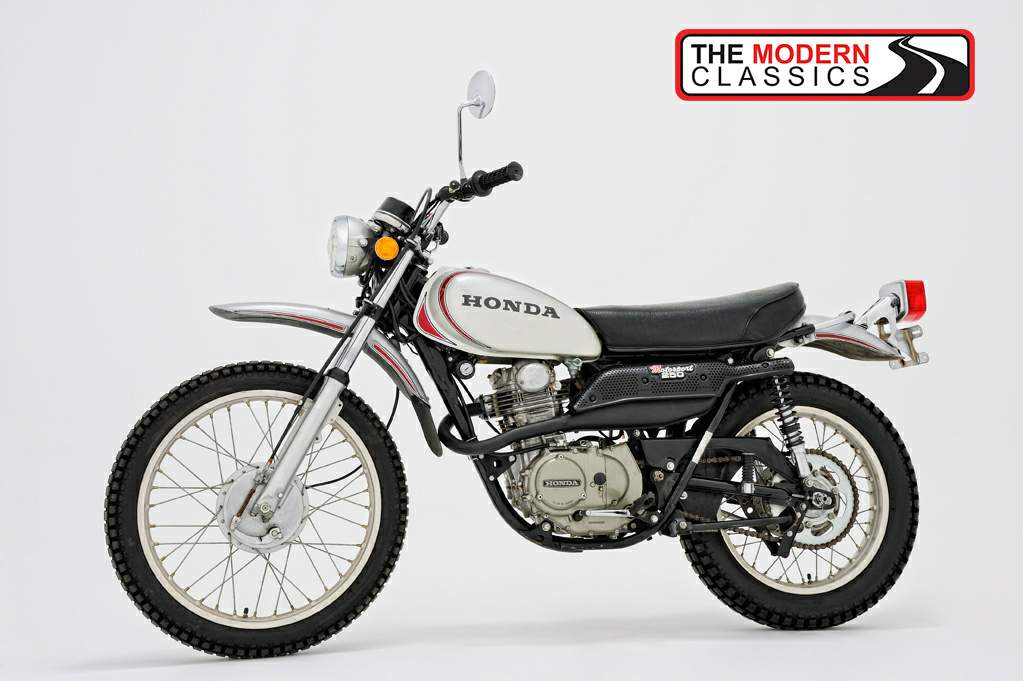

Honda XL 250 is produced in 1972-73. Engine is Four stroke, single cylinder, OHC, displacement 248 cc / 15.1 cu-in , produces power 23.4 hp 17.5 KW @ 8000 rpm and NA. Honda XL 250 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XL 250 |
| Years: | 1972-73 |
| Engine: | Four stroke, single cylinder, OHC |
| Capacity: | 248 cc / 15.1 cu-in |
| Bore x Stroke: | 74 X 57.8 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.1:1 |
| Induction: | Single 28mm Keihin carburettor |
| Ignition: | Battery and coil |
| Starting: | Kick |
| Max Power: | 23.4 hp 17.5 KW @ 8000 rpm |
| Max Torque: | NA |
| Clutch: | Multiple disc in oil bath |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Semi double cradle |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Swinging fork |
| Front Brakes: | 150 mm Drum |
| Rear Brakes: | 140 mm Drum |
| Front Tyre: | 2.75 -21 |
| Rear Tyre: | 4.00 -18 |
| Weight: | 135.6 kg / 299 lbs |
| Fuel Capacity: | 9.5 Litres / 1.7 US gal |
