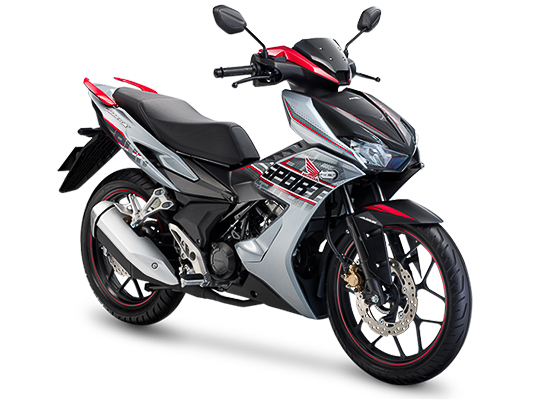

2020 Honda Winner X Sport ABS technical specifications

Honda Winner X Sport ABS technical specifications

Technical specifications

Model: Winner X Sport ABS
Years: 2020
Engine: Four stroke , single cylinder, SOHC,2-valve
Capacity: 149.1 cc / 9.0cu-in
Bore x Stroke: 57.3 x 57.8 mm
Cooling System: Liquid cooled
Compression Ratio: 11.3:1
Induction: PGM-FI with automaticenrichment
Ignition : Fully transistorisedignition
Battery: MF 12 V, 5.0 Ah
Starting: Electric & kick
Max Power: 15.7 hp / 11.6 kW @ 9000 rpm
Max Toque: 13.5 Nm / 9.9 lb-ft @ 6500 rpm
Clutch: Multiple wet with coil spring
Transmission : 6 Speed
Final Drive: Belt
Frame: Twin Tube Steel
Front Suspension: Telescopic forks
Rear Suspension: Swing arm with monoshock
Front Brakes: Single hydraulic disc
Rear Brakes: Single hydraulic disc
Front Tyre: 90 / 80-17 46P(tubeless)
Rear Tyre: 120 / 70-17 58P(tubeless)
Dimensions: Length  2025 mm / 79.7 inWidth     725 mm / 28.5 inHeight  1102 mm / 43.3 in
Wheelbase: 1284 mm / 50.9 in
Seat Height: 780 mm / 30.7 in
Ground Clearance: 150 mm / 50.9 in
Dry Weight: 119 kg / 262.3 lbs
Fuel Capacity : 4.5 Litres / 1.9 US gal
