Honda VT 750C Shadow Phantom (2020) technical specifications

Honda VT 750C Shadow Phantom technical specifications

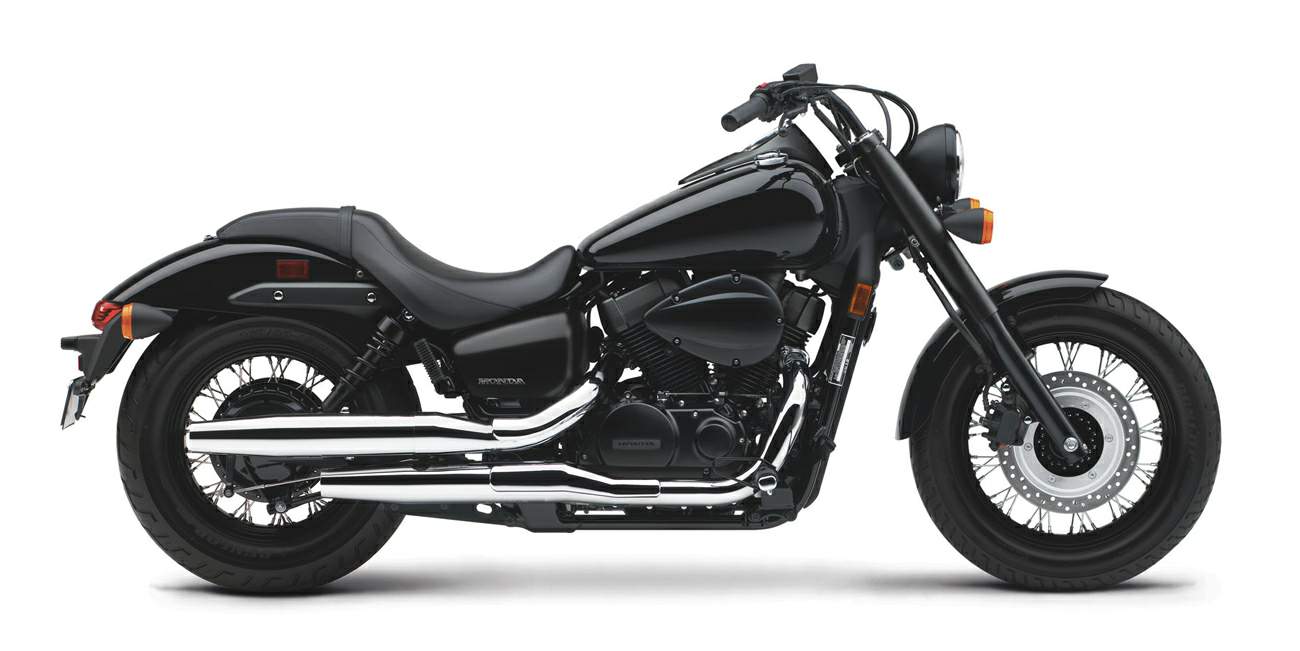

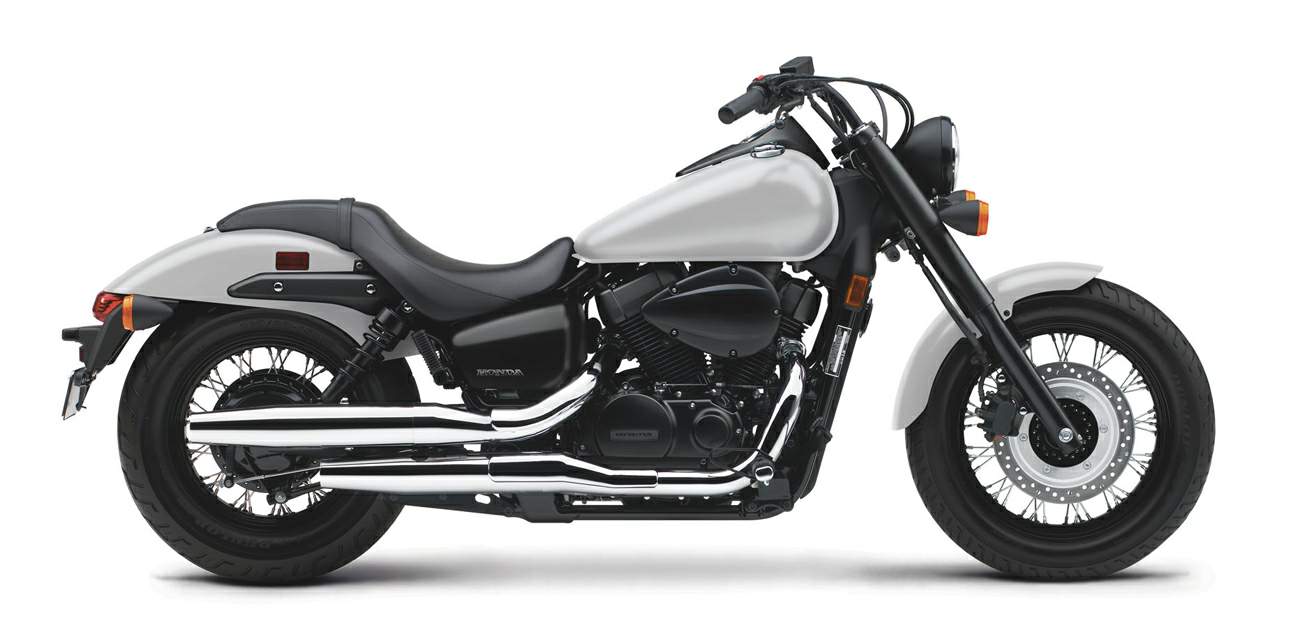

Honda VT 750C Shadow Phantom is produced in 2020. Engine is Four stroke, 52° V-twin, SOHC, 6 valve, displacement 745 cc / 45.5 cub in. , produces power 33.5 kW / 44.9 hp @ 5500 rpm and 65 Nm / 6.6 kgf-m / 47.9 lb-ft @ 3500 rpm. Honda VT 750C Shadow Phantom wet weight is 251 kg / 549 lb. Honda VT 750C Shadow Phantom has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: VT 750C Shadow Phantom
Years: 2020
Engine: Four stroke, 52° V-twin, SOHC, 6 valve
Capacity: 745 cc / 45.5 cub in.
Bore x Stroke: 79 x 76 mm
Compression Ratio: 9.6:1
Coooling System: Liquid cooled
Induction: PGM-FI electronic fuel injection with automatic choke, 34mm throttle body
Ignition: Digital 3-D mapping, two spark plugs per cylinder
Starting: Electric
Clutch: Wet, multiplate with coil springs
Max Power: 33.5 kW / 44.9 hp @ 5500 rpm
Max Torque: 65 Nm / 6.6 kgf-m / 47.9 lb-ft @ 3500 rpm
Transmission: Wide ratio 5 speed
Final Drive: Shaft
Gear Ratio: 1st 2.400 (36/15) / 2nd 1.550 (31/20) / 3rd 1.174 (27/23) / 4th 0.960 (24/25) / 5th 0.852:1 (23/27)
Front Suspension: 41mm telescopic fork
Front Wheel Travel: 117 mm / 4.6 in.
Rear Suspension: Dual conventional dampers with 5-step adjustable spring preload, 90mm wheel travel
Rear Wheel Travel: 90 mm / 3.5 in.
Front Brakes: Single 296 mm disc, 2 piston caliper
Rear Brakes: Single 180 mm drum
Front Tyre: 120/90-17
Rear Tyre: 160/80-15
Wheelbase: 1641 mm / 64.6 in.
Seat Height: 655 mm / 25.8 in
Wet-Weight: 251 kg / 549 lb
Fuel Capacity: 14 liters (including 3.5-litre reserve) / 3.7 US gal
Consumption Average: 4.2 L/100 km / 23.8 km/l / 56 US mpg
