Honda VT 750C Shadow Aero (2010-12) technical specifications

Honda VT 750C Shadow Aero technical specifications

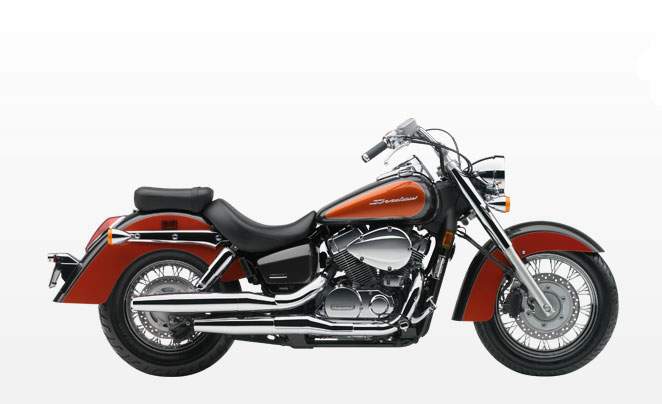

Honda VT 750C Shadow Aero is produced in 2010-12. Engine is Four stroke, 52°V-twin, SOHC. 3 valve per cylinder, displacement 745 cc / 45.7 cu-in , produces power 43 hp / 32.1 kW @ 5500 rpm and 60.5 Nm / 44 ft.-lb @ 3000 rpm. Honda VT 750C Shadow Aero wet weight is 250 kg / 553 lb. Honda VT 750C Shadow Aero has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: VT 750C Shadow Aero
Years: 2010-12
Engine: Four stroke, 52°V-twin, SOHC. 3 valve per cylinder
Capacity: 745 cc / 45.7 cu-in
Bore x Stroke: 79 x 76 mm
Cooling System: Liquid cooled
Compression Ratio: 9.6:1
Induction: PGM-FI electronic fuel injection with automatic choke, 34mm Throttle Bore
Ignition: Solid-state with electronic advance, two spark plugs per cylinder
Starting: Electric
Max Power: 43 hp / 32.1 kW @ 5500 rpm
Max Torque: 60.5 Nm / 44 ft.-lb @ 3000 rpm
Clutch: Wet, multiplate with coil springs
Transmission: 5 Speed
Final Drive: Shaft
Gear Ratio: 1st 2.400 (36/15) / 2nd 1.550 (31/20) / 3rd 1.174 (27/23) / 4th 0.960 (24/25) / 5th 0.852 (23/27)
Front Suspension: 41mm Telescopic fork.
Front Wheel Travel: 129.5 mm / 5.0 in
Rear Suspension: Dual shocks 5-way spring-preload adjustability
Rear Wheel Travel: 90 mm / 3.5 in
Front Brakes: Single 296 mm disc 2 piston caliper
Rear Brakes: 180 mm Drum
Front Tyre: 120/90 - 17
Rear Tyre: 160/80 –15
Wheelbase: 1640 mm (64.6 in.)
Seat Height: 658 mm / 25.9 in
Wet Weight: 250 kg / 553 lb
Fuel Capacity: 14 Litres / 3.7 US gal
