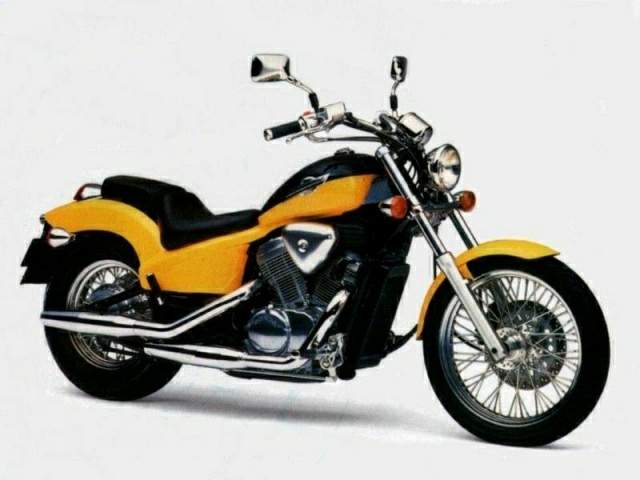

Honda VT 600C Shadow (1994-95) technical specifications

Honda VT 600C Shadow technical specifications

Honda VT 600C Shadow is produced in 1994-95. Engine is Four stroke, 52°V-twin, OHC, 3 valves per cylinder, displacement 583 cc / 35.5 cu-in , produces power 41 hp / 30.6 kW @ 6500 rpm and 51 Nm / 37.6 ft. lb @ 3500 rpm. Honda VT 600C Shadow top speed is 180 km/h / 112 mph. Honda VT 600C Shadow weighs 207 kg / 456.4 lbs. Honda VT 600C Shadow has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: VT 600C Shadow
Years: 1994-95
Engine: Four stroke, 52°V-twin, OHC, 3 valves per cylinder
Capacity: 583 cc / 35.5 cu-in
Bore x Stroke: 75 x 66 mm
Cooling System: Liquid cooled
Compression Ratio: 9.2;1
Induction: Single 34mm diaphragm-type CV
Ignition: CD with electronic advance, two spark plugs per cylinder
Starting: Electric
Max Power: 41 hp / 30.6 kW @ 6500 rpm
Max Torque: 51 Nm / 37.6 ft. lb @ 3500 rpm
Transmission: 4 Speed, Wide-ratio, (Brazil model 5 speed)
Final Drive: Chain
Front Suspension: Centre axle fork, 39mm tubes
Front Wheel Travel: 145 mm / 5.7 in
Rear Suspension: Single shock adjustable spring preload
Rear Wheel Travel: 90 mm / 3.5 in
Front Brakes: Single 296mm disc 2 piston caliper
Rear Brakes: 160mm drum
Front Tyre: 100/90-19
Rear Tyre: 170/80-15
Wheelbase: 1600 mm / 63 in
Seat Height: 690 mm / 27.2 in
Dry Weight: 207 kg / 456.4 lbs
Fuel Capacity: 11 Litres / 2.9 US gal
Consumption Average: 50 mpg
Braking 60 - 0 / 100 - 0: - / 127 ft
Standing ¼ Mile: 14.7 sec / 87 mpg
Top Speed: 180 km/h / 112 mph
