Honda VFR 800F V-Tec (2003) technical specifications

Honda VFR 800F V-Tec technical specifications

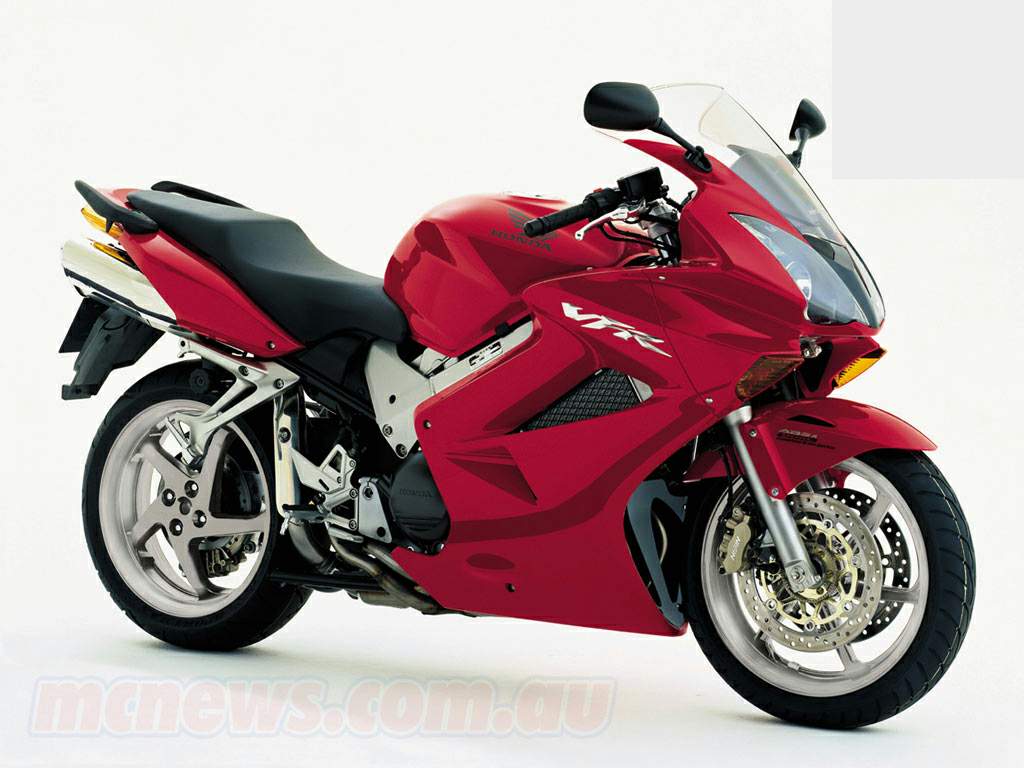

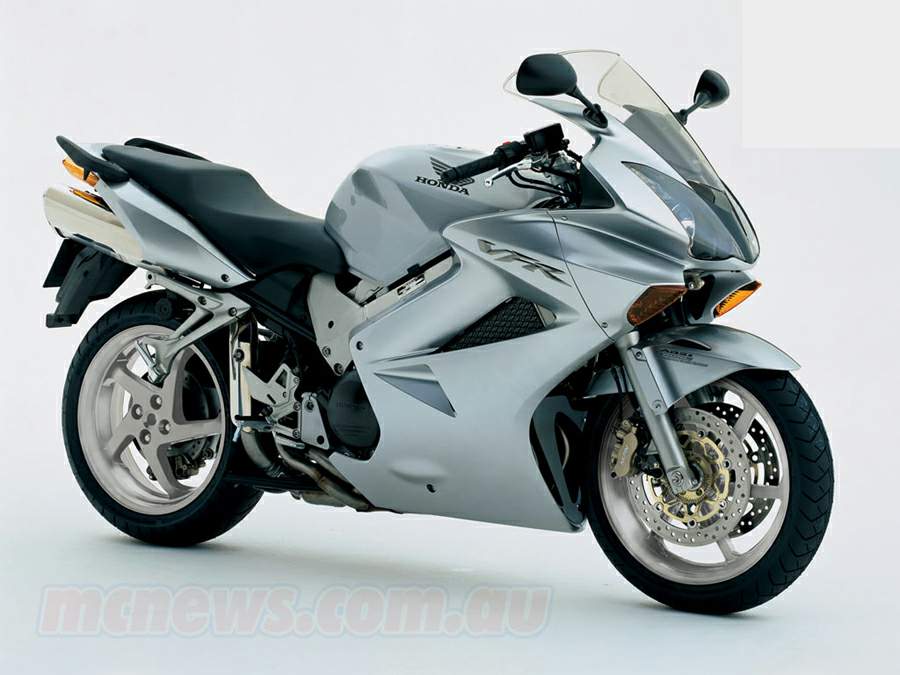

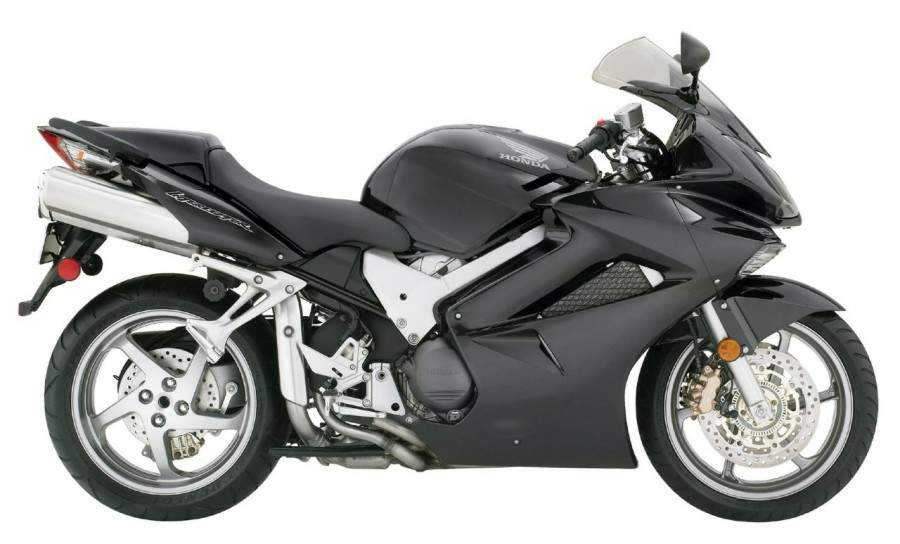

Honda VFR 800F V-Tec is produced in 2003. Engine is Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder., displacement 781.7 cc / 47.4 cu-in , produces power 110 hp / 81 kW @ 10500 rpm and 82 Nm / 60.5 lb-ft @ 8500 rpm. Honda VFR 800F V-Tec top speed is 239.8 km/h / 149 mph. Honda VFR 800F V-Tec weighs 208 kg / 458.6 lbs. Honda VFR 800F V-Tec has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: VFR 800F V-Tec
Years: 2003
Engine: Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder.
Capacity: 781.7 cc / 47.4 cu-in
Bore x Stroke: 72 x 48 mm
Cooling System: Liquid cooled
Compression Ratio: 11.6 1
Lubrication: Wet sump
Engine Oil: Semi-Synthetic, 10W/40
Induction: PGM-FI electronic fuel injection
Ignition: PGM-FI electronic fuel injection
Spark Plug: NGK, CR9EH-9
Starting: Electric
Max Power: 110 hp / 81 kW @ 10500 rpm
Max Power Rear Tyre: 101.6 hp @ 9600 rpm
Max Torque: 82 Nm / 60.5 lb-ft @ 8500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: #530 O-ring-sealed chain
Frame: Aluminium, twin spar
Front Suspension: 41mm H.M.A.S. cartridge-type telescopic fork with preload adjustable damper,
Front Wheel Travel: 100 mm / 4.2 in
Rear Suspension: Pro arm mono arm system incorporating stepless rebound-adjustable gas-charged H.M.A.S. damper with pro-link,
Rear Wheel Travel: 120 mm / 4.7 in
Front Brakes: 2x 296mm discs 3 piston calipers
Rear Brakes: Single 256mm disc 3 piston caliper
Front Wheel: 3.5 x 17 in.
Rear Wheel: 5.5 x 17 in.
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Rake: 25.5°
Trail: 100 mm / 3.9 in
Dimensions: Length 2,120 mm / 83 in Width 735 mm / 28.9 in Height 1,195 mm / 47.0 in
Wheelbase: 1440 mm / 56.7 in
Seat Height: 805 mm / 31.7 in
Dry Weight: 208 kg / 458.6 lbs
Fuel Capacity: 20.8 Litres / 5.5 gal
Consumption average: 18.0 km/lot
Braking 60 - 0 / 100 - 0: 13.0 m / 37.9 m
Standing ¼ Mile: 11.4 sec
Top Speed: 239.8 km/h / 149 mph
