Honda VF 400F Integra (1984) technical specifications

Honda VF 400F Integra technical specifications

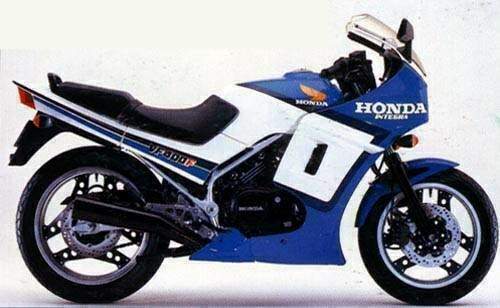

Honda VF 400F Integra is produced in 1984. Engine is Four stroke, V-four, displacement 399 cc / 24.3 cu-in , produces power 55.5 hp / 40.5 kW @ 12500 rpm and 35.5 Nm / 26.8 ft-lb @ 10500 rpm. Honda VF 400F Integra weighs 175 kg / 381.4 lbs. Honda VF 400F Integra has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VF 400F Integra
Years: 1984
Engine: Four stroke, V-four
Capacity: 399 cc / 24.3 cu-in
Bore x Stroke: 55 x 42 mm
Cooling System: Liquid cooled
Compression Ratio: 11.0:1
Induction: VD40
Ignition: CDI, Full transistor
Starting: Electric
Max Power: 55.5 hp / 40.5 kW @ 12500 rpm
Max Torque: 35.5 Nm / 26.8 ft-lb @ 10500 rpm
Clutch: Multiple plate coil springs
Transmission: 6 Speed
Final Drive: Chain
Gear Ratio: 1st 2.733, 2nd 1.850, 3th 1.478, 4th 1.240, 5th 1.074, 6th 0.931
Frame: Double cradle
Front Suspension: Telescopic, cylindrical air cushion combined use
Rear Suspension: Swing arm, cylindrical air cushion combined use
Front Brakes: 2x discs
Rear Brakes: Single disc
Rake: 26°
Trail: 91 mm / 3.6 in
Front Tyre: 100/90-16
Rear Tyre: 110/90-18
Dimensions: Length 2060 mm / 81.1 in Width 750 mm / 29.5 in Height 1160 mm / 45.7 in
Wheelbase: 1415 mm / 55.7 in
Seat Heigh: 780 mm / 30.7 in
Ground Clearance: 160 mm / 6.3 in
Dry Weight: 175 kg / 381.4 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
