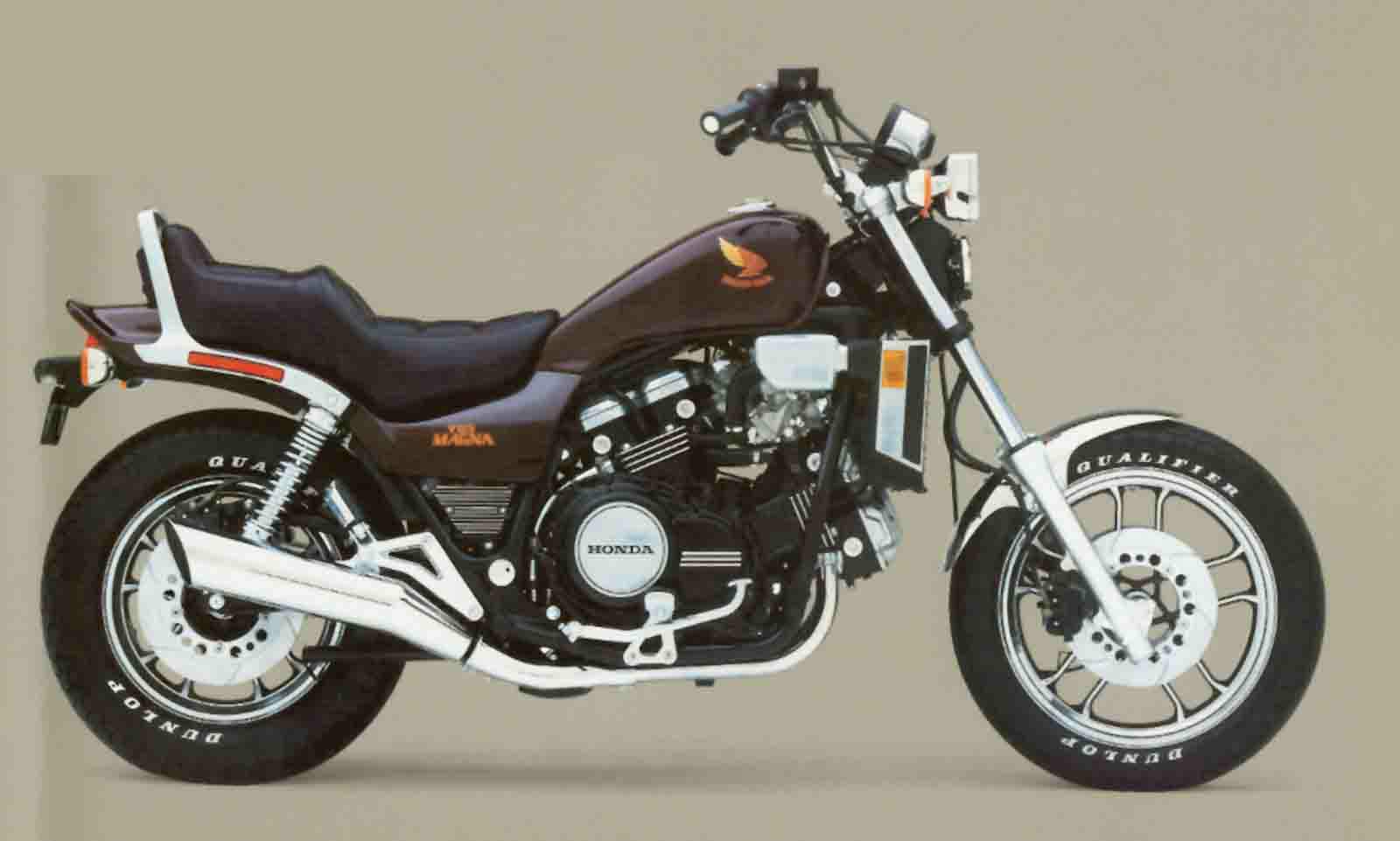

Honda VF 1100C Magna V65 (1983-84) technical specifications

Honda VF 1100C Magna V65 technical specifications

Honda VF 1100C Magna V65 is produced in 1983-84. Engine is Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder, displacement 1098 cc / 66.9cu-in , produces power 116 hp / 84.7 kW @ 7500 rpm and 94 Nm @ 7500 rpm. Honda VF 1100C Magna V65 weighs 246 kg / 545 lbs. Honda VF 1100C Magna V65 has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VF 1100C Magna V65
Years: 1983-84
Engine: Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder
Capacity: 1098 cc / 66.9cu-in
Bore x Stroke: 79.5 x 55.3 mm
Cooling System: Liquid cooled
Compression Ratio: 10.5:1
Induction: 4x 36mm Keihin carburetors
Exhaust: Four-into-two
Air Filtration: Paper element, disposable
Oil Filtration: Paper element, disposable
Oil Capacity: 3.7 qts
Ignition: Digital transistorized
Battery: 12V 18AH
Starting: Electric
Max Power: 116 hp / 84.7 kW @ 7500 rpm
Max Power Rear Tyre: 100 hp / 72.9 kW @ 9500 rpm
Max Torque: 94 Nm @ 7500 rpm
Transmission: 6 Speed
Final Drive: Shaft
Primary Drive: Straight-cut gear; 70/41; 1.71
Secondary Drive: Helical-bevel gear; 18/17; 1.06
Gear Ratio: 1st 39/17, 1.71 2nd 34/21.1.62 3rd 31/24,1.29 4th 29/27, 1.07 5th 26/29, 0.90 6th 24/32, 0.75
Frame: Double-down tube, full-cradle frame; tube/box-section steel swing arm
Front Suspension: Leading-axle, air-assisted fork with 41mm forks
Front Wheel Travel: 150 mm / 5.9 in
Rear Suspension: Twin shock adjustable for spring preload rebound and compression damping
Rear Wheel Travel: 105 mm / 4.1 in
Front Brakes: 2x 270mm disc 2 piston calipers
Rear Brakes: Single 282mm disc 2-piston caliper
Front Wheel: Cast, 2.50 x 18
Rear Wheel: Cast, 3.00 x 16
Front Tyre: 110/90 -18
Rear Tyre: 140/80 -16
Rake: 30.3°
Trail: 105 mm / 4.1 in
Wheelbase: 1595 mm / 62.8 in
Seat Height: 803 mm / 31.6 in
Ground Clearance: 150 mm / 5.9 in
Dry Weight: 246 kg / 545 lbs
Wet Weight: 267.2 kg / 589 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
Consumption average: 15.3 km/lit
Standing ¼ Mile: 10.75 sec / 126 mp/h
