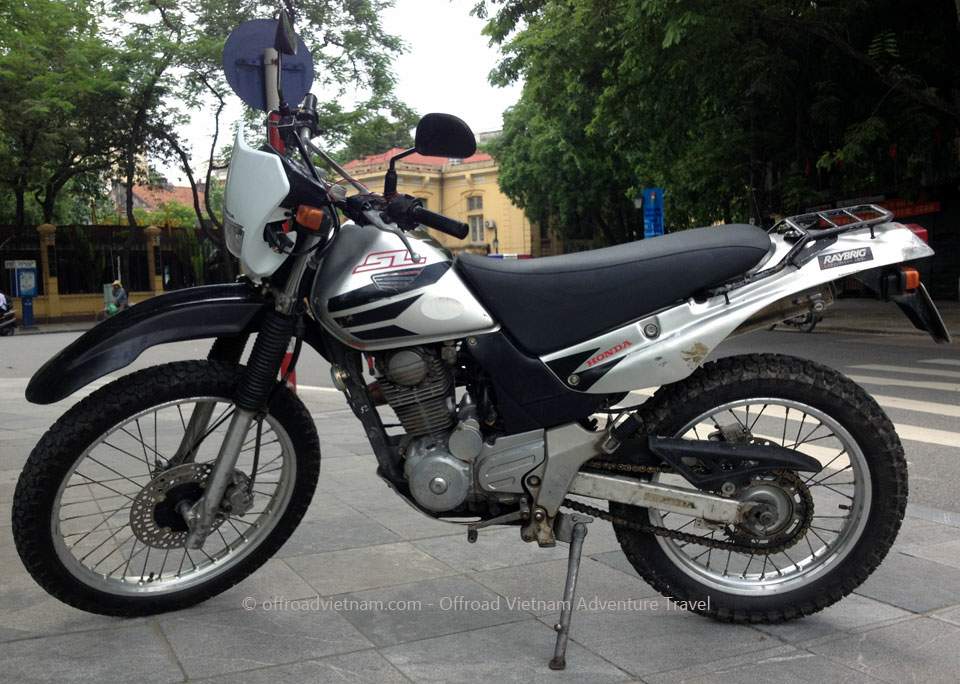

Technical specifications
|
| Model: |
SL 230 |
| Years: |
2003-13 |
|
Engine:
|
Four stroke, single cylinder, OHC
|
|
Capacity:
|
223 cc / 13.6 cu-in
|
|
Bore x Stroke:
|
65.5 x 66.2 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.0:1
|
|
Induction:
|
|
|
Ignition:
|
CDI
|
|
Starting:
|
|
|
Max Power:
|
20 hp / 14.6 kW @ 7500 rpm
|
|
Max Torque:
|
21 Nm / 15.5 lb-ft @ 6000 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
|
|
Rear Suspension:
|
|
|
Front Brakes:
|
Single disc
|
|
Rear Brakes:
|
Single disc
|
|
Front Tyre:
|
2.75-21
|
|
Rear Tyre:
|
120/80-18
|
|
Wheelbase:
|
1340 mm / 52.8 in
|
|
Seat Height:
|
805 mm / 31.7 in
|
|
Ground Clearance:
|
255 mm / 10 in
|
|
Dry Weight:
|
106.0 kg / 233.7 lbs
|
|
Fuel Capacity:
|
10 Litres / 4.6 gal
|
