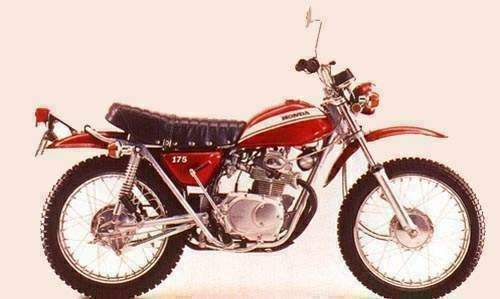

1970 Honda SL 175 technical specifications
Technical specifications
|
|
|---|---|
| Model: | SL 175 |
| Years: | 1970-72 |
| Engine: | Four stroke, twin cylinder. OHC, 2 valve per cylinder |
| Capacity: | 175 cc / 10.6 cu-in |
| Bore x Stroke: | 52 х 41 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.0:1 |
| Lubrication: | Wet sump |
| Induction: | Keihin Carburetor |
| Ignition: | Points and Condensor |
| Starting: | Kick |
| Max Power: | NA |
| Max Torque: | NA |
| Clutch: | Wet plate |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | |
| Rear Suspension: | Dual shocks |
| Front Brakes: | Drum |
| Rear Brakes: | Drum |
| Front Tyre: | 2.75-21 |
| Rear Tyre: | 3.25-18 |
| Wheelbase: | 1326 mm / 52.2 in |
| Wet Weight: | 113 kg / 249.2 lbs |
| Fuel Capacity: | 9.08 Litres / 2.40 gal |
