Honda SH Mode 125 (2021) technical specifications

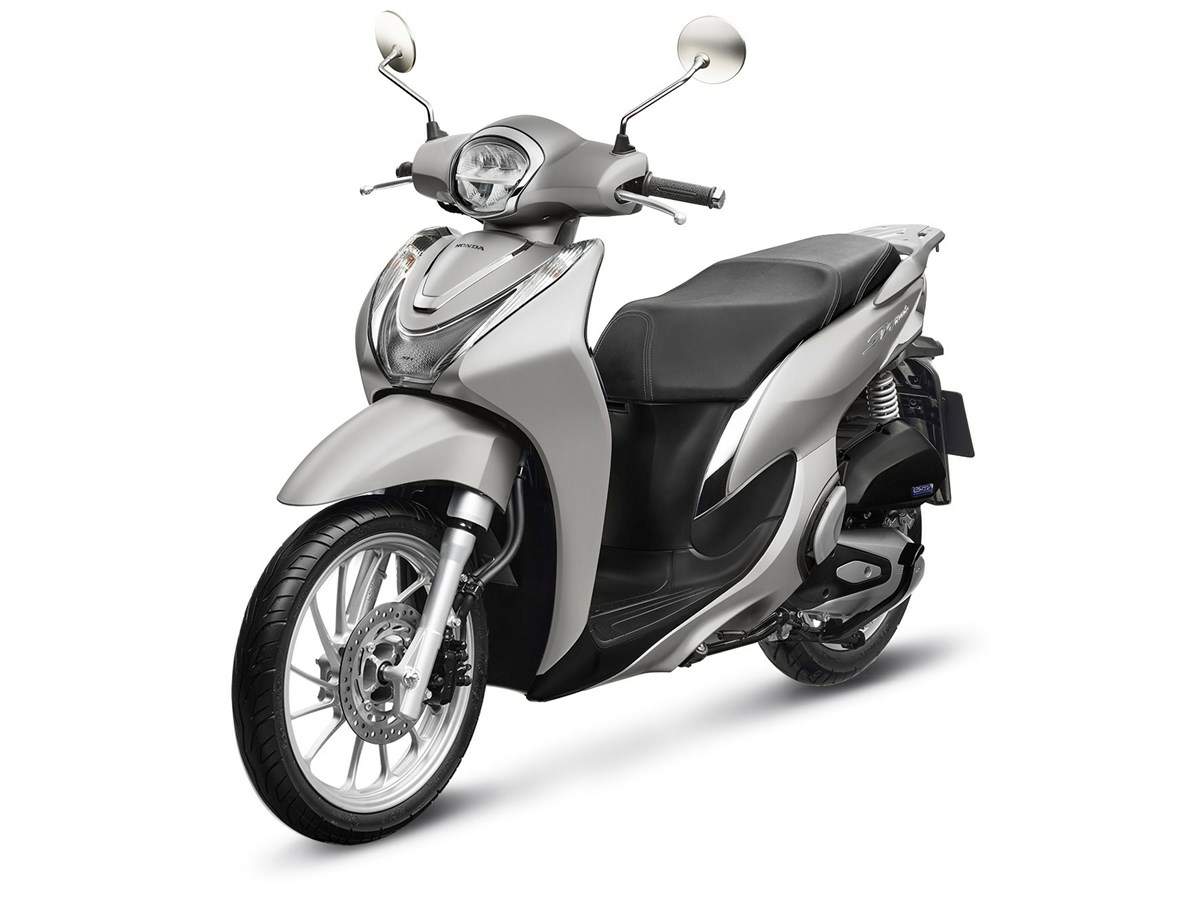

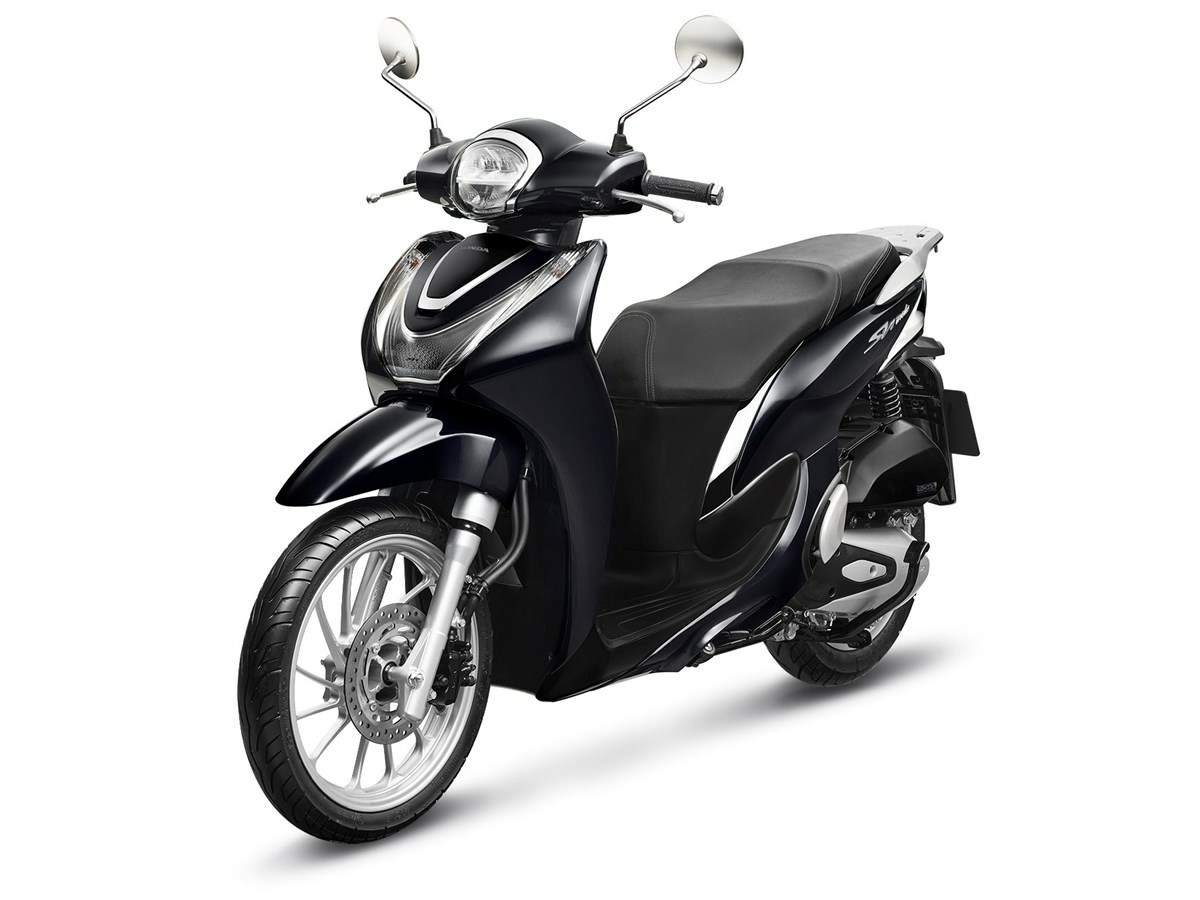

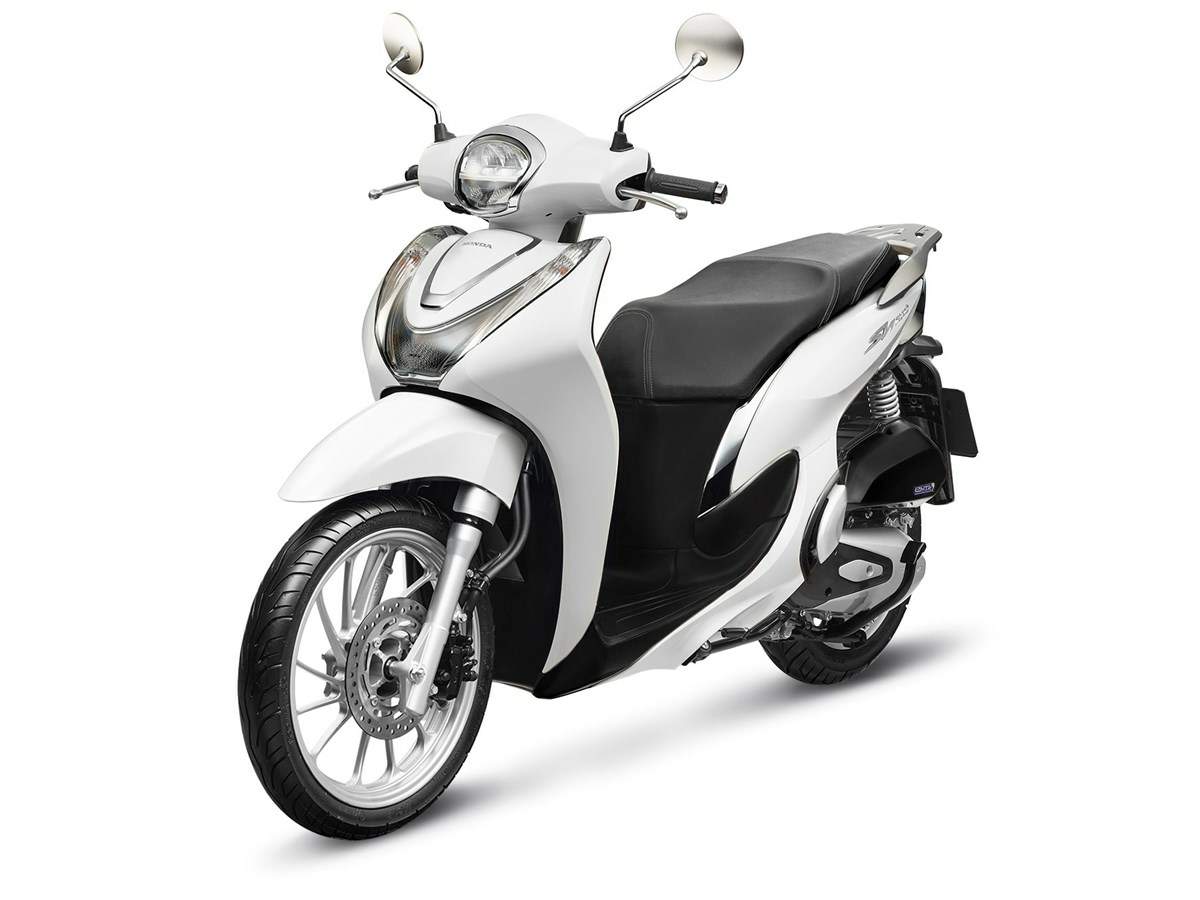

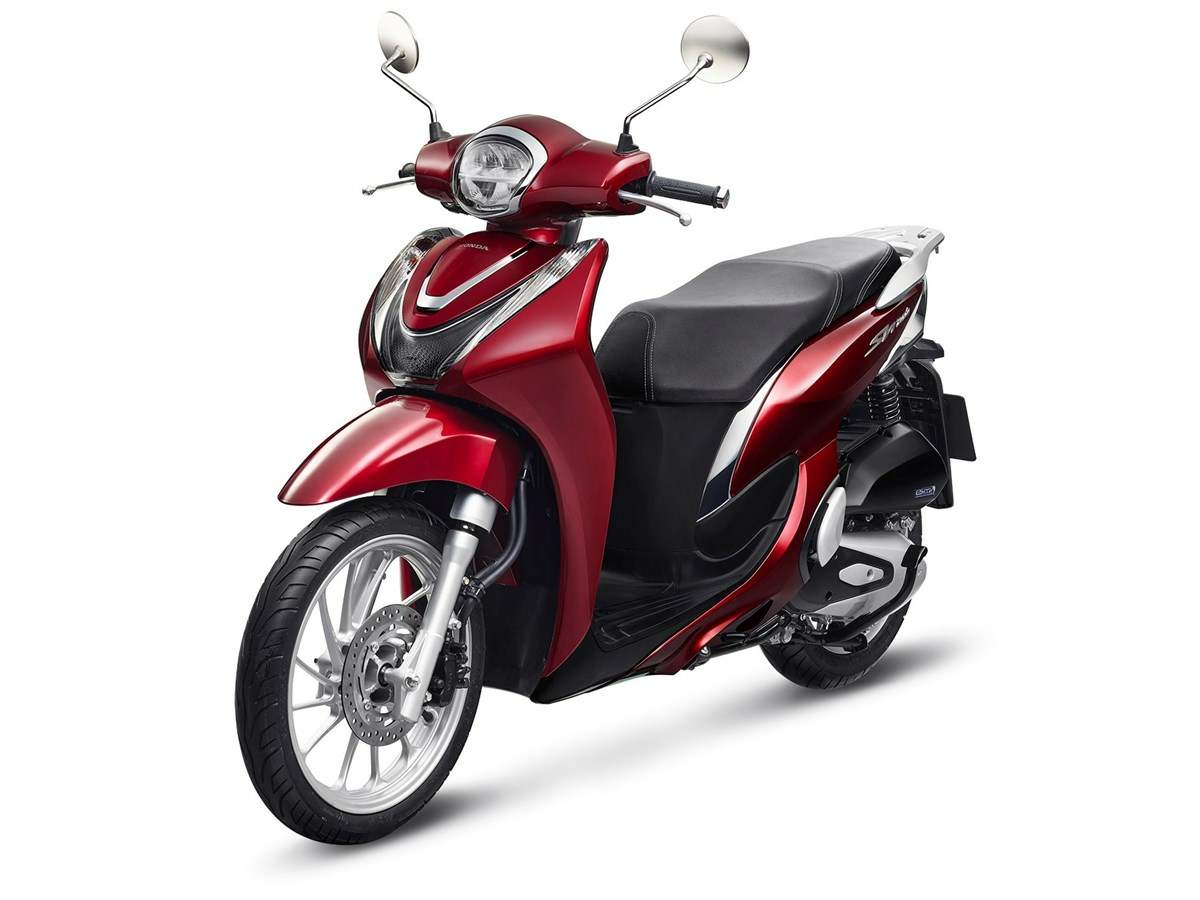

Honda SH Mode 125 is produced in 2021. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 125 cc / 7.6 cu-in , produces power 8.4 kW @ 8500 rpm and 12.1 Nm @ 5000 rpm. Honda SH Mode 125 wet weight is 118 kg / 160 lbs. Honda SH Mode 125 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	SH Mode 125
Years:	2021
Engine:	Four stroke, single cylinder, SOHC, 4 valves
Capacity:	125 cc / 7.6 cu-in
Bore x Stroke:	53.5 x 55.5 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.5:1
Exhaust:	1-into-1
Emission:	EURO5
Induction:	PGM-FI electronic fuel injection
Ignition:	Fully transistorised ignition
Battery:	12V/7AH
Starting:	Electric
Max Power:	8.4 kW @ 8500 rpm
Max Torque:	12.1 Nm @ 5000 rpm
Clutch:	Automatic, centrifugal
Transmission:	CVT
Final Drive:	V-Belt
Frame:	Tubular steel underbone
Front Suspension:	33mm Telescopic fork
Front Wheel Travel:	89 mm / 3.5 in
Rear Suspension:	Dual-damper unit swing arm, 5 stage adjustment
Rear Wheel Travel:	75 mm / 2.9 in
Brakes:	Front the 220mm hydraulic disc brake links to a rear 130mm drum via CBS
Front Rim:	16M/C x MT2.50
Rear Rim:	14M/C x MT2.75
Front Tyre:	80/90-16
Rear Tyre:	100/90-14
Rake:	26°
Trail:	69.5 mm / 2.7 in
Dimensions:	Length 1950 mm / 76.7 in Width 670 mm / 26.3 in Height 1100 mm / 43.3 in
Wheelbase:	1305 mm / 51.3 in
Seat Height:	765mm / 30.1 in
Ground Clearance:	150 mm / 5.9 in
Wet Weight:	118 kg / 160 lbs
Fuel Capacity:	5.5 Litres / 1.45 US gal
