Honda SH 350i (2021) technical specifications

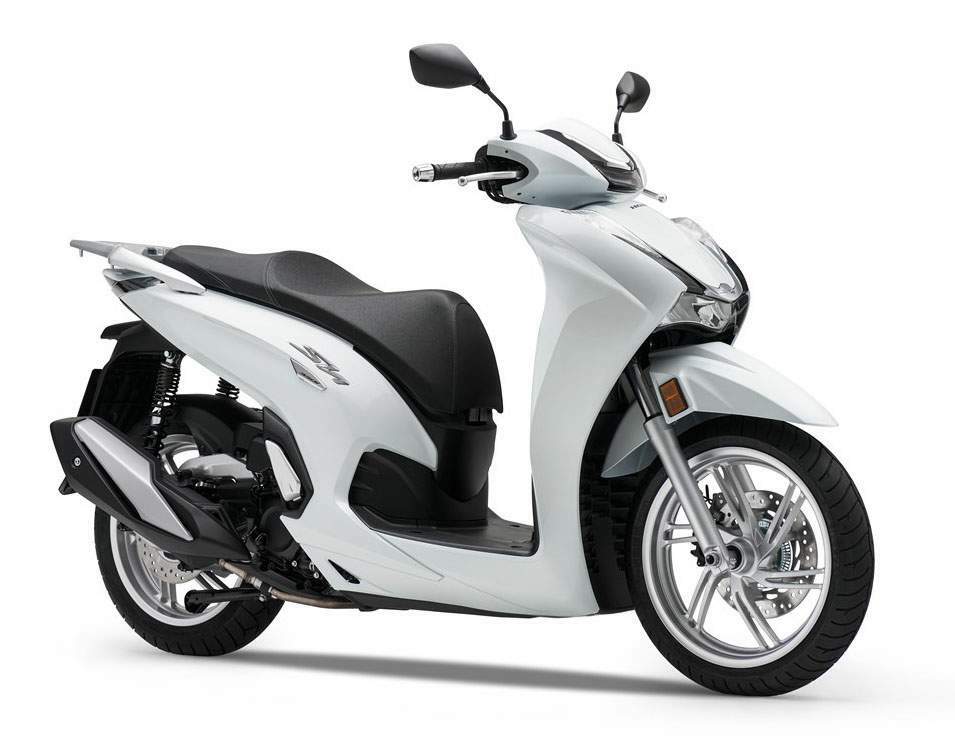

Honda SH 350i technical specifications

Honda SH 350i is produced in 2021. Engine is Four stroke, single cylinder, SOHC, 4 valves, displacement 330 cc / 20.1 cu-in , produces power 29 hp / 21.6 kW @ 7500 rpm and 32 Nm / 23.6 lb-ft @ 5250 rpm. Honda SH 350i wet weight is 174 kg / 383.6 lbs. Honda SH 350i has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: SH 350i
Years: 2021
Engine: Four stroke, single cylinder, SOHC, 4 valves
Capacity: 330 cc / 20.1 cu-in
Bore x Stroke: 77 x 70.7 mm
Compression Ratio: 10.5:1
Cooling System: Liquid-cooled
Emission: EURO5
Induction: PGM-FI electronic fuel injection
Starting: Electric
Max Power: 29 hp / 21.6 kW @ 7500 rpm
Max Torque: 32 Nm / 23.6 lb-ft @ 5250 rpm
Transmission: V-Matic
Final Drive: V-Belt
Frame: Tubular Steel Underbone
Front Suspension: 35mm telescopic fork
Rear Suspension: Dual-damper unit swingarm
Front Brakes: Single 256mm disc with two piston caliper
Rear Brakes: Single 256mm disc with single piston caliper
ABS System: 2 channel ABS
Wheels: 6-spoke cast aluminium
Front Rim: 16 x MT2.75 U-section
Rear Rim: 16 x MT2.75 U-section
Front Tyre: 110/70-16
Rear Tyre: 130/70-16
Rake: 27.5°
Trail: 99 mm / 3.9 in
Dimensions: Length: 2160 mm / 85 in Width: 742 mm / 29.2 in Height: 1161 mm / 45.7 in
Wheelbase: 1452 mm / 57.1 in
Seat Height: 805 mm / 31.6 in
Ground Clearance: 157.8 mm / 6,2 in
Wet Weight: 174 kg / 383.6 lbs
Fuel Capacity: 9.1 Litres / 2.4 US gal
Instruments: LCD with Speedometer, fuel gauge and temperature gauge, pointer-type, clock, two trip meters, fuel consumption gauge, Honda SMART Key indicator
