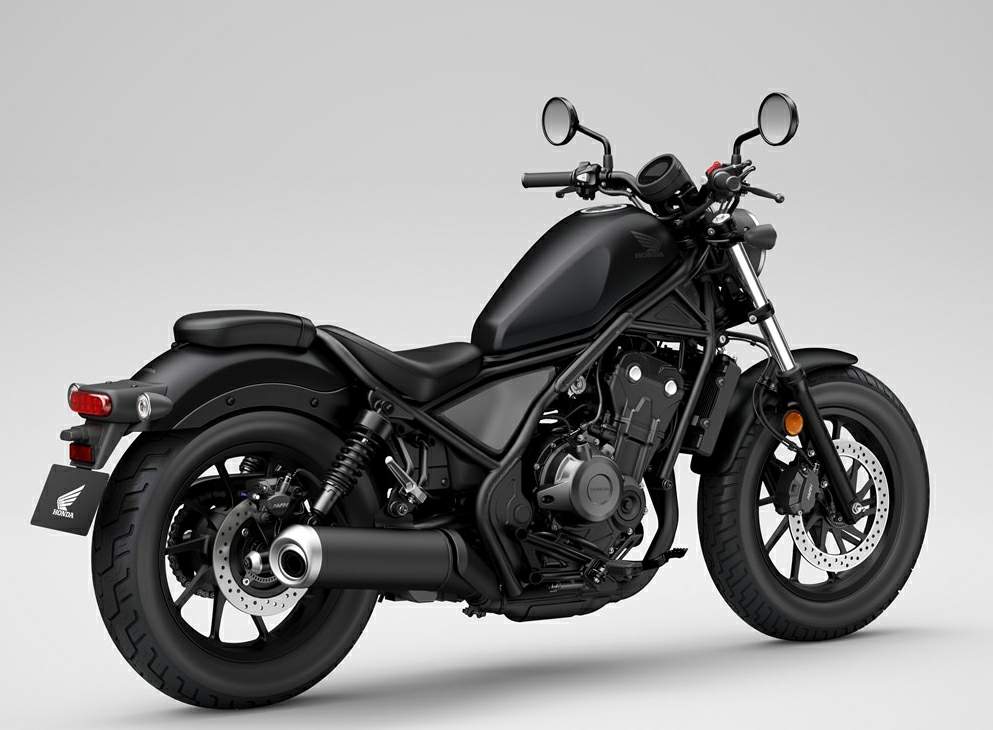

Honda Rebel CMX 500 / SE (2025) technical specifications

Honda Rebel CMX 500 / SE is produced in 2025. Engine is Four stroke, parallel-twin cylinder, DOHC; 4 valves per cylinder, displacement 471 cc / 28.7 cu-in , produces power 46.9 hp / 34.3 kW @ 8500 rpm and 43.3 Nm / 31.8 lb-ft @ 6000 rpm. Honda Rebel CMX 500 / SE wet weight is 191 kg / 421 lbs. Honda Rebel CMX 500 / SE has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Rebel CMX 500 / SE
Years:	2025
Engine:	Four stroke, parallel-twin cylinder, DOHC; 4 valves per cylinder
Capacity:	471 cc / 28.7 cu-in
Bore x Stroke:	67 x 66.8mm
Cooling System:	Liquid-cooled
Compression Ratio:	10.7:1
Induction:	PGM-FI
Ignition:	Computer-controlled digital transistorized w/ electronic advance
Starting:	Electric
Max Power:	46.9 hp / 34.3 kW @ 8500 rpm
Max Torque:	43.3 Nm / 31.8 lb-ft @ 6000 rpm
Clutch:	Wet multiplate, assist and slipper clutch
Transmission:	6 Speed
Final Drive:	Chain
Frame:	Diamond steel
Front Suspension:	41mm Telescopic fork
Front Wheel Travel:	121 mm / 4.8 in
Rear Suspension:	Dual Showa shocks with five-position spring preload adjustment
Rear Wheel Travel:	95 mm / 3.8 in
Front Brakes:	Single 296mm with Nissin axial-mount two piston calipers
Rear Brakes:	Single 240mm hydraulic disc with single piston caliper
ABS:	Two-channel
Front Wheel:	3.00MT x 16M/C
Rear Wheel:	3.50MT x 16M/C
Front Tyre:	130/90-16M/C (67H)
Rear Tyre:	150/80-16M/C (71H)
Rake:	28?
Trail:	110 mm / 4.3 in
Dimensions:	Length 2205 mm / 86.8 in Width: 810mm / 31.9 in Height 1090 mm / 42.9 in
Wheelbase:	1490 mm / 58.7 in
Seat Height:	690 mm / 27.2 in
Ground Clearance:	137 mm / 5.4 in
Wet Weight:	191 kg / 421 lbs
Fuel Capacity:	11.2 Litres / 2.95 US gal
