Honda Rebel 300 / ABS (2017-18) technical specifications

Honda Rebel 300 / ABS technical specifications

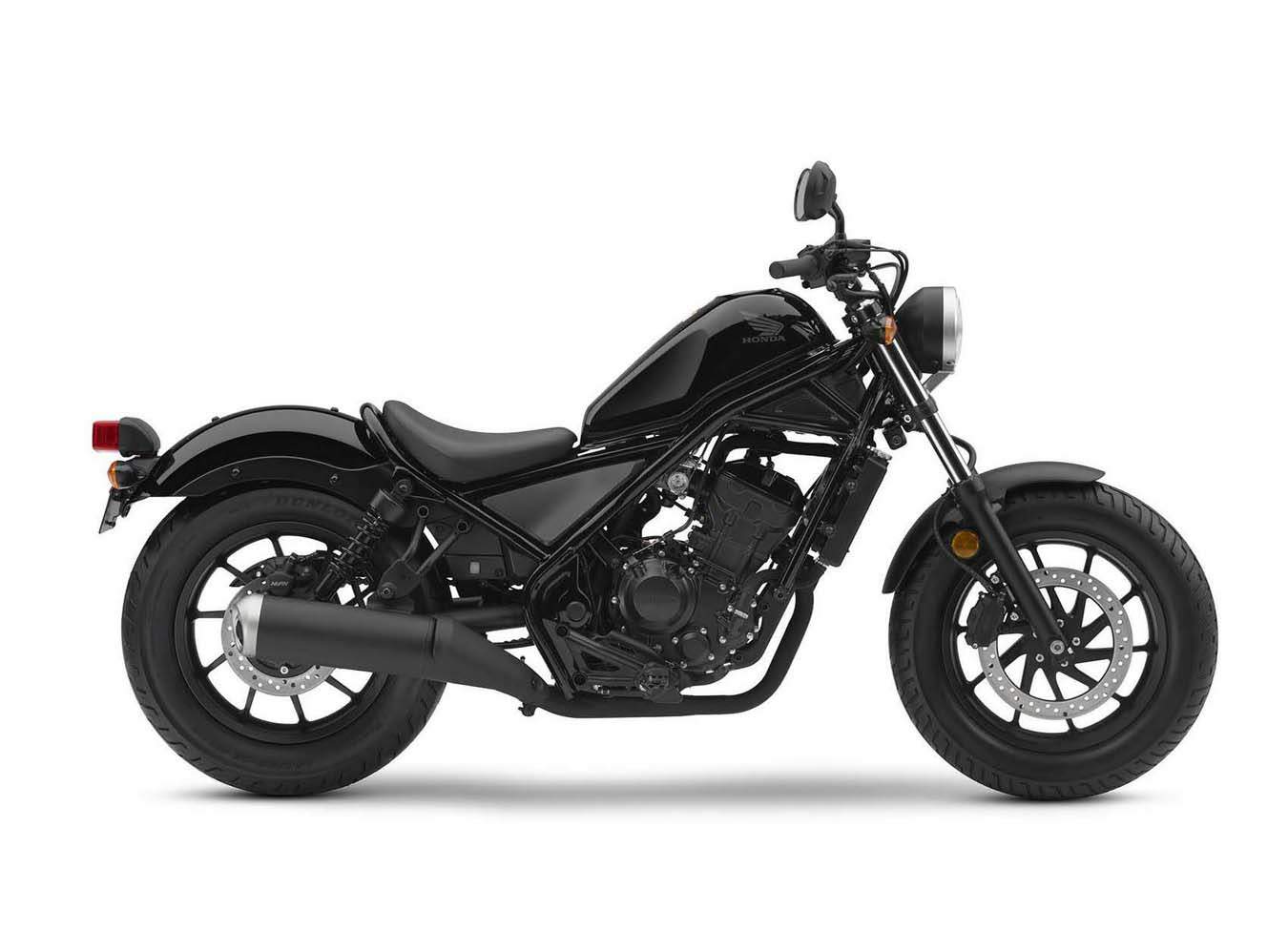

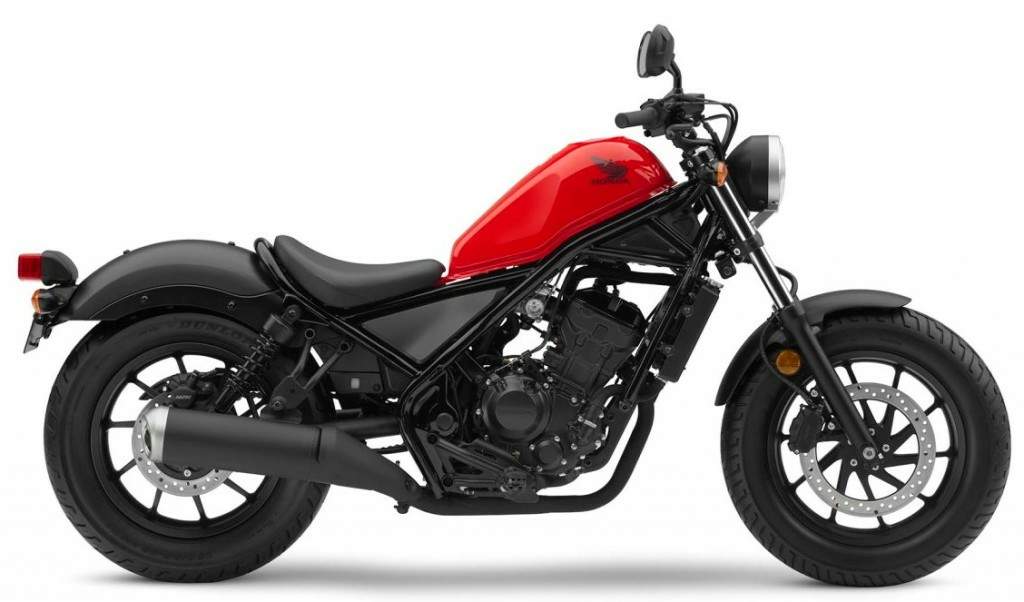

Honda Rebel 300 / ABS is produced in 2017-18. Engine is Four stroke, single cylinder, DOHC; 4 valves per cylinder, displacement 286 cc / 17.4 cu-in , produces power NA and NA. Honda Rebel 300 / ABS wet weight is 165 kg / 364 lbs. - ABS: 167.8 kg / 370 lbs. Honda Rebel 300 / ABS has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Rebel 300 / ABS
Years: 2017-18
Engine: Four stroke, single cylinder, DOHC; 4 valves per cylinder
Capacity: 286 cc / 17.4 cu-in
Bore x Stroke: 76 x 63 mm
Cooling System: Liquid-cooled
Compression Ratio: 10.7:1
Induction: PGM-FI
Ignition: Full transistorized ignition
Starting: Electric
Max Power: NA
Max Torque: NA
Transmission: 6 Speed
Final Drive: O-ring-sealed chain
Front Suspension: 41mm Telescopic fork
Front Wheel Travel: 121 mm / 4.8 in
Rear Suspension: Dual shocks with five-position spring preload adjustment
Rear Wheel Travel: 96 mm / 3.8 in
Front Brakes: Single 296mm hydraulic disc with two piston caliper
Rear Brakes: Single 240mm hydraulic disc with single piston caliper
Front Tyre: 130/90-16
Rear Tyre: 150/80-16
Rake: 28°
Trail: 110 mm / 4.3 in
Wheelbase: 1491 mm / 58.7 in
Seat Height: 691 mm / 27.2 in
Wet Weight: 165 kg / 364 lbs. - ABS: 167.8 kg / 370 lbs
Fuel Capacity: 11.4 Litres / 2.9 US gal
