Honda NX 500 Dominator (1997-00) technical specifications

Honda NX 500 Dominator technical specifications

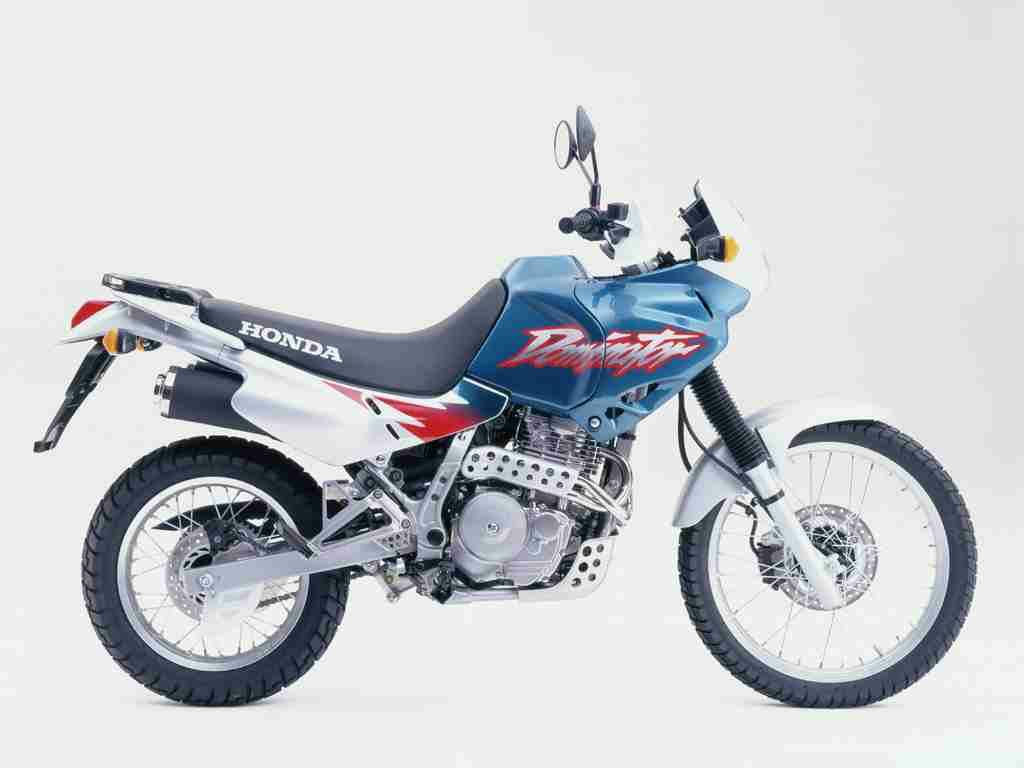

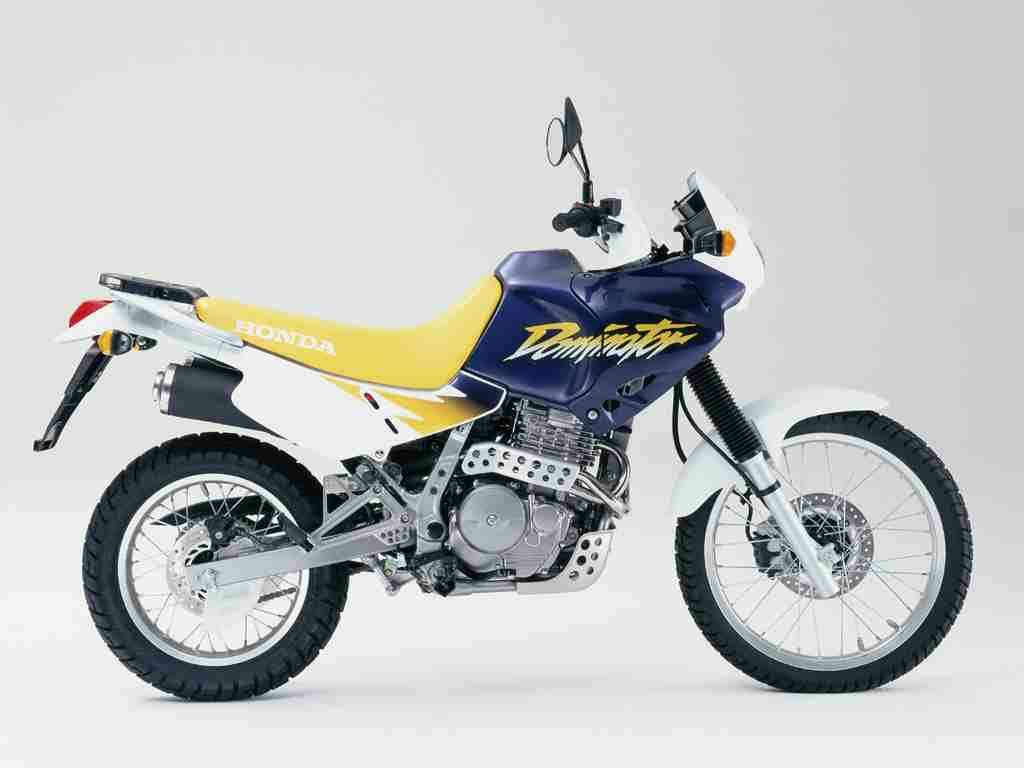

Honda NX 500 Dominator is produced in 1997-00. Engine is Four stroke, single cylinder, SOHC, 4 valve, displacement 498 cc / 30.8 cu-in , produces power and . Honda NX 500 Dominator weighs 167 kg / 368 lbs. Honda NX 500 Dominator has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: NX 500 Dominator
Years: 1997-00
Engine: Four stroke, single cylinder, SOHC, 4 valve
Capacity: 498 cc / 30.8 cu-in
Bore x Stroke: 92 x 75 mm
Cooling System: Air cooled
Compression Ratio: 8.9:1
Induction: Single 40mm Keihin VE-type carb.
Ignition: CDI
Starting: Electric
Max Power:
Max Torque:
Transmission: 5 Speed
Final Drive: Chain
Front Suspension: 41mm leading-axle fork
Front Wheel Travel: 220 mm / 8.6 in
Rear Suspension: Pro-Link
Rear Wheel Travel: 195 mm / 7.6 in
Front Brakes: Single 256mm disc 2 piston caliper
Rear Brakes: Single 220mm disc 1 piston caliper
Front Tyre: 90/90–21
Rear Tyre: 120/90–17
Dry Weight: 167 kg / 368 lbs
Wet Weight: 178.0 kg / 392.4 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
