Honda NM4 Vultus (2014-15) technical specifications

Honda NM4 Vultus technical specifications

Honda NM4 Vultus is produced in 2014-15. Engine is Four stroke, parallel twin-cylinder, SOHC, 8-valve,, displacement 745 cc / 45.4 cu-in , produces power 54.0 hp / 40.3 kW @ 6250rpm (95/1/EC) and 68 Nm / 50.1 lb-ft @ 4750rpm (95/1/EC). Honda NM4 Vultus wet weight is 245 kg / 540 lbs. Honda NM4 Vultus has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: NM4 Vultus
Years: 2014-15
Engine: Four stroke, parallel twin-cylinder, SOHC, 8-valve,
Capacity: 745 cc / 45.4 cu-in
Bore x Stroke: 77 x 80mm
Compression Ratio: 10.7:1
Cooling System: Liquid-cooled
Oil Capacity: 3.9 Litres
Induction: PGM-FI electronic fuel injection
ACG Output: 450W/5000rpm
Battery: Capacity 12V/11.2AH
Starting: Electric
Max Power: 54.0 hp / 40.3 kW @ 6250rpm (95/1/EC)
Max Torque: 68 Nm / 50.1 lb-ft @ 4750rpm (95/1/EC)
Clutch: Wet multiplate hydraulic 2-clutch
Transmission: 6 Speed Dual Clutch Transmission with two automatic shift modes and a manual shift mode
Final Drive: Chain
Frame: Diamond; steel pipe
Front Suspension: 43mm telescopic fork,
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Monoshock damper, Pro-Link swingarm,
Rear Wheel Travel: 100 mm / 3.9 in
Front Brakes: 2x 320 mm single wavy hydraulic disc with 2-piston caliper and sintered metal pads
Rear Brakes: Single 240 single wavy hydraulic disc with 2-piston caliper and sintered metal pads
Wheels Front: Multi-spoke cast aluminium
Wheel Rear: Multi-spoke cast aluminium
Front Rim: 18M/C x MT3.50
Rear Rim: 17M/C x MT6.25
Front Tyre: 120/70 ZR18
Rear Tyre: 200/50 ZR17
Rake / Castor: 33°
Trail: 110 mm / 4.3 in
Dimensions: Length 2380 mm / 93.7 in Width 933 mm / 36.7 in Height 1170 mm / 46.0 in
Wheelbase: 1645 mm / 64.7 in
Ground Clearance: 130 mm / 5.1 in
Seat Height: 650 mm / 25.5 in
Wet Weight: 245 kg / 540 lbs
Fuel Capacity: 11.6 Litres / 3.0 US gal

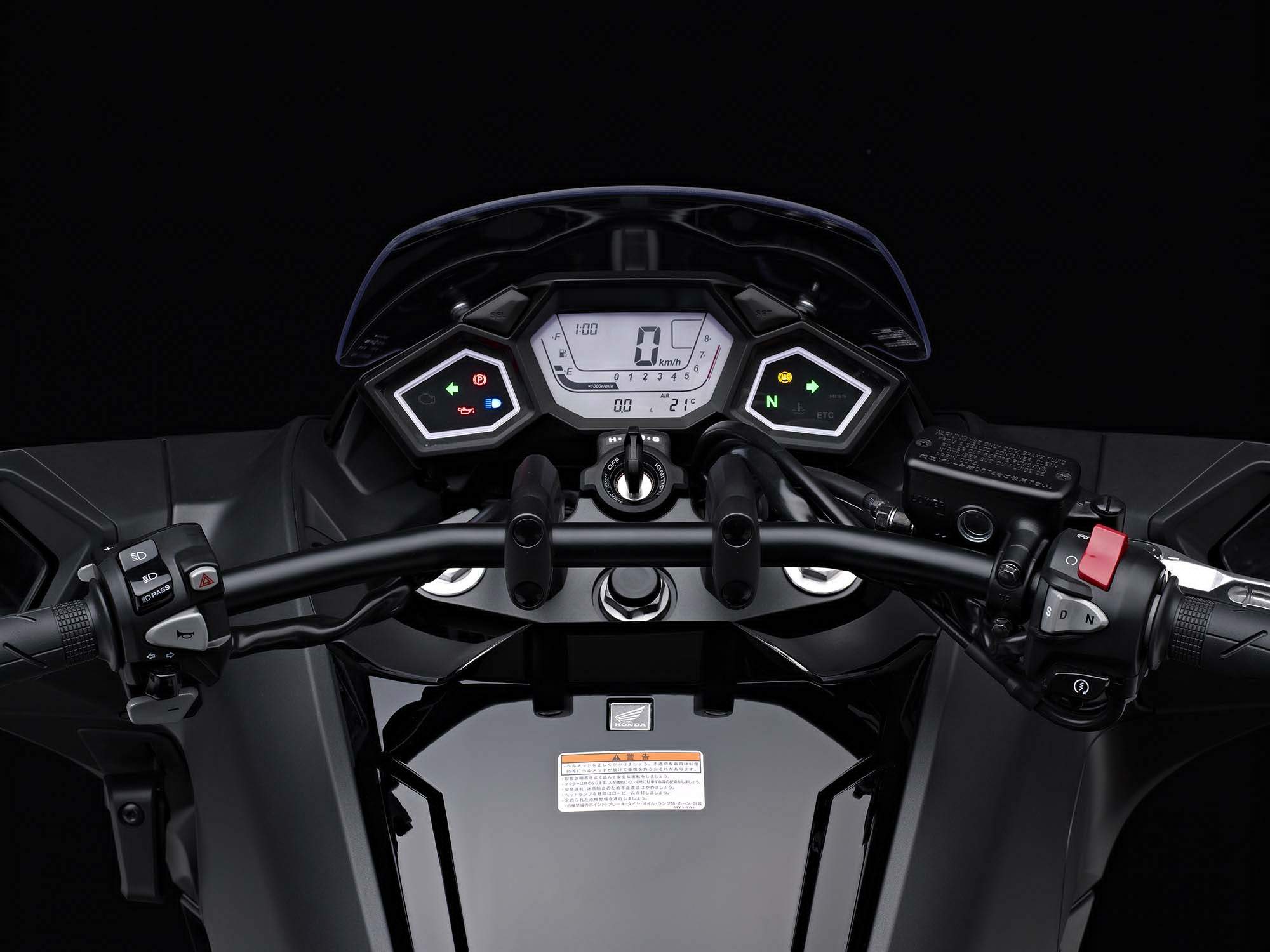

Instruments & Electrics: Digital speedometer, digital bar-type tachometer, clock, bar-type fuel meter, two trip meters, gear position indicator, outside air temperature gauge and coolant temperature warning light. Security System HISS Headlight LED Taillight LED
