Honda NC 750D Integra (2017-) technical specifications

Honda NC 750D Integra technical specifications

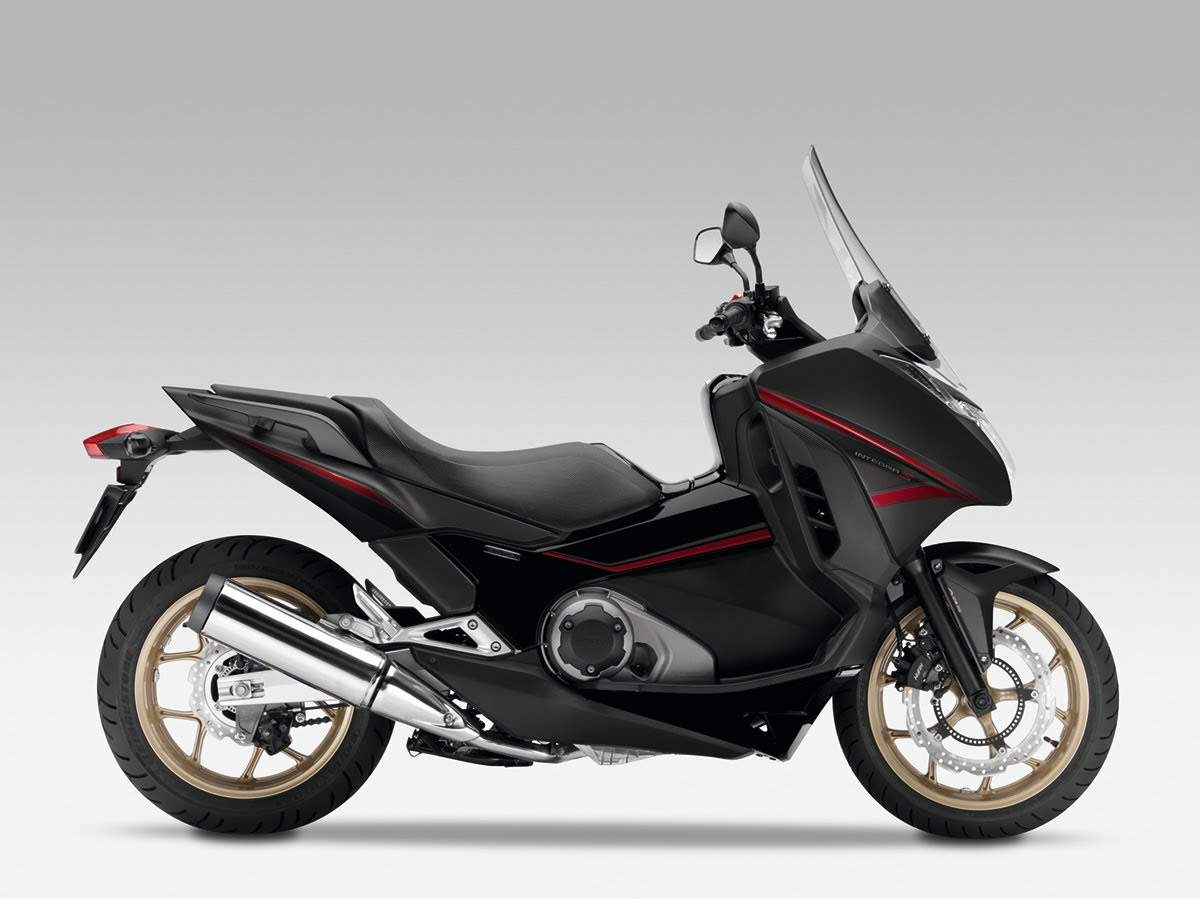

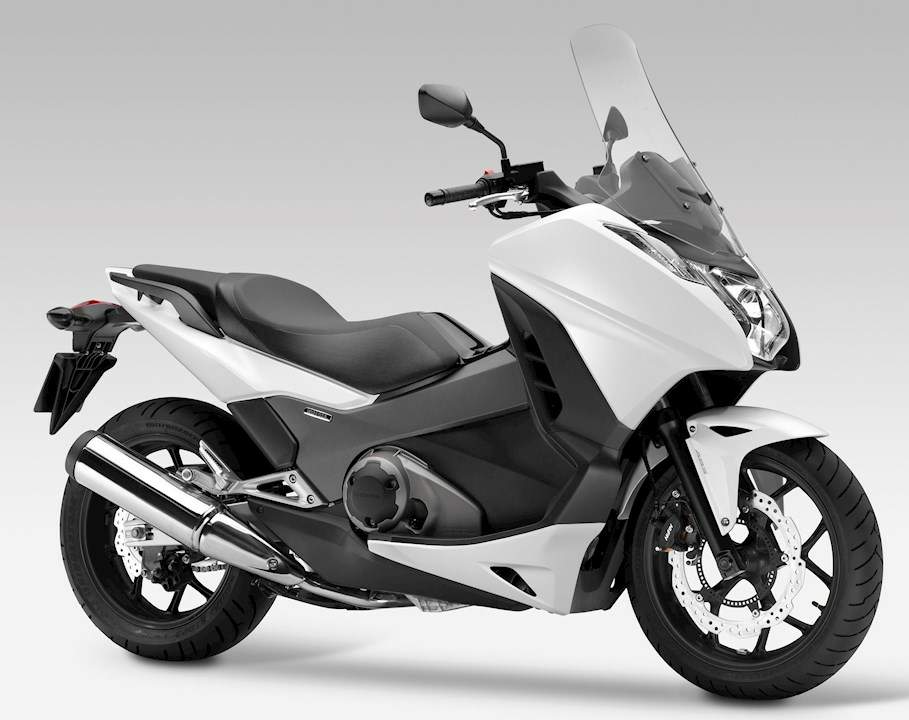

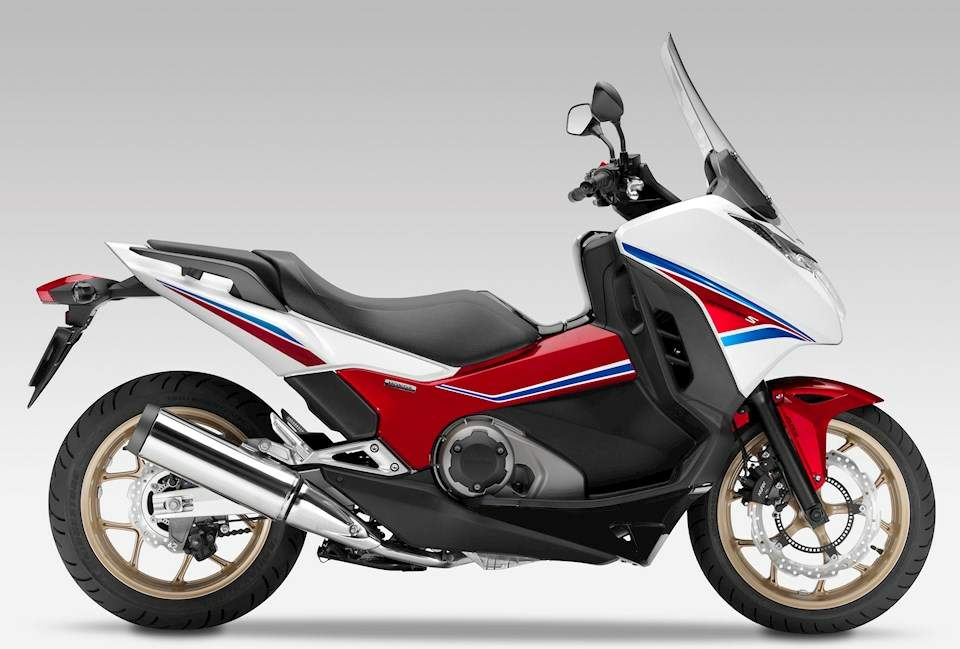

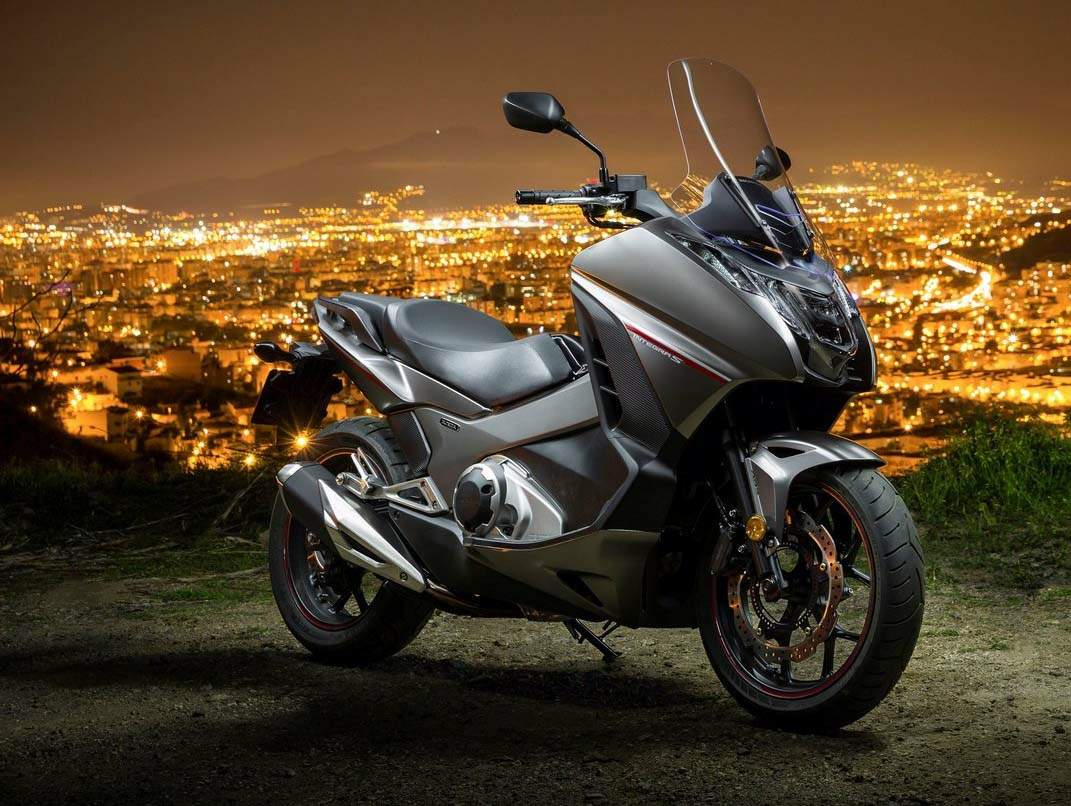

Honda NC 750D Integra is produced in 2017-. Engine is Four stroke , Parallel twin, SOHC, 4 valves per cylinder, displacement 745 cc / 45.4 cu-in , produces power 40.3 kW / 54 hp @ 6250 rpm and 68 Nm / 50.8 lb-ft@ 4750 rpm. Honda NC 750D Integra has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: NC 750D Integra
Years: 2017-
Engine: Four stroke , Parallel twin, SOHC, 4 valves per cylinder
Capacity: 745 cc / 45.4 cu-in
Bore x Stroke: 77 x 80mm
Cooling System: Liquid-cooled
Compression Ratio: 10.7:1
Induction: PGM-FI electronic fuel injection
Ignition: Computer-controlled digital transistorised with electronic advance
Starting: Electric
Max Power: 40.3 kW / 54 hp @ 6250 rpm
Max Torque: 68 Nm / 50.8 lb-ft@ 4750 rpm
Clutch: Wet Multiplate
Clutch DCT: Wet multiplate hydraulic 2-clutch
Transmission: 6 Speed Manual
Transmission DCT: 6-Speed Dual Clutch Transmission
Final Drive: Chain
Frame: Rigid tube steel diamond
Front Suspension: 41 mm telescopic forks
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Single monoshock damper
Rear Wheel Travel: 120 mm / 4.7 in
Front Brakes: Single 320 mm hydraulic disc 3 piston calipers and sintered metal pads
Rear Brakes: Single 240 mm hydraulic disc 1 piston caliper and sintered metal pads
ABS System: 2 channel ABS
Front Tyre: 120/70ZR17M/C (58W)
Rear Tyre: 160/60ZR17M/C (69W)
Rake: 27˚
Trail: 110 mm / 4.3 in
Wheelbase: 1525 mm / 60.0 in
Seat Height: 790 mm (Europe) - 775 mm (Japan)
Weight: 238 kg / 520 lbs
Fuel Capacity: 14.1 Litres / 3.7 US gal
