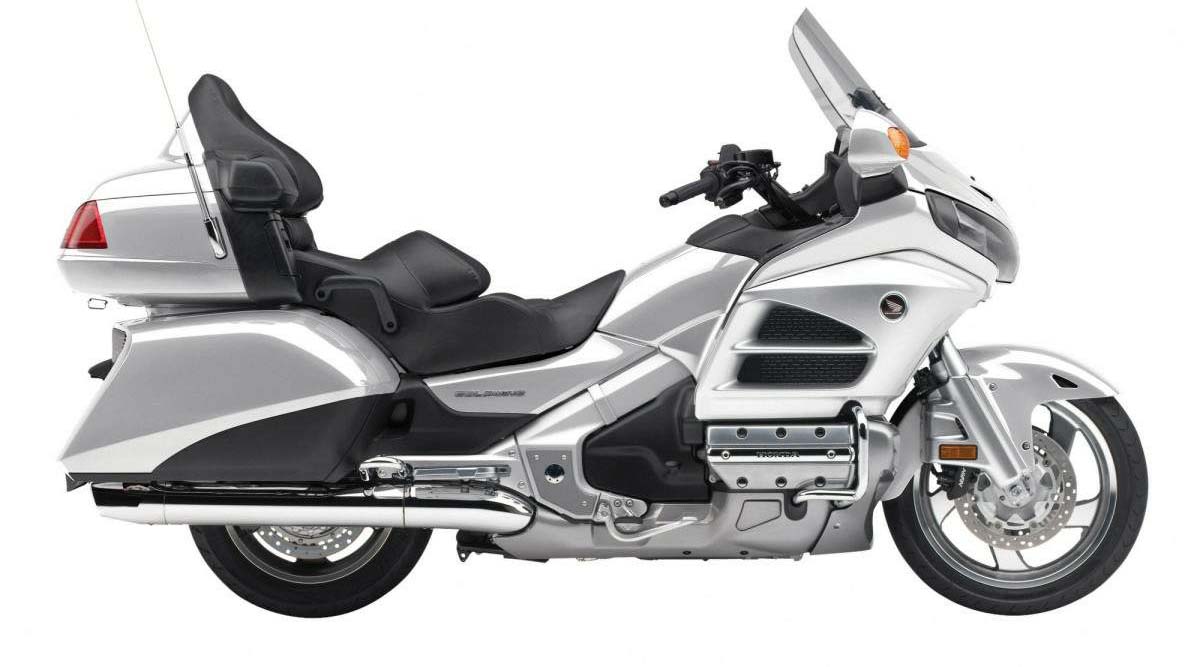

Honda GLX 1800 Gold Wing (2013) technical specifications

Honda GLX 1800 Gold Wing technical specifications

Honda GLX 1800 Gold Wing is produced in 2013. Engine is Four stroke, opposed boxer six cylinders, SOHC, 2-valve per cylinder, displacement 1832 cc / 111.8 cub in. , produces power 86 kW /118 hp @ 5500 rpm and 167 Nm / 17.03 kgf-m / 120.9 lb-ft @ 4000 rpm. Honda GLX 1800 Gold Wing wet weight is 410 kg / 904 lbs. Honda GLX 1800 Gold Wing has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: GLX 1800 Gold Wing
Years: 2013
Engine: Four stroke, opposed boxer six cylinders, SOHC, 2-valve per cylinder
Capacity: 1832 cc / 111.8 cub in.
Bore x Stroke: 74 x 71 mm
Cooling System: Liquid cooled
Compression Ratio: 9.8:1
Induction: PGM-FI electronic fuel injection, 40mm throttle bore with automatic choke
Ignition: Computer controlled digital
Starting: Electric
Max Power: 86 kW /118 hp @ 5500 rpm
Max Torque: 167 Nm / 17.03 kgf-m / 120.9 lb-ft @ 4000 rpm
Clutch: Hydraulic
Transmission: 5 Speed
Final Drive: Shaft
Gear Ratio: 1st 2.375 (38/16) / 2nd 1.454 (32/22) / 3rd 1.068 (31/29) / 4th 0.843 (27/32) 5th 0.686 (24/35)
Front Suspension: 45mm fork with anti-dive system
Front Wheel Travel: 140 mm / 5.5 in
Rear Suspension: Pro Arm single-side swingarm with Pro-Link: electronically controlled spring preload adjustment with two memory presets
Rear Wheel Travel: 104 mm / 4.1 in
Front Brakes: 2 x 296 mm discs, 3 piston calipers
Rear Brakes: Single 316 mm disc, 3 piston caliper
Front Tyre: 130/70 R18
Rear Tyre: 180/60 R16
Rake: 29.15°
Trail: 109mm / 4.3 in
Dimensions: Length 2630 mm / 103.5 in Width 945 mm / 37.2 in Height 1455 mm / 57.2 in
Wheelbase: 1689 mm / 66.5 in
Seat Height: 740 mm / 29.1 in
Ground Clearance: 125 mm / 4.9 in
Wet Weight: 410 kg / 904 lbs
Fuel Capacity: 25 Litres / 6.8 gal
