Honda CRF 250M (2015-16) technical specifications

Honda CRF 250M technical specifications

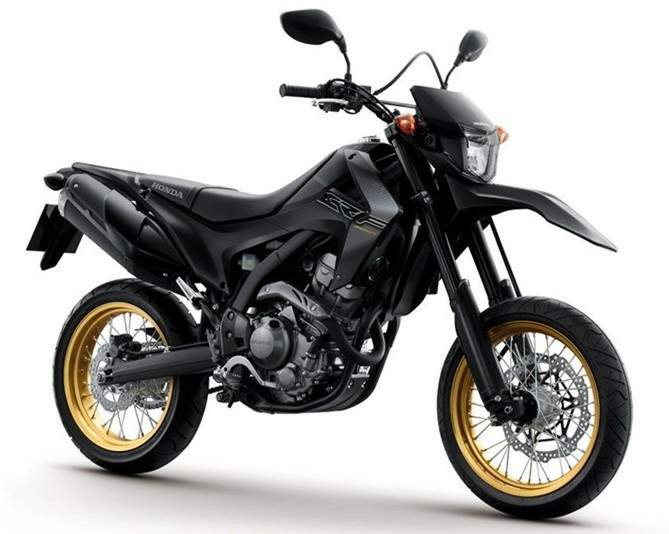

Honda CRF 250M is produced in 2015-16. Engine is Four stroke single cylinder, DOHC, 4 valves, displacement 249 cc / 15.28 cu-in , produces power 17 kW / 23 hp @ 8500 rpm and 22 Nm / 2.24 kg-m @ 7000 rpm. Honda CRF 250M wet weight is 145 kg / 320 lbs. Honda CRF 250M has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: CRF 250M
Years: 2015-16
Engine: Four stroke single cylinder, DOHC, 4 valves
Capacity: 249 cc / 15.28 cu-in
Bore x Stroke: 76 ×55 mm
Cooling System: Liquid cooled
Compression Ratio: 10.7:1
Lubrication: Wet sump
Induction: Keihin 37mm flat-slide with throttle position sensor (TPS)
Ignition: Full-transistor battery ignition
Starting: Electric
Max Power: 17 kW / 23 hp @ 8500 rpm
Max Torque: 22 Nm / 2.24 kg-m @ 7000 rpm
Clutch: Wet multiplate with coil springs
Transmission: 6 Speed
Final Drive: #520 chain; 14T/40T
Gear Ratio: 1st 3.333 2nd 2.117 3rd 1.571 4th 1.304 5th 1.115 6th 0.962
Frame: Semi-double cradle
Front Suspension: Telescopic Inverted
Rear Suspension: Swing arm Pro-Link suspension system
Front Brakes: Single disc
Rear Brakes: Single disc
Front Tyre: 3.00-17
Rear Tyre: 120/80-17
Seat Height: 875 mm / 34.4 in
Wet Weight: 145 kg / 320 lbs
Fuel Capacity: 7.7 Litres / 2.0 gal
