Honda CRF 250L Rally (2017-18) technical specifications

Honda CRF 250L Rally technical specifications

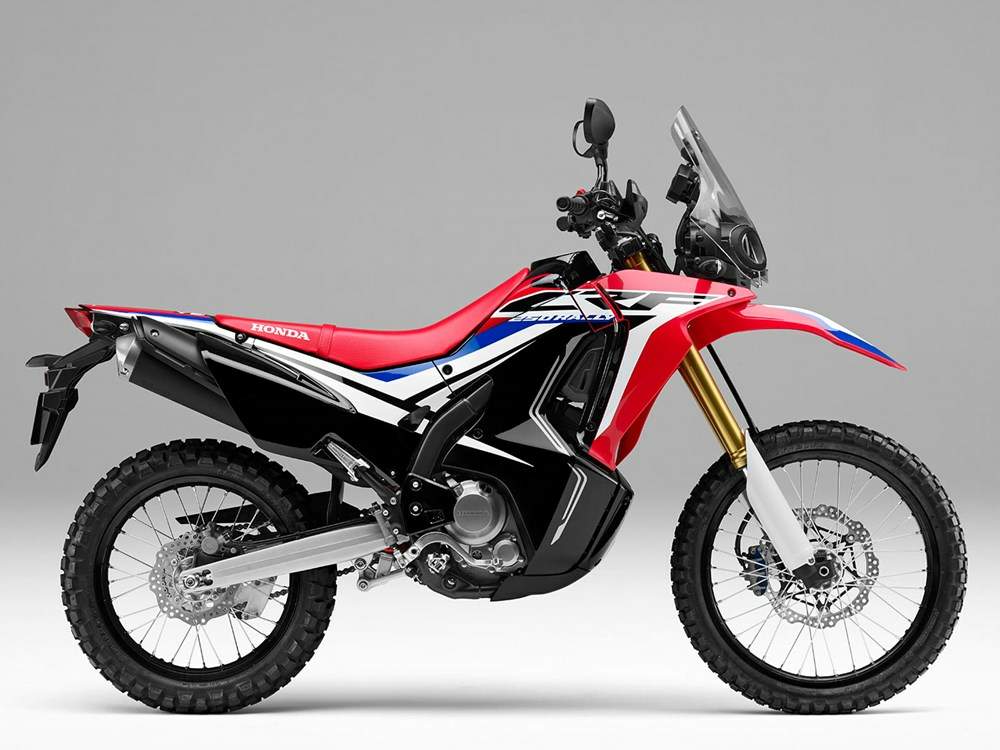

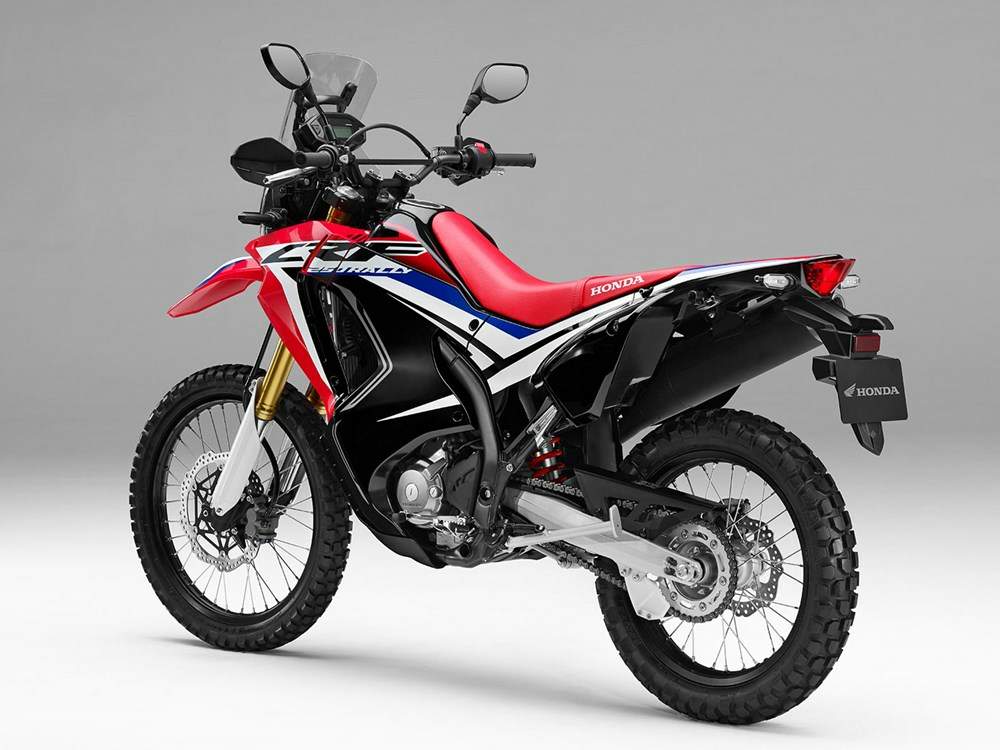

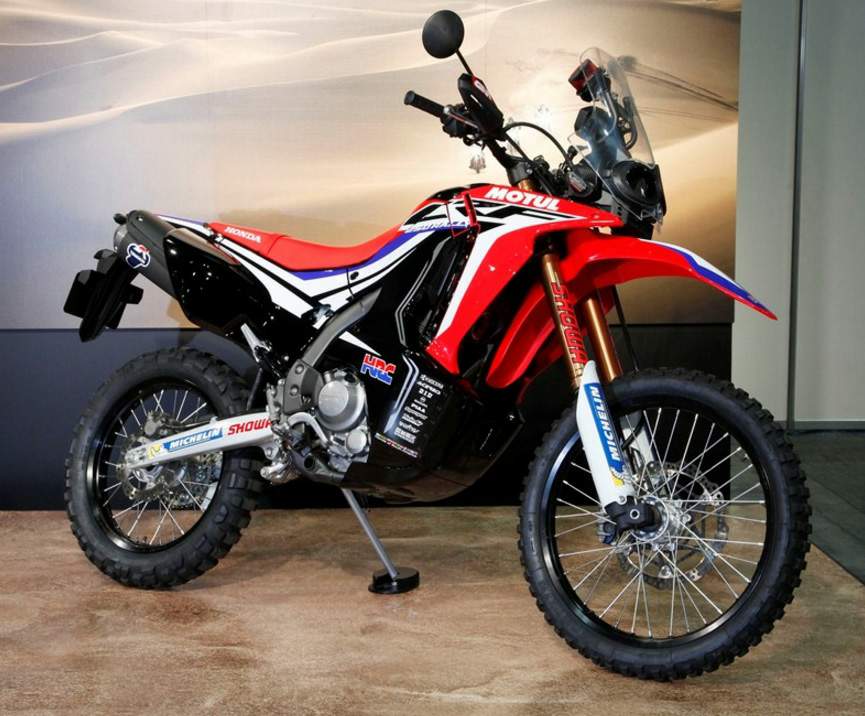

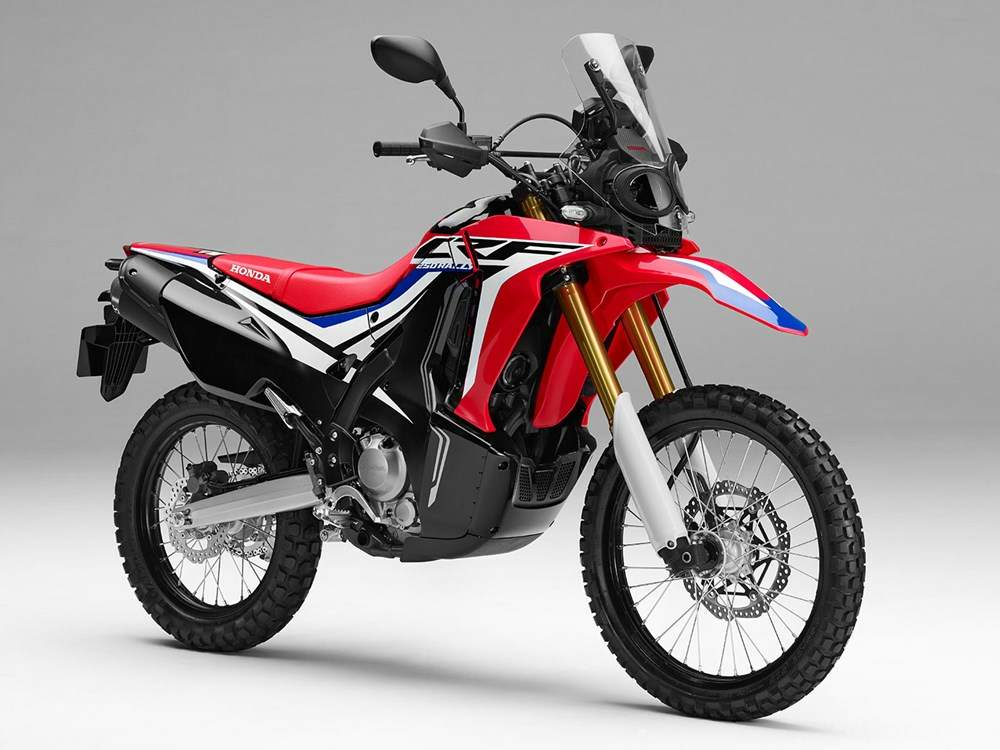

Honda CRF 250L Rally is produced in 2017-18. Engine is Four stroke single cylinder, DOHC, 4 valves, displacement 249 cc / 15.28 cu-in , produces power 17 kW / 23 hp @ 8500 rpm and 22 Nm / 2.24 kg-m @ 7000 rpm. Honda CRF 250L Rally wet weight is 157 kg / 346.1 lbs. Honda CRF 250L Rally has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: CRF 250L Rally
Years: 2017-18
Engine: Four stroke single cylinder, DOHC, 4 valves
Capacity: 249 cc / 15.28 cu-in
Bore x Stroke: 76 ×55 mm
Cooling System: Liquid cooled
Compression Ratio: 10.7:1
Lubrication: Wet sump
Induction: Keihin 37mm flat-slide with throttle position sensor (TPS)
Ignition: Full-transistor battery ignition
Starting: Electric
Max Power: 17 kW / 23 hp @ 8500 rpm
Max Torque: 22 Nm / 2.24 kg-m @ 7000 rpm
Clutch: Wet multiplate with coil springs
Transmission: 6 Speed
Final Drive: #520 chain; 14T/40T
Gear Ratio: 1st 3.333 2nd 2.117 3rd 1.571 4th 1.304 5th 1.115 6th 0.962
Frame: Semi-double cradle
Front Suspension: 43mm inverted fork.
Front Wheel Travel: 221 mm / 8.7 in
Rear Suspension: Pro-Link® single shock with spring
Rear Wheel Travel: 239 mm / 9.4 in
Front Brakes: Single 296mm disc 2 piston caliper, ABS
Rear Brakes: Single 220mm disc 1 piston caliper, ABS
Front Tyre: 3.00-21
Rear Tyre: 120/80-18
Rake: 28°
Trail: 114 mm / 4.5 in
Wheelbase: 1455 mm / 57.3 in
Seat Height: 895 mm / 35.2 in
Ground Clearance: 270 mm / 10.6 in
Wet Weight: 157 kg / 346.1 lbs
Fuel Capacity: 10 Litres / 2.7 US gal
