Honda CRF 1000L Africa Twin / DCT (2017) technical specifications

Honda CRF 1000L Africa Twin / DCT technical specifications

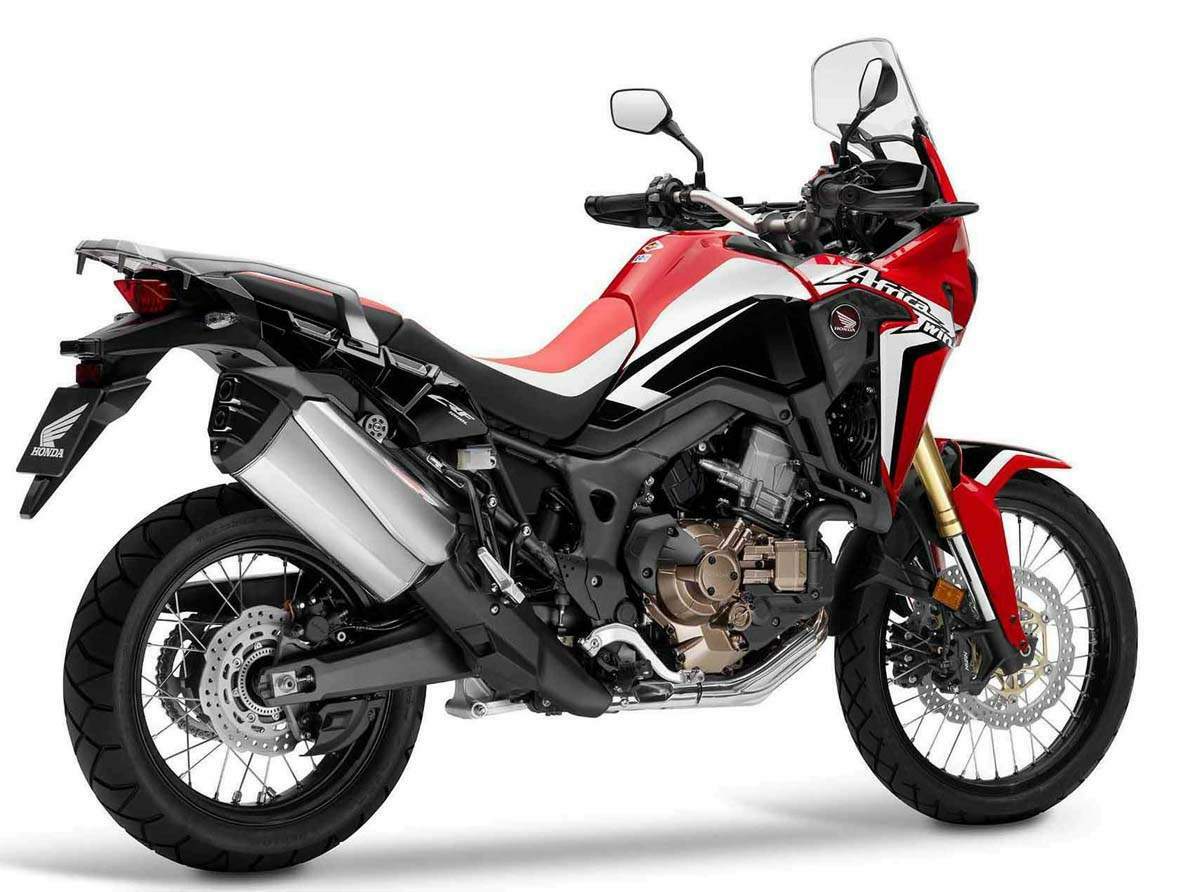

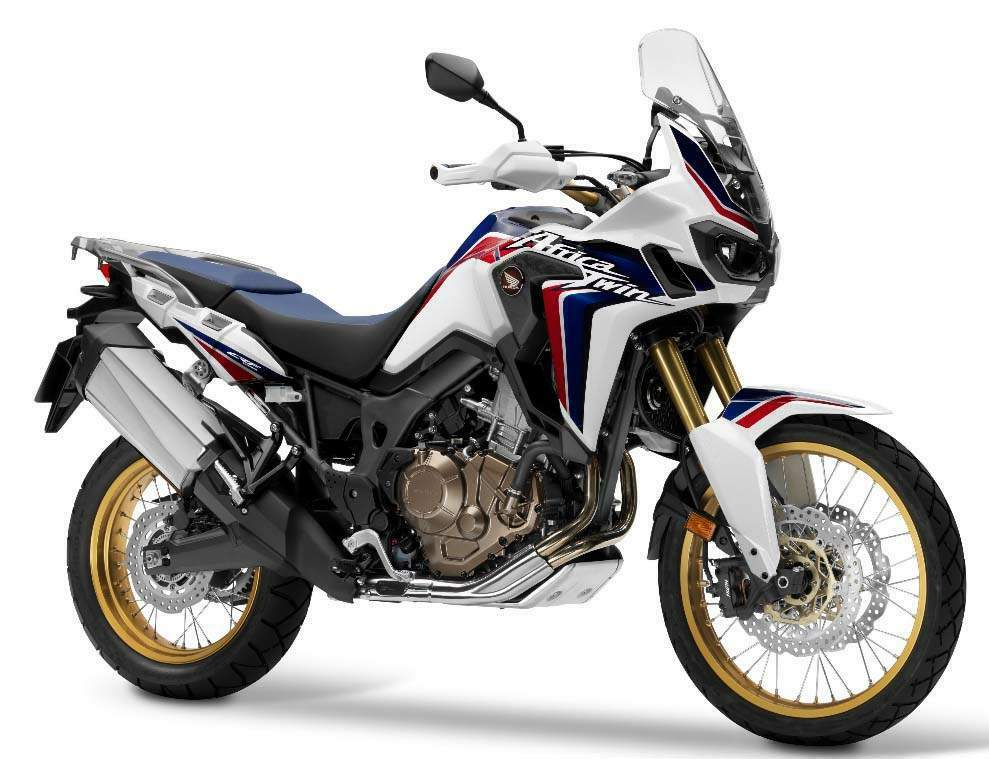

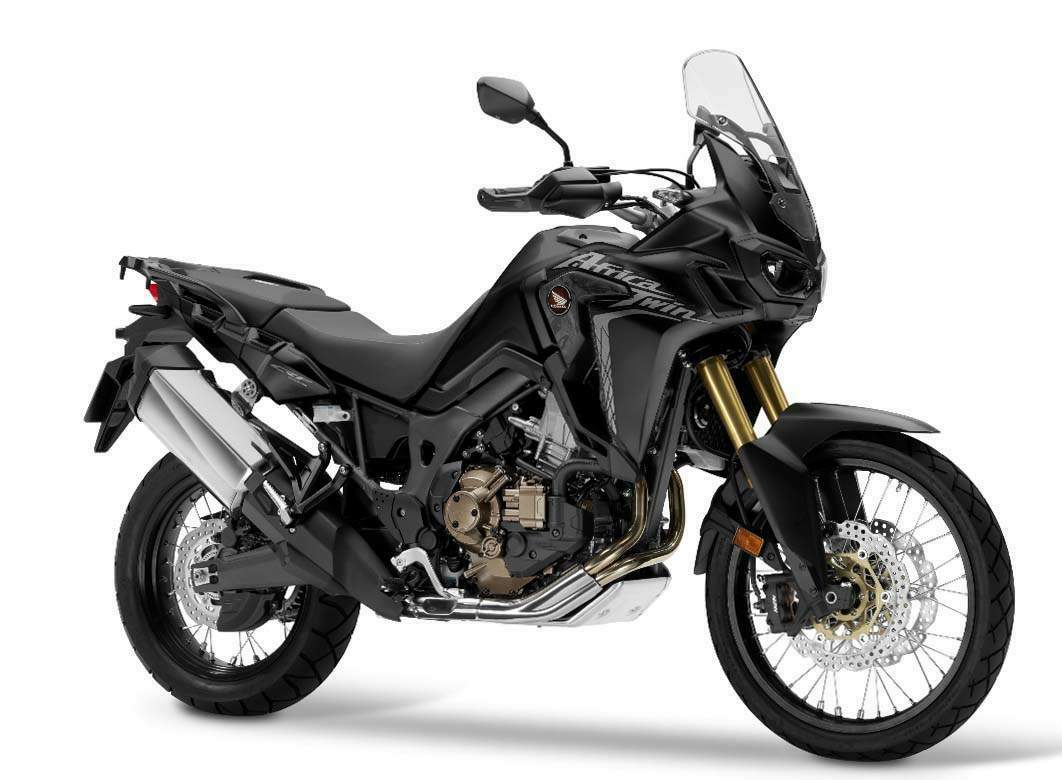

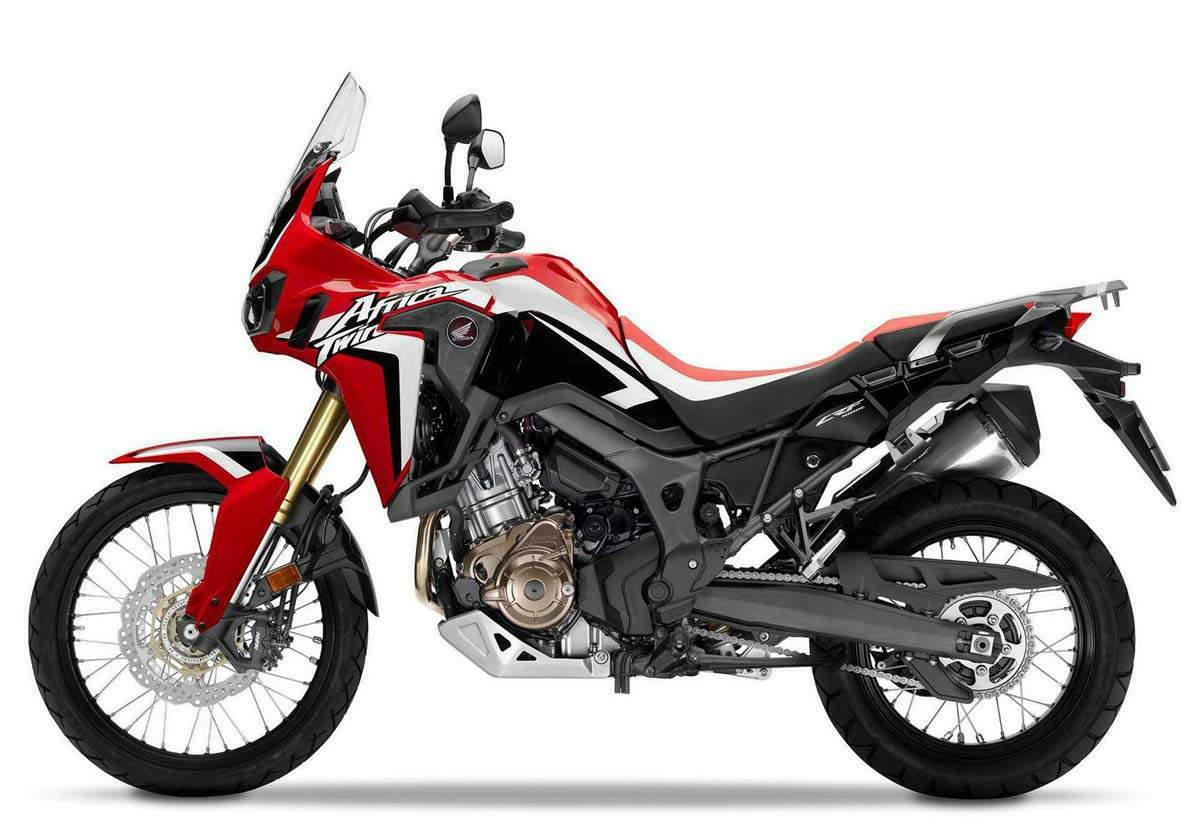

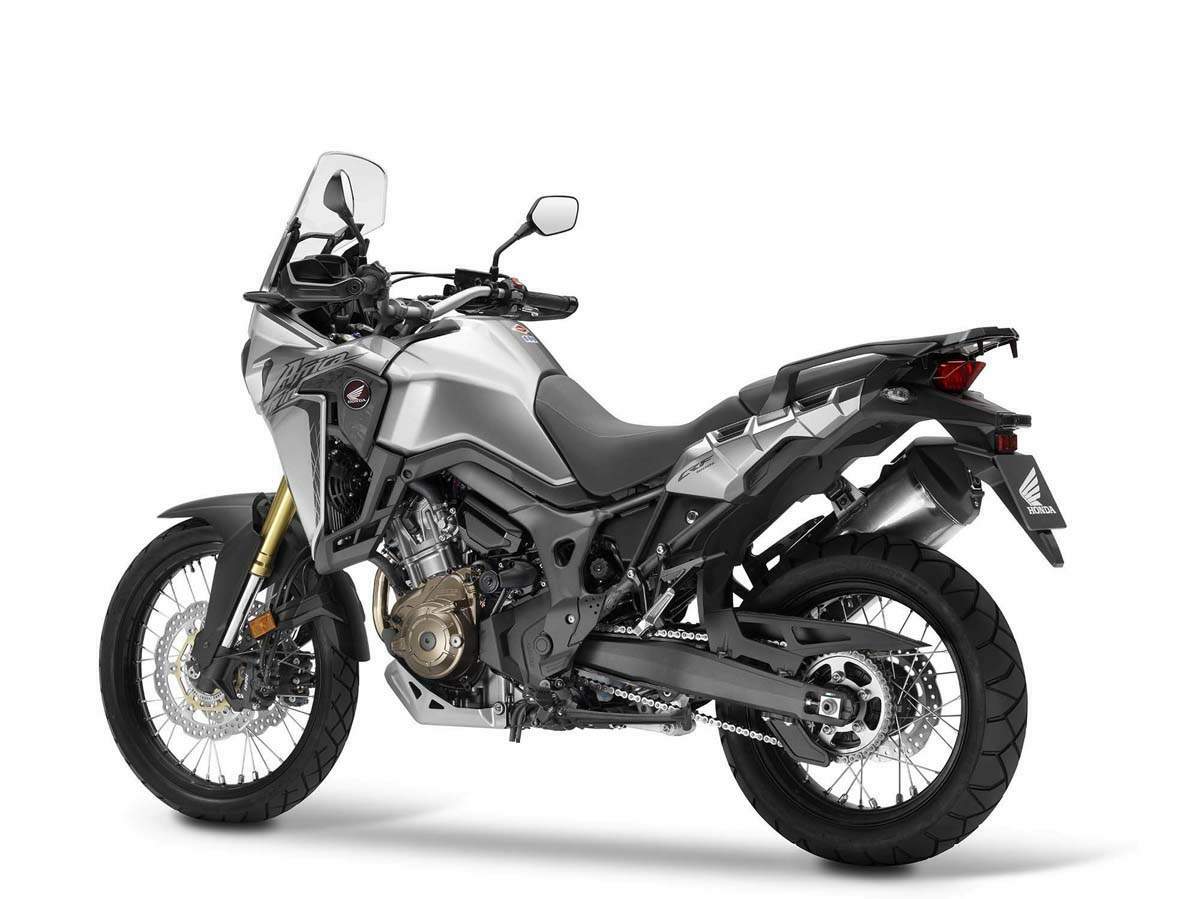

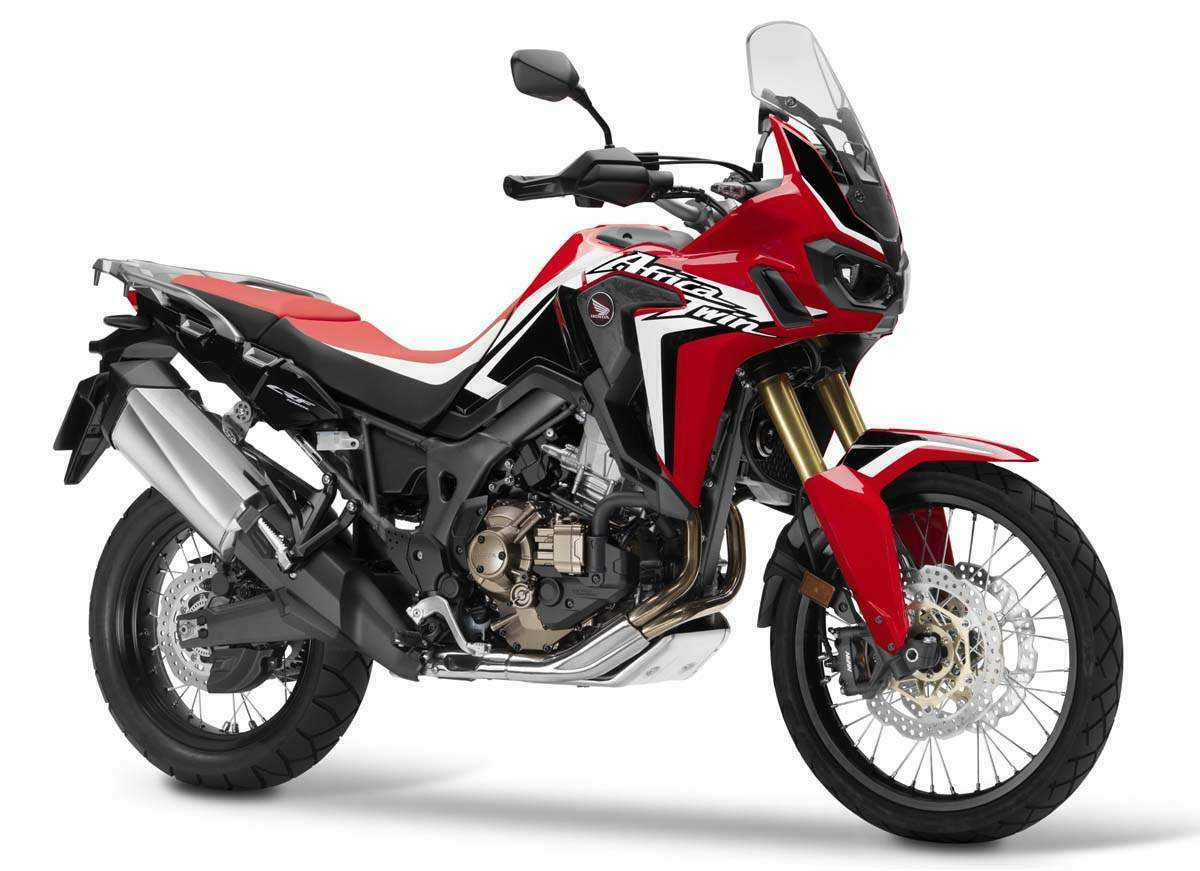

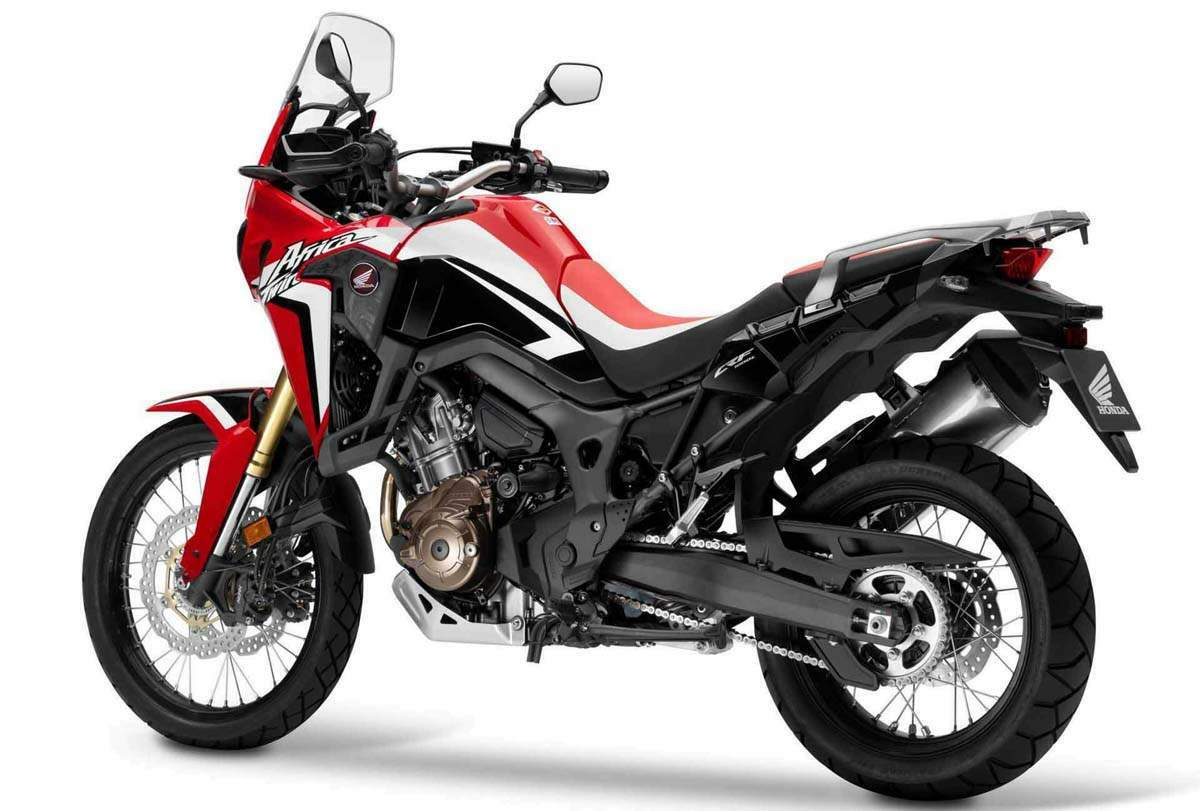

Honda CRF 1000L Africa Twin / DCT is produced in 2017. Engine is Four stroke, parallel Twin with 270° crank, SOHC, 4 valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 93.8 hp / 70 kW @ 7500 rpm and 98 Nm / 72.2 ft-lb @ 6000 rpm. Honda CRF 1000L Africa Twin / DCT wet weight is 232 kg / 511.5 lbs (MT) - 242kg / 533.5 lbs (DCT). Honda CRF 1000L Africa Twin / DCT has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: CRF 1000L Africa Twin / DCT
Years: 2017
Engine: Four stroke, parallel Twin with 270° crank, SOHC, 4 valves per cylinder
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 92.0 x 75.1 mm
Compression Ratio: 10.0:1
Cooling System: Liquid cooled
Emission: Euro
Induction: Fuel injection
Starting: Electric
Max Power: 93.8 hp / 70 kW @ 7500 rpm
Max Torque: 98 Nm / 72.2 ft-lb @ 6000 rpm
Clutch: MT: Wet, multiplate with coil springs, Aluminium Cam Assist and Slipper clutch DCT: 2 Wet multiple clutches
Transmission: Constant mesh 6-speed manual / 6-speed automatic DCT with on- and off-road riding modes
Final Drive: O-ring sealed chain
Honda Selectable Torque Control System (HSTC): HSTC 3-levels + switch-off (DCT/ABS model only, not on STD model)
Frame: Steel semi-double cradle type with high-tensile strength steel rear sub-frame
Front Suspension: Showa 45mm cartridge-type inverted telescopic fork with hydraulic dial-style preload adjuster and DF adjustment, 204mm axle stroke
Front Wheel Travel: 230 mm / 9.1 in
Rear Suspension: Monoblock cast aluminium swing arm with Pro-Link with gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustment, 94 mm axle stroke
Rear Wheel Travel: 220 mm / 8.6 in
Front Brakes: 2x 310 mm floating hydraulic discs with aluminum hub and radial fit 4-piston calipers and sintered metal pads
Rear Brakes: Single 256mm wave hydraulic disc with 2-piston caliper and sintered metal pads. Also Lever-Lock Type Parking Brake System on DCT/ABS model
ABS System: ABS 2-channel with rear ABS off switch (DCT/ABS model only, not on STD model)
Wheels: Wire spoke with aluminum rims
Front Wheel: 21M/C x MT2.15
Rear Wheel: 18M/C x MT4.00
Front Tyre: 90/90-R21 tube type
Rear Tyre: 150/70-R18 tube type
Turning Radius: 2 5 m / 8.2 ft
Rake: 27.5°
Trail: 114.3 mm / 4.5 in
Dimensions: Length 2334.2 mm / 91.9 in Width 929.6 mm / 36.6 in Height 1475.7 mm / 58.1 in
Wheelbase: 1574.8 mm / 62.0 in
Seat Height: 871.2 mm / 34.3 in - 850.9 mm / 33.5 in
Ground Clearance: 250 mm / 9.8 in
Wet Weight: 232 kg / 511.5 lbs (MT) - 242kg / 533.5 lbs (DCT)
Fuel Capacity: 18.7 Litres / 4.96 US gal
