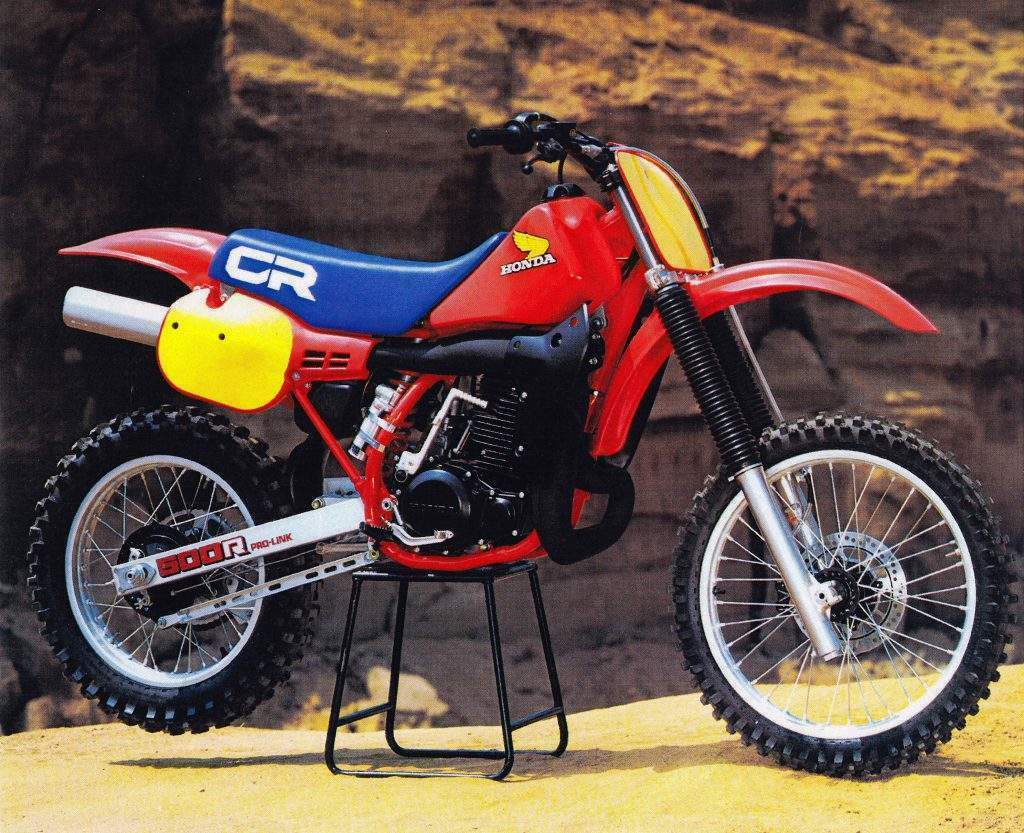

Honda CR 500R (1984) technical specifications
Honda CR 500R is produced in 1984. Engine is Two stroke, single cylinder, membrane & power valve, displacement 491.4 cc / 29.9 cu-in , produces power 59 hp / 44 kW @ 6600 rpm and 65.7 Nm / 48.5 lb-ft @ 6600 rpm. Honda CR 500R weighs 102.1 kg / 225.0 lbs. Honda CR 500R has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | CR 500R |
| Years: | 1984 |
| Engine: | Two stroke, single cylinder, membrane & power valve |
| Capacity: | 491.4 cc / 29.9 cu-in |
| Bore x Stroke: | 89.0 x 79.0 mm |
| Compression Ratio: | 6.7:1 |
| Cooling System: | Air cooled |
| Exhaust: | Expansion chamber |
| Lubrication: | Pre-mix |
| Induction: | Single 38mm Keihin flat-slide carburettor |
| Ignition: | CDI |
| Starting: | Kick |
| Max Power: | 59 hp / 44 kW @ 6600 rpm |
| Max Torque: | 65.7 Nm / 48.5 lb-ft @ 6600 rpm |
| Clutch: | Wet plate |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Primary Reduction: | 2.520 |
| Final Reduction: | 3.500 |
| Gear Ratio: | 1st 1.750 / 2nd 1.388 / 3rd 1.150 / 4th 1.000 / 5th 0.870 |
| Frame: | Welded steel tubing |
| Front Suspension: | 46mm Showa telescopic fork |
| Front Wheel Travel: | 305 mm / 12.0 in |
| Rear Suspension: | Showa Prolink with adjustable compression/rebound dampening |
| Rear Wheel Travel: | 315 mm / 12.4 in |
| Front Brakes: | Single 240mm disc hydraulic 2 piston caliper |
| Rear Brakes: | Drum |
| Front Tyre: | 3.00-21 |
| Rear Tyre: | 5.10-18 |
| Rake: | 27° |
| Trail: | 109.2 mm / 4.3 in |
| Wheelbase: | 1508.7 mm / 59.4 in |
| Seat Height: | 937 mm / 36.8 in |
| Ground Clearance: | 320 mm / 12.6 in |
| Dry Weight: | 102.1 kg / 225.0 lbs |
| Wet Weight: | 108.0 Kg / 238.1 lbs |
| Fuel Capacity: | 9 Litres / 2.38 US gal |
| Overview: | Pulpmx.com |
