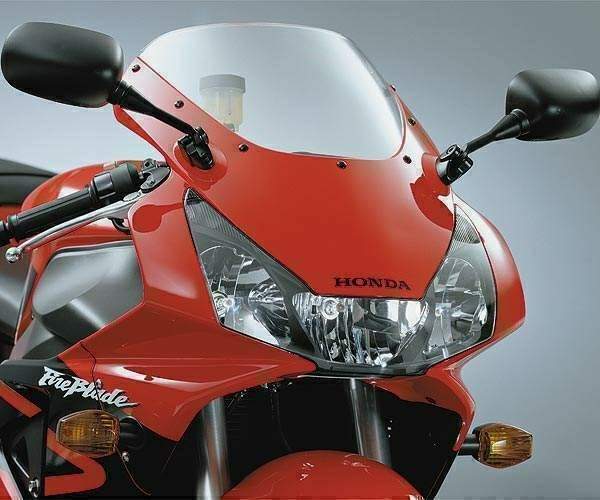

Honda CBR 900RR Fireblade (CBR954RR) (2003) technical specifications

Honda CBR 900RR Fireblade (CBR954RR) technical specifications

Honda CBR 900RR Fireblade (CBR954RR) is produced in 2003. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 954cc / 58.2 cub. in , produces power 113 kW / 154 hp @ 11250rpm and 101 Nm / 10.3 kg fm / 74.6 lb.ft @ 9000rpm. Honda CBR 900RR Fireblade (CBR954RR) top speed is 286 km/h / 178 mph. Honda CBR 900RR Fireblade (CBR954RR) weighs 168 kg / 370 lbs. Honda CBR 900RR Fireblade (CBR954RR) has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: CBR 900RR Fireblade (CBR954RR)
Years: 2003
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 954cc / 58.2 cub. in
Bore x Stroke: 75 x 54 mm
Compression Ratio: 11.5:1
Cooling System: Liquid cooling
Lubrication: Wet sump
Engine oil: Synthetic, 10W/40
Exhaust: Stainless steel, 4 into 2 into 1 with titanium muffler
Induction: PGM-FI (fuel-injection) with automatic choke
Ignition: Computer-controlled digital, 3D mapping
Starting: Electronic
Spark Plug: NGK, IMR9C-9H
Max Power: 113 kW / 154 hp @ 11250rpm
Max Torque: 101 Nm / 10.3 kg fm / 74.6 lb.ft @ 9000rpm
Clutch: Nine-plate clutch with durable friction plate material
Transmission: 6 Speed
Final Drive: # 530 chain, O-ring sealed drive chain, 108 links
Gear Ratio: 1st 2.73 / 2nd 2.00 / 3rd 1.60 / 4th 1.37 / 5th 1.23 / 6th 1.13:1
Frame: Twin-spar extruded aluminum frame with a pivotless swingarm design utilizing a cast aluminum bracket attached to the swingarm pivots.
Front Suspension: 43mm inverted telescopic fork with stepless preload, compression and rebound adjustment
Front Wheel Travel: 120 mm / 4.7 in.
Rear Suspension: Pro-Link with gas-charged H.M.A.S. damper featuring 13-step preload and stepless compression and rebound damping adjustment
Rear Wheel Travel: 135 mm / 5.3 in.
Front Brakes: 2x 330 mm discs 4 piston calipers
Rear Brakes: Single 220mm disc 1 piston caliper
Front Rim: Aluminium alloy hollow spoke, 89 mm / 3.5 in.
Front Tyre: 120/70 ZR17
Rear Rim: Aluminium alloy hollow spoke, 152 mm / 6.0 in.
Rear Tyre: 190/50 ZR17
Rake: 23,8°
Trail: 97 mm / 3.8 in.
Dimensions: Length 2025 mm / 79.7 in Width 680 mm / 26.8 in Height 1135 mm / 44.7 in
Wheelbase: 1400 mm / 55.1 in.
Ground Clearance: 130 mm / 5.1 in.
Seat Height: 815 mm / 32.1 in.
Dry Weight: 168 kg / 370 lbs
Wet Weight: 192 kg / 424 lb
Fuel Capacity: 18 Litres / 4.8 US gal
Average Consumption: 5.6 l/100 km / 18 km/l / 42.5 mpg
Standing ¼ mile: 10.4 sec / 214 km/h / 133 mph
Top Speed: 286 km/h / 178 mph
Colours: AndesBlue Metallic (with red and white) Black (with gunpowder matte black) Lapis Blue Metallic (with yellow and white)
