Honda CBR 650F (2014) technical specifications

Honda CBR 650F technical specifications

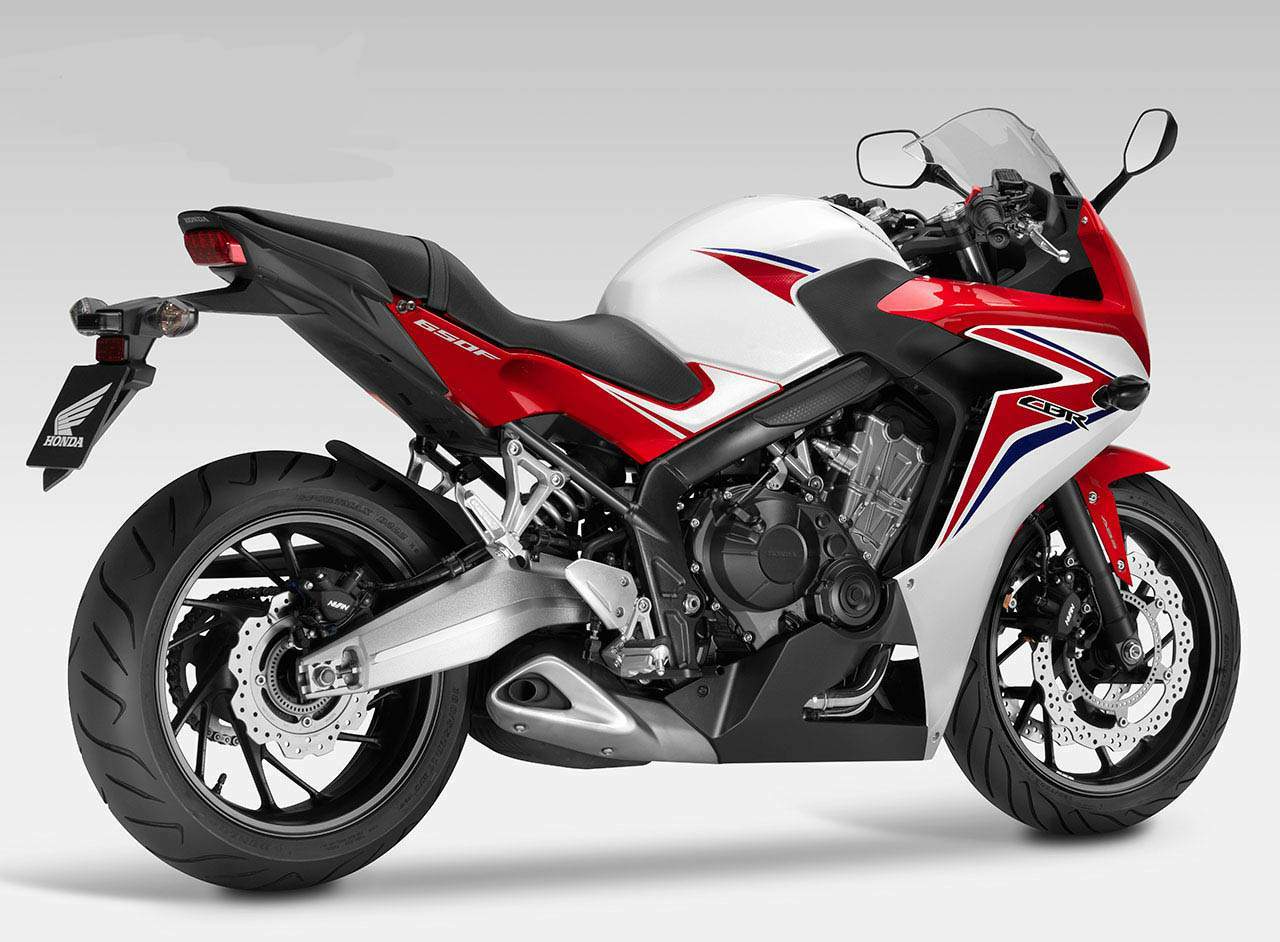

Honda CBR 650F is produced in 2014. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder., displacement 649 cc / 39.6 cu-in , produces power 64 kW / 85.8 hp @ 11000rpm (95/1/EC) and 63 Nm / 46.4 lb-ft @ 8,000rpm (95/1/EC). Honda CBR 650F wet weight is 212 kg / 461 lbs. Honda CBR 650F has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: CBR 650F
Years: 2014
Engine: Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity: 649 cc / 39.6 cu-in
Bore x Stroke: 67 x 46mm
Compression Ratio: 11.4:1
Cooling System: Liquid cooled
Induction: PGM-FI electronic fuel injection
Ignition: Digital transistorized with electronic advance
Starting: Electric
Max Power: 64 kW / 85.8 hp @ 11000rpm (95/1/EC)
Max Torque: 63 Nm / 46.4 lb-ft @ 8,000rpm (95/1/EC)
Clutch: Wet, multiplate with coil springs
Transmission: Close-ratio 6 Speed
Final Drive: #525 O-ring chain
Frame: Steel diamond
Front Suspension: 41mm conventional telescopic fork
Front Wheel Travel: 108 mm / 4.3 in
Rear Suspension: Monoshock damper with adjustable preload
Rear Wheel Travel: 127 mm / 5.0 in
Front Brakes: 2x 320mm discs 2 piston calipers
Rear Brakes: Single 220mm disc 1 piston caliper
Wheels: Hollow-section 5-spoke cast aluminium;
Front Wheel: 17M/C x MT3.5;
Rear Wheel: 17M/C x MT5.5
Front Tyre: 120/70-ZR17M/C (58W)
Rear Tyre: 180/55-ZR17M/C (73W)
Rake: 25.5°
Trail: 101 mm / 3.9 in
Dimensions: Length 2110 mm / 83 in Width 755 mm / 29.7 in Height 1145 mm / 45.0 in
Wheelbase: 1450 mm / 57.0 in
Seat Height: 810 mm / 31.9 in
Ground Clearance: 130 mm / 5.1 in
Wet Weight: 212 kg / 461 lbs
Oil Capacity: 3.5 Litres
Fuel Capacity: 17.3 Liters / 4.5 gal
Instruments: Digital speedometer, digital bar graph tachometer, dual trip meter, digital bar graph fuel gauge, digital clock
