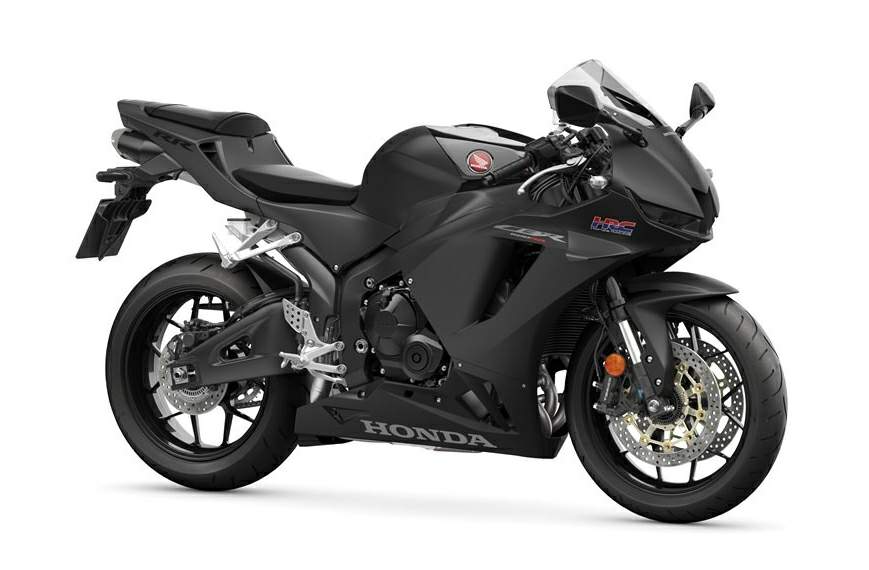

Honda CBR 600RR (2024) technical specifications

Honda CBR 600RR is produced in 2024. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder., displacement 599 cc / 36.5 cu-in cc / 36.5 cu-in , produces power 119 hp / 89 kW @ 14250 rpm and 63 Nm / 46.5 lb-ft @ 11500 rpm. Honda CBR 600RR wet weight is 193 kg / 425 lbs. Honda CBR 600RR has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CBR 600RR
Years:	2024
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity:	599 cc / 36.5 cu-in cc / 36.5 cu-in
Bore x Stroke:	67 x 42.5 mm
Compression Ratio:	12.2:1
Cooling System:	Liquid cooled
Lubrication:	Wet sump
Engine Oil:	Synthetic, 10W/40
Induction:	Programmed Dual Stage Fuel Injection (PGM-DSFI); 40mm throttle bodies, Denso 12-hole injectors
Ignition:	Computer-controlled digital transistorized with electronic advance and independent four-cylinder 3D-mapped computer control.
Battery:	12-9.1Ah YTZ10S
Starting:	Electric
Max Power:	119 hp / 89 kW @ 14250 rpm
Max Torque:	63 Nm / 46.5 lb-ft @ 11500 rpm
Clutch:	Wet multiplate hydraulic clutch
Transmission:	Close-ratio 6 Speed
Final Drive:	#525 O-ring chain
Frame:	Aluminium, twin spar
Front Suspension:	41mm inverted Big Piston Fork with spring preload, rebound and compression damping adjustability
Front Wheel Travel:	120 mm / 4.3 in
Rear Suspension:	Fully adjustable Showa rear shock operating through Unit Pro-Link
Rear Wheel Travel:	128 mm / 5.0 in
Front Brakes:	2x 310mm discs with radial-mount 4 piston calipers
Rear Brakes:	Single 220mm disc 1 piston caliper
ABS:	2 Channel
Front Wheel:	17M/CxMT3.50
Rear Wheel:	17M/CcMT5.50
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	24.06?
Trail:	100 mm / 3.9 in
Dimensions:	Length: 2030 mm / 79.9 in Width: 685 mm / 27.0 in Height: 1140 mm / 44.9 in
Seat Height:	820 mm / 32.3 in
Wheelbase:	1370 mm / 53.9 in
Ground clearance::	125 mm / 4.9 in
Wet Weight:	193 kg / 425 lbs
Fuel Capacity:	18 liters / 4.8 gal
