Honda CBR 125R (2005) technical specifications

Honda CBR 125R technical specifications

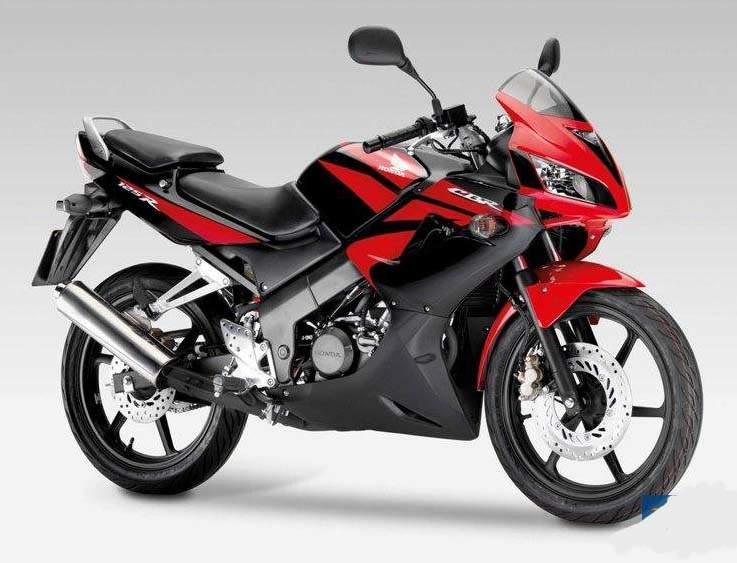

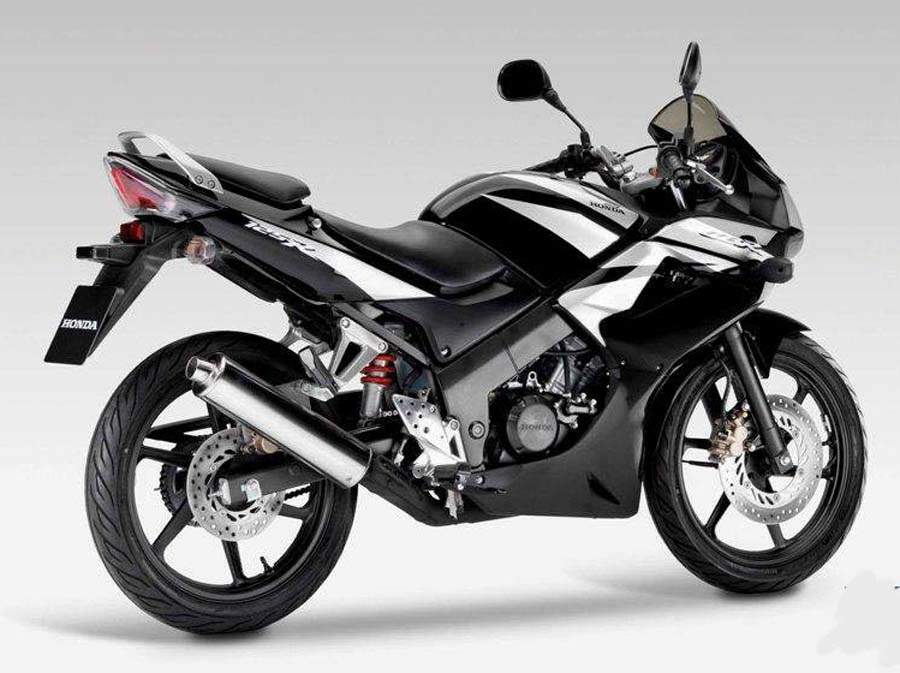

Honda CBR 125R is produced in 2005. Engine is Four stroke single cylinder, SOHC, 2 valve., displacement 124.7 cc / 7.6 cu-in , produces power 13.6 hp / 10 kW @ 10000 rpm and 10.6 Nm / 1.08 kg-m @ 8250 rpm. Honda CBR 125R top speed is 112.7 km/h / 70 mph. Honda CBR 125R weighs 115 kg / 253.5 lbs. Honda CBR 125R has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: CBR 125R
Years: 2005
Engine: Four stroke single cylinder, SOHC, 2 valve.
Capacity: 124.7 cc / 7.6 cu-in
Bore x Stroke: 58 x 47.2 mm
Cooling System: Liquid cooled
Compression Ratio: 11.0:1
Lubrication: Wet sump
Engine Oil: Semi-Synthetic, 10W/30
Induction: 28mm VK-type carburetor
Ignition: Capacitor Discharge (CDI)
Spark Plug: NGK, CR8E
Starting: Electric
Max Power: 13.6 hp / 10 kW @ 10000 rpm
Max Torque: 10.6 Nm / 1.08 kg-m @ 8250 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: Chain
Frame: Steel, Double cradle frame
Front Suspension: 31mm telescopic fork,
Front Wheel Travel: 109 mm / 4.2 in
Rear Suspension: Monoshock damper,
Rear Wheel Travel: 120 mm / 4.7 in
Front Brakes: Single 276mm disc 2 piston caliper
Rear Brakes: Single 220mm disc 1 piston caliper
Front Tyre: 80/80 –17
Rear Tyre: 100/80 –17
Rake: 25°
Trail: 88 mm / 3.4 in
Dimensions: Length 1920 mm / 75.5 in Width 675 mm / 26.5 in Height 1070 mm / 42.2 in
Wheelbase: 1294 mm / 50.9 in
Seat Height: 776 mm / 30.6 in
Ground Clearance: 172 mm / 6.8 in
Dry Weight: 115 kg / 253.5 lbs
Wet Weight: 127 kg / 280.0 lbs
Fuel Capacity: 10 Litres / 2.6 gal
Standing ¼ Mile: 19.9 sec
Top Speed: 112.7 km/h / 70 mph
