Honda CBR 1000RR-SP Fireblade Limited Edition (2017) technical specifications

Honda CBR 1000RR-SP Fireblade Limited Edition technical specifications

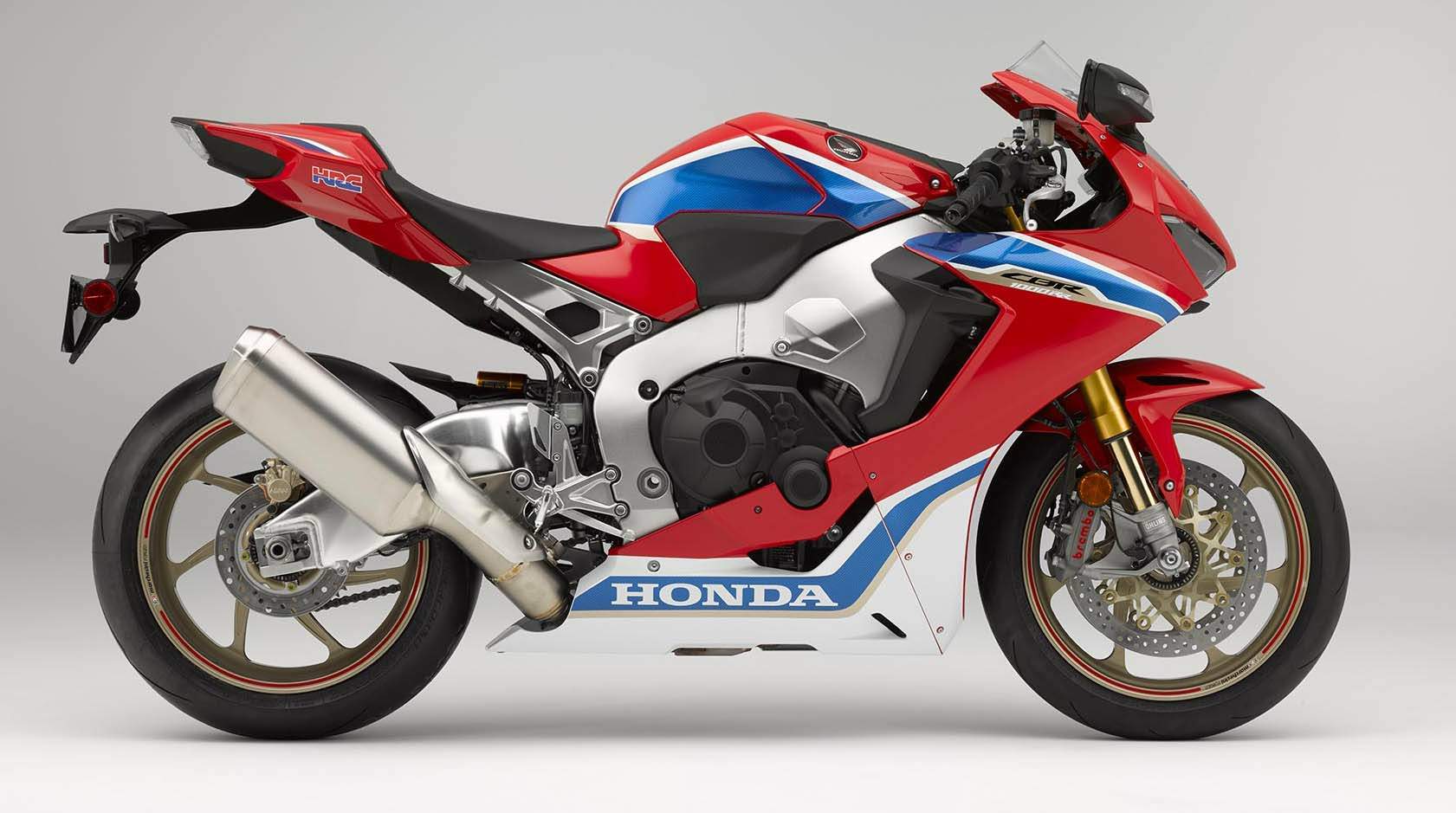

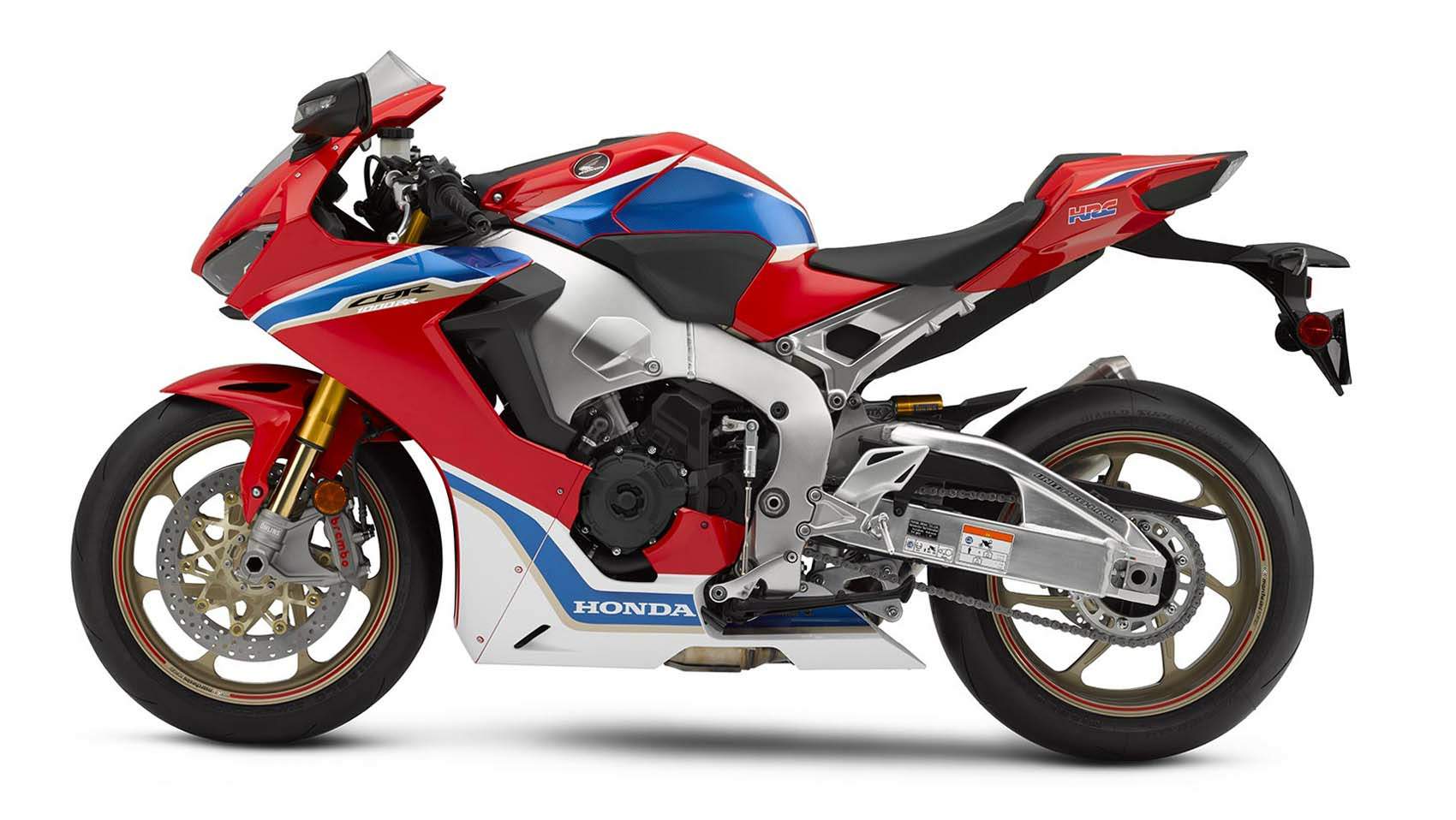

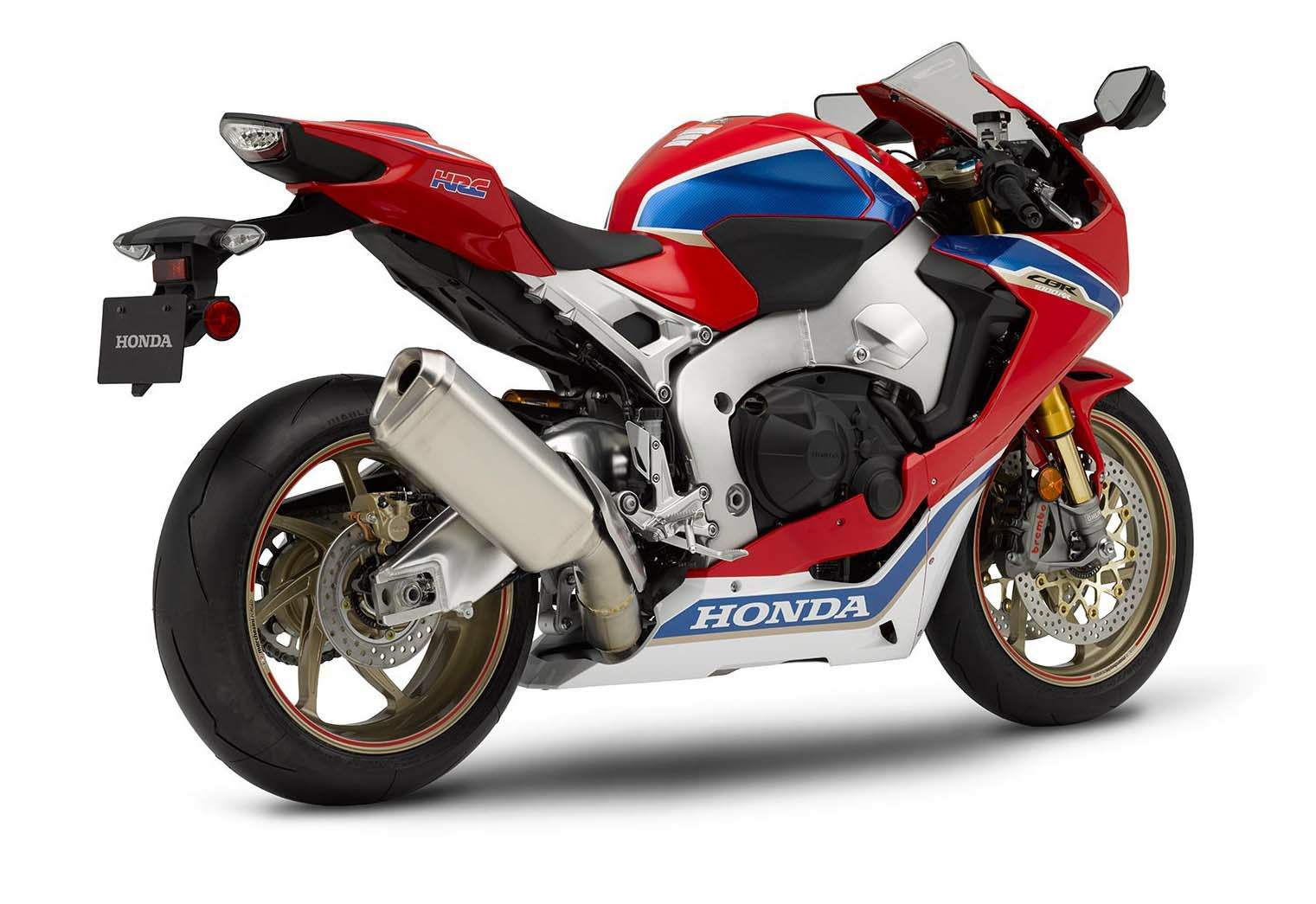

Honda CBR 1000RR-SP Fireblade Limited Edition is produced in 2017. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder., displacement 999 cc / 60.9 in cc / 60.9 cu-in , produces power 141 kW / 189 hp @ 13000rpm and 116 Nm / 85.5 lb-ft @ 11000 rpm. Honda CBR 1000RR-SP Fireblade Limited Edition wet weight is 195 kg / 430 lbs. Honda CBR 1000RR-SP Fireblade Limited Edition has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: CBR 1000RR-SP Fireblade Limited Edition
Years: 2017
Engine: Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity: 999 cc / 60.9 in cc / 60.9 cu-in
Bore x Stroke: 76 x 55.1 mm
Compression Ratio: 13.0:1
Cooling System: Liquid cooling
Lubrication: Wet sump
Engine Oil: Synthetic, 10W/40
Induction: Injection. Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors
Ignition: Computer-controlled digital transistorized with 3-D mapping
Starting: Electric
Max Power: 141 kW / 189 hp @ 13000rpm
Max Torque: 116 Nm / 85.5 lb-ft @ 11000 rpm
Clutch: Wet, multiplate with diaphragm spring
Transmission: 6 Speed
Final Drive: #530 O-ring - sealed chain
Frame: Diamond; aluminium composite twin spar
Front Suspension: Telescopic inverted fork with an inner tube diameter of 43mm, and a NIX30 Smart-EC Öhlins Front Fork with preload, compression and rebound adjustments
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Unit Pro-Link with gas-charged TTX36 Smart-EC Öhlins damper featuring preload and compression and rebound damping adjustment
Rear Wheel Travel: 132 mm / 5.2 in
Front Brakes: 2x 320 mm hydraulic disc with Tokico radial mounted calipers and high performance track ready pads Rear.
Rear Brakes: Single 220mm disc, Combined ABS and sintered metal pads
ABS: Electronically controlled ABS
Front Tyre: 120/70ZR17 58W
Rear Tyre: 190/50ZR17 73W
Rim Size Front: 17 x MT3.50
Rim Size Rear: 17 x MT6.00
Rake (Caster Angle): 23°2
Trail: 96.2 mm / 3.8 in
Dimensions: Length 205 mm / 81.7 in Width 720 mm / 32.3 in Height 1125 mm / 44.7 in
Wheelbase: 1405 mm / 55.3 in
Seat Height: 820 mm / 32.3 in
Ground Clearance: 129mm / 5.1 in
Wet Weight: 195 kg / 430 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
