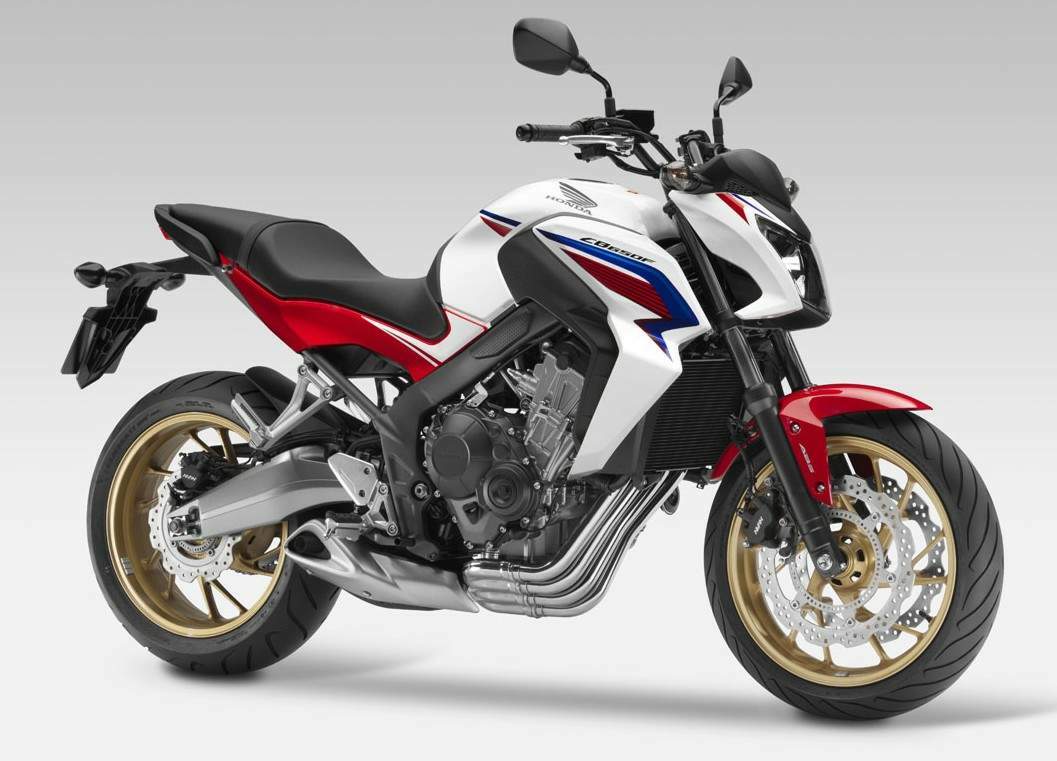

Honda CB 650F (2014) technical specifications

Honda CB 650F is produced in 2014. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 649 cc / 39.6 cu-in , produces power 85.8 hp / 63.9 kW @ 11000 rpm and 46.4 lb-ft / 62.9 Nm @ 8000 rpm. Honda CB 650F wet weight is 208.0 kg / 458.6 lbs. Honda CB 650F has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CB 650F
Years:	2014
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity:	649 cc / 39.6 cu-in
Bore x Stroke:	67 x 46 mm
Cooling System:	Liquid cooled.
Compression Ratio:	11.4:1
Induction:	PGM-FI Electronic Fuel Injection
Ignition:	Computer-controlled digital transistorised with electronic advance
Starting:	Electric
Max Power:	85.8 hp / 63.9 kW @ 11000 rpm
Max Torque:	46.4 lb-ft / 62.9 Nm @ 8000 rpm
Clutch:	Wet, multiplate with coil springs
Transmission:	6 Speed
Final Drive:	#525 O-ring sealed chain
Frame:	Steel diamond twin spar
Front Suspension:	41mm telescopic fork
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Monoshock with adjustable preload
Rear Wheel Travel:	128 mm / 5.0 in
Front Brakes:	2x 320mm hydraulic discs with dual piston calipers
Rear Brakes:	Single 240mm disc with single piston caliper
Front Tyre:	120/70-ZR17
Rear Tyre:	180/55-ZR17
Trail:	101 mm / 4.0 in
Dimensions:	Length 2110 mm / 83 in Width 775 mm / 29.7 in Height 1120 mm / 45 in
Wheelbase:	1450 mm / 57.1 in
Seat Height:	810 mm / 31.8 in
Ground Clearance:	150 mm / 5.1 in
Wet Weight:	208.0 kg / 458.6 lbs
Fuel Capacity:	17.3 Litres / 4.5 US gal
