Honda CB 650 Custom (1980-81) technical specifications

Honda CB 650 Custom technical specifications

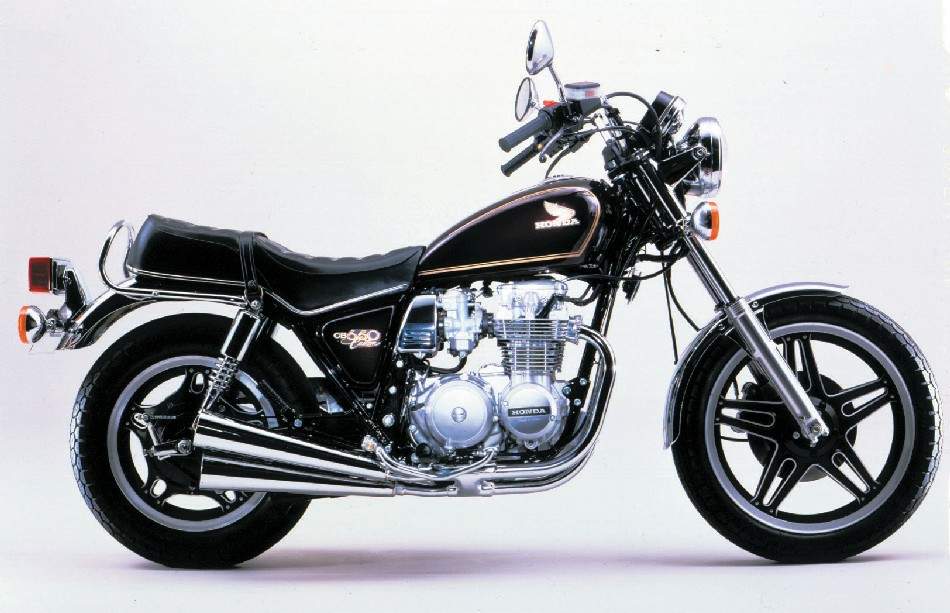

Honda CB 650 Custom is produced in 1980-81. Engine is Four stroke, transverse four cylinder, SOHC, 2 valves per cylinder., displacement 626.8 cc / 38.2 cu-in , produces power 63 hp / 46.9 kW @ 9000 rpm and 51.5 Nm / 38 lb-ft @ 8000 rpm. Honda CB 650 Custom weighs 220 kg / 485 lbs. Honda CB 650 Custom has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: CB 650 Custom
Years: 1980-81
Engine: Four stroke, transverse four cylinder, SOHC, 2 valves per cylinder.
Capacity: 626.8 cc / 38.2 cu-in
Bore x Stroke: 59.8 x 55.8 mm
Cooling System: Air cooled.
Compression Ratio: 9.0:1
Induction: 4x 26mm Keihin carburetors
Ignition: Transistorized
Starting: Electric
Max Power: 63 hp / 46.9 kW @ 9000 rpm
Max Torque: 51.5 Nm / 38 lb-ft @ 8000 rpm
Transmission: 5 Speed
Final Drive: Chain
Front Suspension: Centre axle coil spring forks
Front Wheel Travel: 135 mm / 5.3 in
Rear Suspension: Dual Showa dampers. adjustable spring preload.
Rear Wheel Travel: 91 mm / 3.5 in
Front Brakes: Single 275mm discs 1 piston calipers
Rear Brakes: 180mm Drum
Front Tyre: 3.50-19
Rear Tyre: 130/90-16
Trail: 121 mm / 4.6 in
Wheelbase: 1480 mm / 58.3 in
Seat Height: 760 mm / 30.1 in
Dry Weight: 220 kg / 485 lbs
Fuel Capacity: 13.5 Litres / 3.5 US gal
