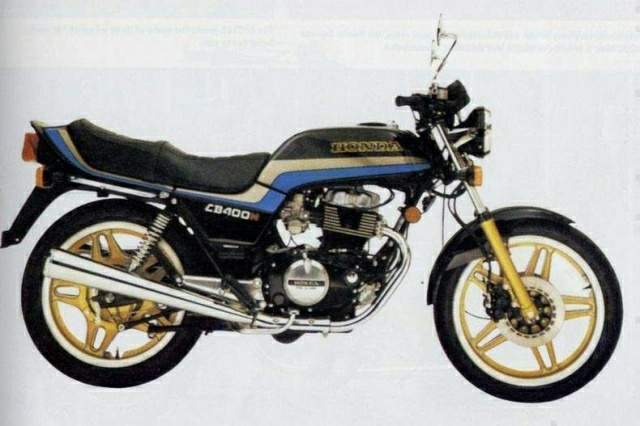

1978 Honda CB 400N Super Dream technical specifications
Technical specifications
|
|
|---|---|
| Model: | CB 400N Super Dream |
| Years: | 1978-79 |
| Engine: | Four stroke, parallel twin cylinder, SOHC, 3 valves per cylinder, 360° crankshaft and twin balance-shafts |
| Capacity: | 395 cc / 24.1 cu-in |
| Bore x Stroke: | 70.5 x 50.6 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.3:1 |
| Induction: | 32mm Keihin carburetors |
| Ignition: | CDI |
| Starting: | Electric & kick |
| Max Power: | 34 hp / 25.47 kW @ 9500 rpm |
| Max Torque: | 28.5 Nm / @ 8000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Dual EVO dampers with 5-way spring preload adjustment. |
| Front Brakes: | 2x 239mm disc |
| Rear Brakes: | 152mm Drum |
| Front Tyre: | 3.60-19 |
| Rear Tyre: | 4.10-18 |
| Wheelbase: | 1390 m / 54.7 in |
| Seat Height: | 795 mm / 31.2 in |
| Wet-Weight: | 175.5 kg / 387 lbs |
| Fuel Capacity: | 14 Litres / 3.7 US gal |
| Consumption Average: | 52 mpg |
| Braking 60 - 0 / 100 - 0: | - / 38.1 m |
| Standing ¼ Mile: | 14.6 sec |
| Top Speed: | 166.4 km/h / 103.4 mph |
