Honda CB 300F (2017-18) technical specifications

Honda CB 300F technical specifications

Honda CB 300F is produced in 2017-18. Engine is Four stroke, single cylinder, DOHC, 4 valve per cylinder, displacement 286 cc / 17.45 cub in. , produces power 22.7 kW / 30.4 hp @ 8 500 rpm and 27 Nm / 2.75 kgf-m / 19.9 bl/ft @ 7 250 rpm. Honda CB 300F wet weight is 158 kg / 348 lbs. Honda CB 300F has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: CB 300F
Years: 2017-18

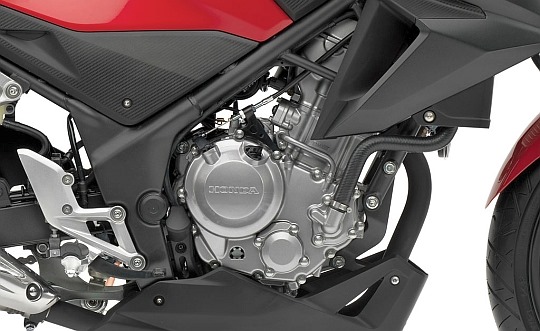

Engine: Four stroke, single cylinder, DOHC, 4 valve per cylinder
Capacity: 286 cc / 17.45 cub in.
Bore x Stroke: 76 x 63 mm
Cooling System: Liquid cooled
Compression Ratio: 10.7: 1
Induction: PGM-FI electronic fuel injection
Ignition: Computer-controlled digital transistor with electronic advance
Starting: Electric
Max Power: 22.7 kW / 30.4 hp @ 8 500 rpm
Max Torque: 27 Nm / 2.75 kgf-m / 19.9 bl/ft @ 7 250 rpm
Clutch: Wet multiplate hydraulic clutch
Transmission: 6 Speed
Final Drive: #520 O-ring-sealed chain
Frame: Diamond; steel twin-spar
Front Suspension: 37 mm telescopic fork
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Monoshock damper, Pro-Link swingarm, 5 position preload adjustability
Rear Wheel Travel: 103 mm / 4.07 in
Front Brakes: Single 296 mm disc 2 piston caliper, ABS
Rear Brakes: Single 220 mm disc 1 piston caliper
Rims: Multi-spoke cast aluminium;
Front Wheel: MT2.75 x 17M/C
Rear Wheel: MT4.00 x 17M/C
Front Tyre: 110/70-17 radial
Rear Tyre: 140/70-17 radial
Rake: 25.3°
Trail: 98 mm / 3.9 in
Dimensions: Length 2035 mm / 82.0 in Width 720 mm / 28.3 in Height 1120 mm / 44.0 in
Wheelbase: 1380 mm / 54.3
Seat Height: 780 mm / 30.7 in
Ground Clearance: 145 mm / 5.7 in
Wet Weight: 158 kg / 348 lbs
Fuel Capacity: 13 Litres / 3.4 US gal
Consumption Average: 3.3 L/100 km / 30.2 km/l / 71 US mpg
Instruments: Analogue tachometer, digital odometer, speedometer, fuel gauge, temperature gauge and clock.
