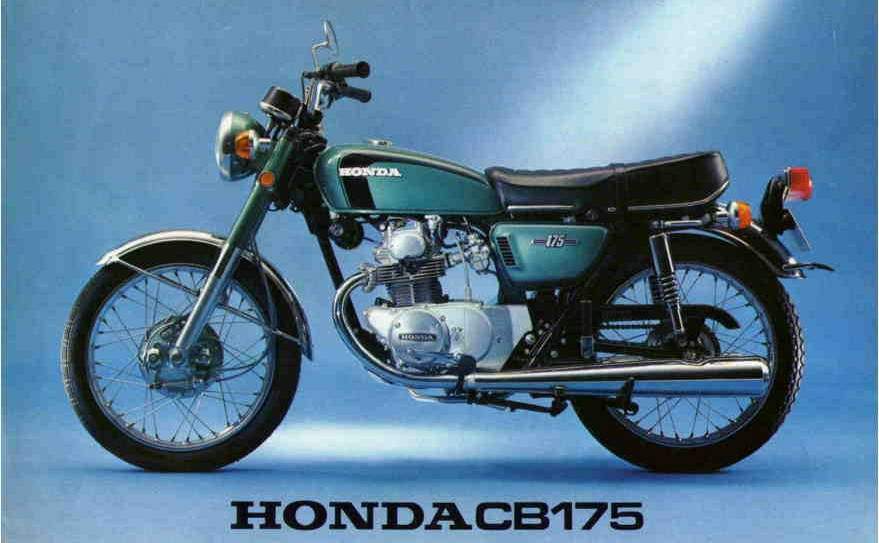

Honda CB 175 (1969-79) technical specifications
Honda CB 175 is produced in 1969-79. Engine is Four stroke, twin cylinder, OHC, 2 valve per cylinder, displacement 174 cc / 10.6 cu-in , produces power 20 hp / 14.6 kW @ 11000 rpm and 15 Nm / 11 lb-ft @ 9000 rpm. Honda CB 175 weighs 120 kg / 264 lbs. Honda CB 175 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | CB 175 |
| Years: | 1969-79 |
| Engine: | Four stroke, twin cylinder, OHC, 2 valve per cylinder |
| Capacity: | 174 cc / 10.6 cu-in |
| Bore x Stroke: | 52 x 41.0 mm |
| Compression Ratio: | 9.0:1 |
| Cooling System: | Air cooled |
| Induction: | Carburetor |
| Ignition: | |
| Starting: | Kick |
| Max Power: | 20 hp / 14.6 kW @ 11000 rpm |
| Max Torque: | 15 Nm / 11 lb-ft @ 9000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Dual shocks |
| Front Brakes: | Drum |
| Rear Brakes: | Drum |
| Front Tyre: | 2.75-18 |
| Rear Tyre: | 3.00-18 |
| Wheelbase: | 1280 mm / 50.3 in |
| Seat Height: | 770 mm / 29.3 in |
| Dry Weight: | 120 kg / 264 lbs |
| Fuel Capacity: | 11 Litres / 2.6 US gal |
