Honda CB 125R (2017-18) technical specifications

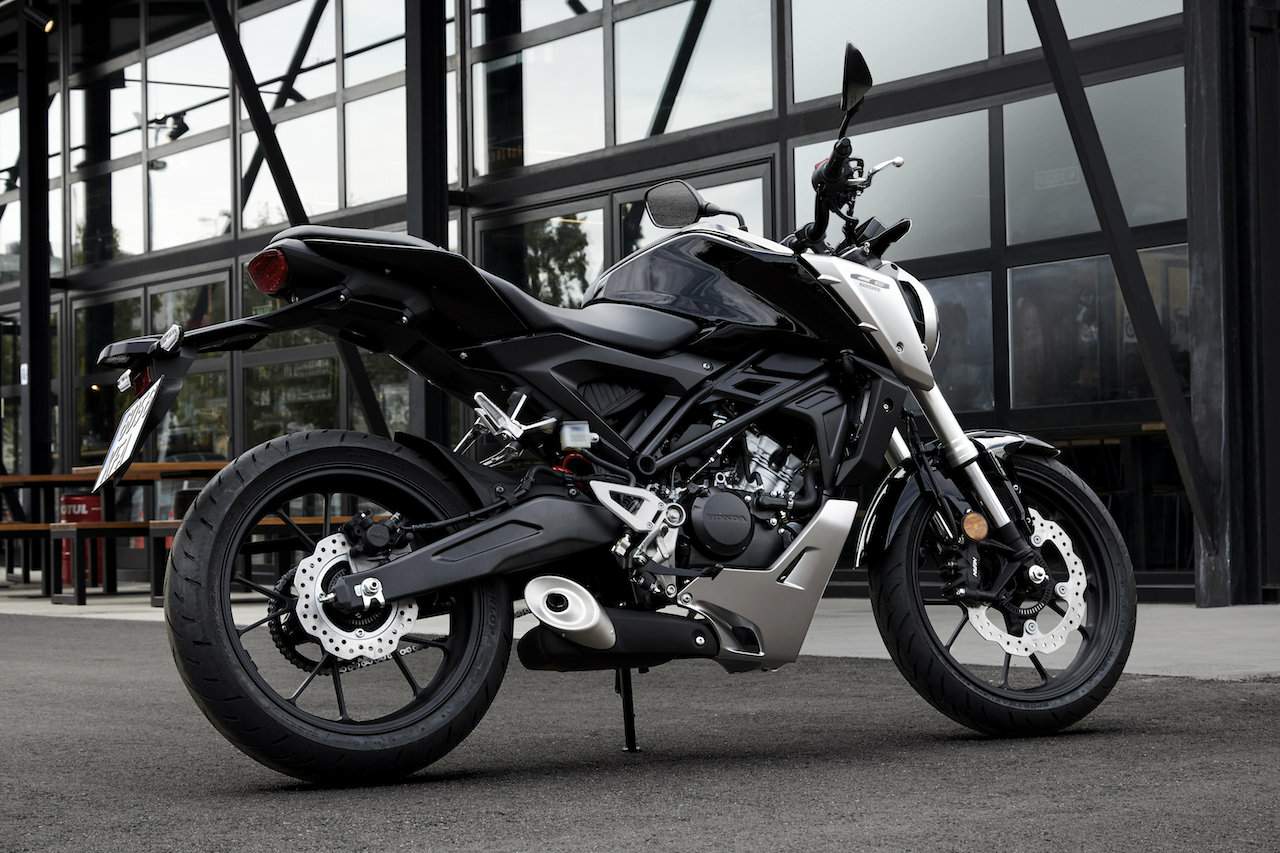

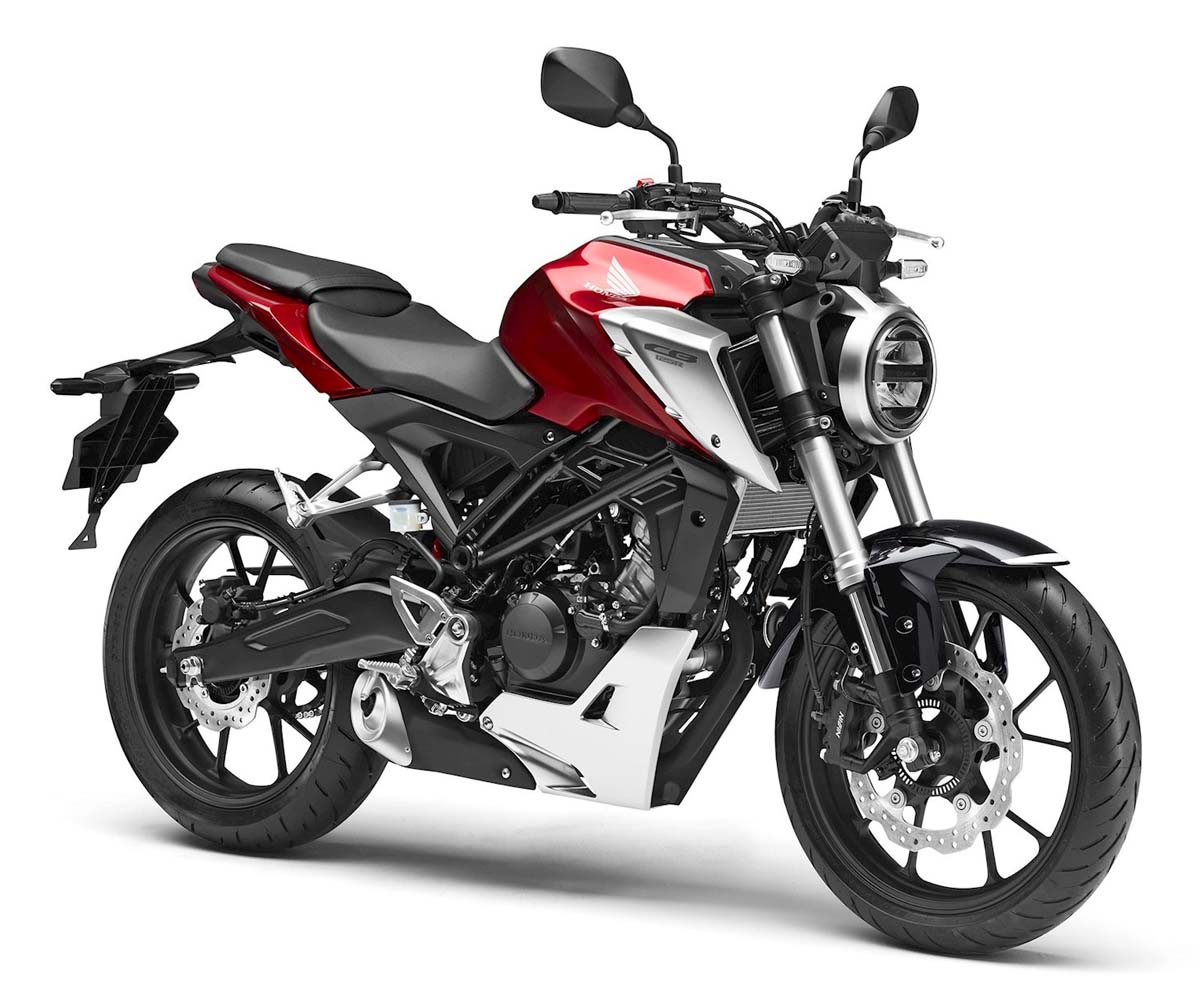

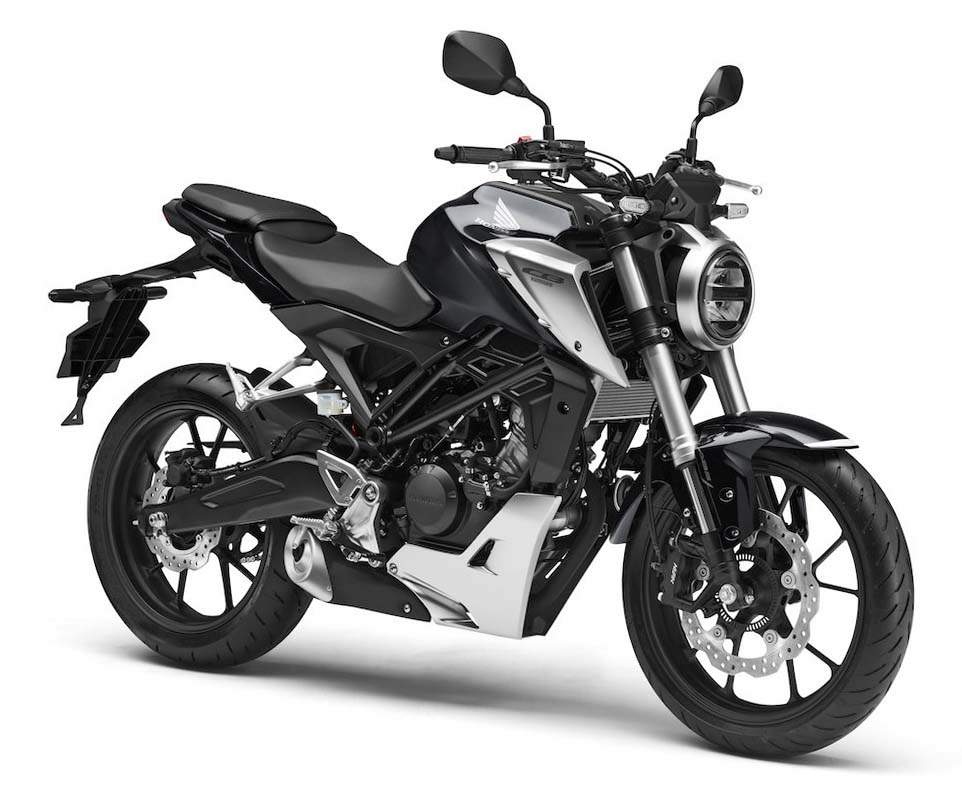

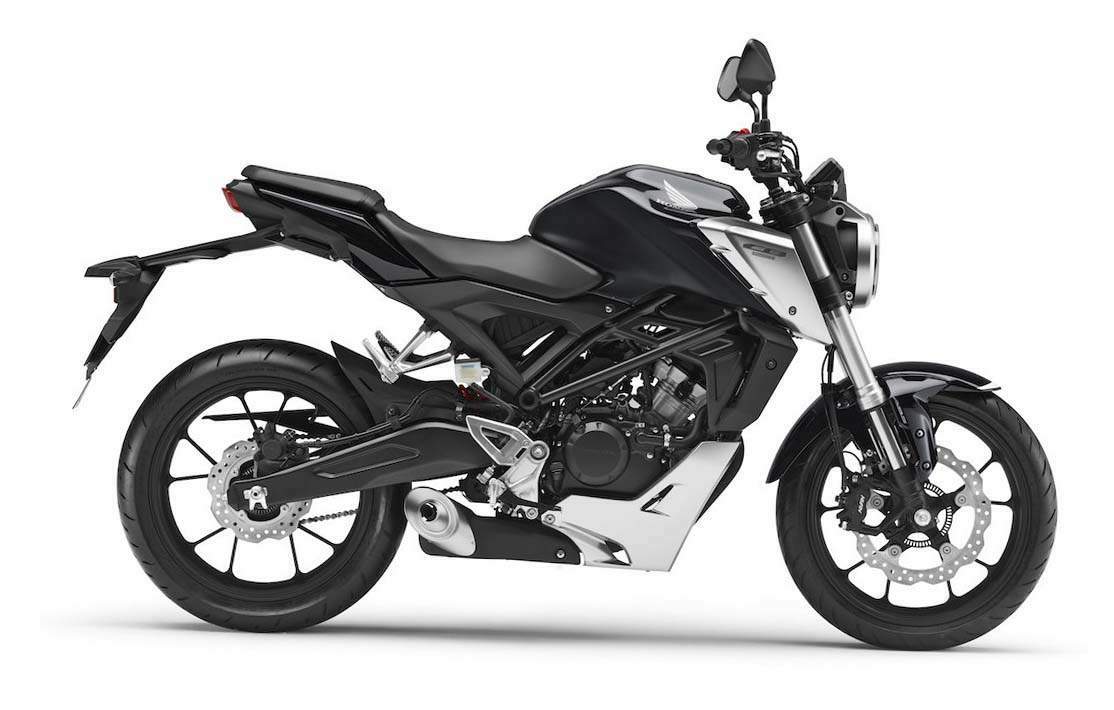

Honda CB 125R is produced in 2017-18. Engine is Four stroke, single cylinder, SOHC, two valve, displacement 124.7 cc / 7.6 cu-in , produces power 13.1 hp / 9.8 kW @ 10000 rpm and 10.2 Nm / 7.3 lb-ft @ 8000 rpm. Honda CB 125R wet weight is 126 kg / 277.7 lbs. Honda CB 125R has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CB 125R
Years:	2017-18
Engine:	Four stroke, single cylinder, SOHC, two valve
Capacity:	124.7 cc / 7.6 cu-in
Bore x Stroke:	58 x 47.2 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.0:1
Lubrication:	Wet sump
Induction:	PGM-FI electronic fuel injection
Ignition:	Digital CDI
Battery:	YTZ6V 12V 5Ah MF
Starting:	Electric
Max Power:	13.1 hp / 9.8 kW @ 10000 rpm
Max Torque:	10.2 Nm / 7.3 lb-ft @ 8000 rpm
Clutch:	Wet, multiplate with coil springs
Transmission:	6 Speed
Final Drive:	O-ring sealed chain
Frame:	Inner Pivot Diamond Frame
Front Suspension:	41mm upside-down telescopic inverted fork
Rear Suspension:	Single-damper
Front Brakes:	Single 296mm disc, four piston Nissin caliper
Rear Brakes:	Single 220mm disc, one piston caliper
ABS:	Front and rear inertial measurement unit (IMU)
Wheels:	Six spoke cast aluminium
Front Wheel:	17M/C x MT3.00
Rear Wheel:	17M/C x MT4.00
Front Tyre:	110/70R17M/C 54H
Rear Tyre:	150/60R17M/C 66H
Rake:	24.2º
Trail:	90 mm / 3.5 in
Dimensions:	Length 2015 mm / 79.3 in Width 820 mm / 32.2 in Height 1055 mm / 41.5 in
Wheelbase:	1345 mm / 52.9 in
Seat Height:	816 mm / 32.1 in
Ground Clearance:	140 mm / 5.5 in
Wet Weight:	126 kg / 277.7 lbs
Fuel Capacity:	10 Litres / 2.6 US gal
