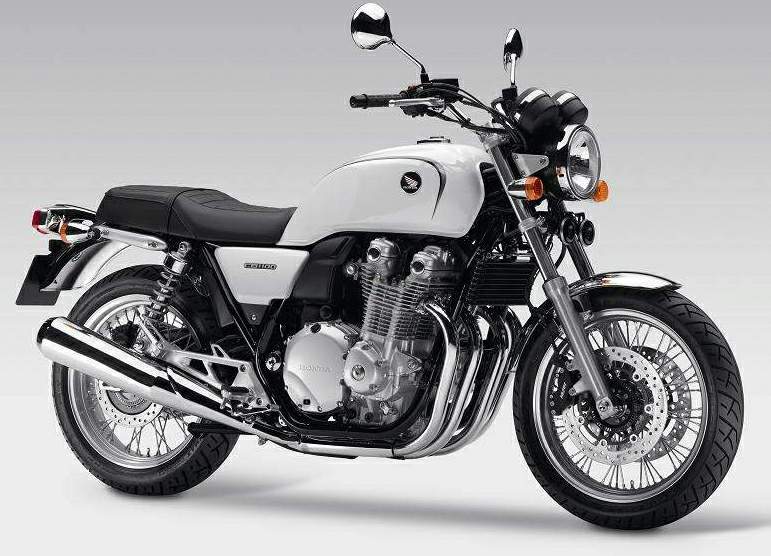

Honda CB 1100EX (2016) technical specifications
Honda CB 1100EX is produced in 2016. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder., displacement 1140 cc/ 69.5 cu-in , produces power 66 kW / 88.5 hp @ 7500 rpm and 93 Nm / 68.5 lb-ft @ 5000 rpm. Honda CB 1100EX wet weight is 260 kg / 573.2 lbs. Honda CB 1100EX has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | CB 1100EX |
| Years: | 2016 |
| Engine: | Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder. |
| Capacity: | 1140 cc/ 69.5 cu-in |
| Bore x Stroke: | 73.5 x 67.2 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.5:1 |
| Induction: | PGM-FI electronic fuel injection Throttle Bore 32mm |
| Lubrication: | Wet sump |
| Oil capacity: | 4.9 Litres |
| Ignition: | Full-transistor battery ignition / electric |
| Spark Plug: | NGK LMAR8A - 9S |
| Battery: | YTZ14S WET 12V-11.2Ah |
| Starting: | Electric |
| Max Power: | 66 kW / 88.5 hp @ 7500 rpm |
| Max Torque: | 93 Nm / 68.5 lb-ft @ 5000 rpm |
| Clutch: | Multi-plate wet clutch |
| Transmission: | 6 Speed |
| Final Drive: | Chain 2.166 (39/18) |
| Frame: | Type Double steel cradle |
| Turning Radius: | 2.7m |
| Front Suspension: | 41mm conventional fork |
| Front Wheel Travel: | 106 mm / 4.2 in |
| Rear Suspension: | Spring preload adjustable, Dual shocks |
| Rear Wheel Travel: | 114.3 mm / 4.5 in |
| Front Brakes: | 2x 296mm discs 4 piston calipers |
| Rear Brakes: | Single 256mm disc |
| Wheels: | Wire spoke |
| Front Tyre: | 110/80 R18 |
| Rear Tyre: | 140/70 -R18 |
| Trail: | 114 mm / 4.4 in |
| Caster: | 27° |
| Dimensions: | Length 2195 mm / 86.4 Width 835 mm / 32.8 in Height 1130 mm / 44.4 in |
| Wheelbase: | 1490 mm / 58.7 in |
| Seat Height: | 795 mm / 31.2 in |
| Wet Weight: | 260 kg / 573.2 lbs |
| Ground Clearance: | 135 mm / 5.3 in |
| Fuel Capacity: | 17.5.Litres / 4.6 gal |
| Reserve: | 3.5 Litres |
