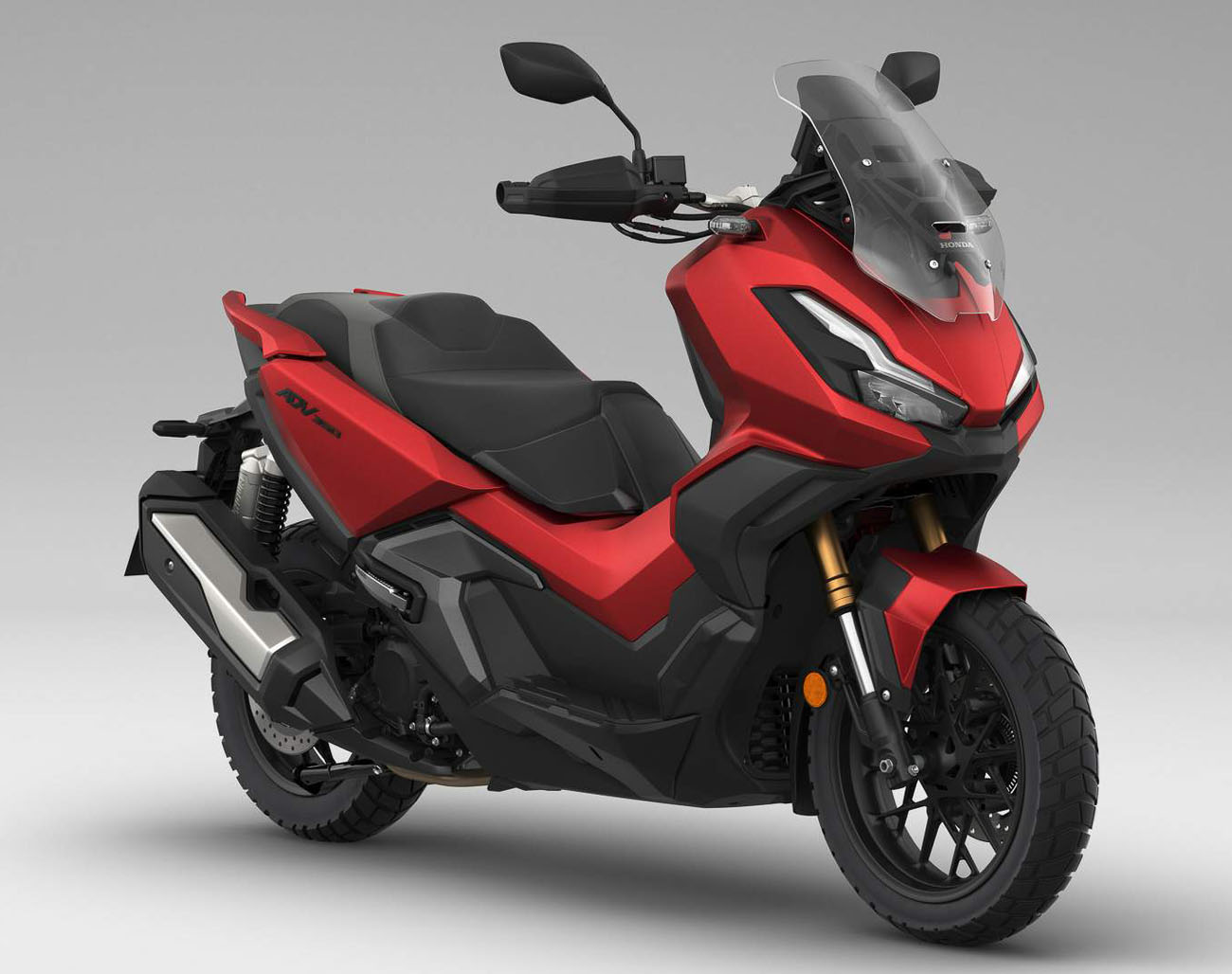

Honda ADV 350 (2022) technical specifications

Honda ADV 350 technical specifications

Honda ADV 350 is produced in 2022. Engine is Four stroke, single cylinder, SOHC, 4-valve, displacement 330 cc / 20.1 cu-in , produces power 21.5 kW / 28.8 horsepower @ 7500 rpm and 31.5 Nm / 23.2 lb-ft @ 5250 rpm. Honda ADV 350 wet weight is 186kg / 410 lbs. Honda ADV 350 has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: ADV 350
Years: 2022
Engine: Four stroke, single cylinder, SOHC, 4-valve
Capacity: 330 cc / 20.1 cu-in
Bore x Stroke: 77 x 70.8mm
Cooling System: Liquid cooled
Compression Ratio: 10.5:1
Emission: Euro 5
Induction: PGM-FI electronic fuel injection
Ignition: Fully transistorised ignition
Starting: Electric
Max Power: 21.5 kW / 28.8 horsepower @ 7500 rpm
Max Torque: 31.5 Nm / 23.2 lb-ft @ 5250 rpm
Clutch: Automatic centrifugal dry type
Transmission: CVT
Final Drive: V-Belt
Frame: Steel underbone
Front Suspension: 37mm Upside down forks
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Twin shock
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: Single 256mm disc, 2 piston Nissin caliper
Rear Brakes: Single 240mm disc, 1 piston Nissin caliper
ABS: 2-channel ABS
Wheels: Six spoke cast aluminium
Front Tyre: 120/70-15MC 56P
Rear Tyre: 140/70-14MC 62P
Rake: 26.5°
Trail: 89 mm / 3.5 in
Dimensions: Length : 2200 mm / 86.6 in Width: 895 mm / 35.2 in Height: 1430 mm / 56.2 in
Wheelbase: 1520 mm / 59.8 in
Seat Height: 795 mm / 31.3 in
Ground Clearance: 145 mm / 5.7 in
Wet Weight: 186kg / 410 lbs
Fuel Capacity: 11.7 Litres / 3.0 US gal
