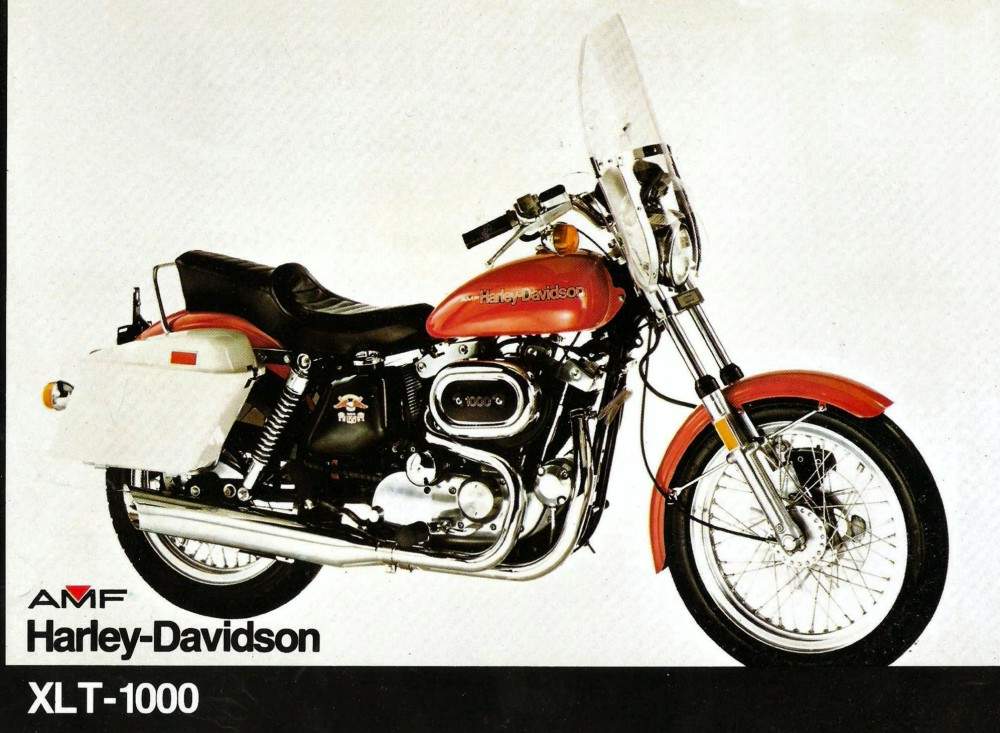

Harley-Davidson Harley Davidson XLT 1000 Touring Sportster "Baby Dresser". (1977) technical specifications
Harley-Davidson Harley Davidson XLT 1000 Touring Sportster "Baby Dresser". is produced in 1977. Engine is Four stroke, 45° V-Twin, OHV, 2 valves per cylinder, displacement 998 cc / 60.8 cu-in , produces power 57 hp / 41.7 kW @ 6000 rpm and 55 ft-lb / 74 Nm @ 4000 rpm. Harley-Davidson Harley Davidson XLT 1000 Touring Sportster "Baby Dresser". wet weight is 262 kg / 578 lbs. Harley-Davidson Harley Davidson XLT 1000 Touring Sportster "Baby Dresser". has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson XLT 1000 Touring Sportster "Baby Dresser". |
| Years: | 1977 |
| Production: | 1099 Units |
| Engine: | Four stroke, 45° V-Twin, OHV, 2 valves per cylinder |
| Capacity: | 998 cc / 60.8 cu-in |
| Bore x Stroke: | 81 x 96.8 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 8.8;1 |
| Induction: | 38mm Keihin carburetor |
| Ignition: | Transistorized |
| Starting: | Electric |
| Max Power: | 57 hp / 41.7 kW @ 6000 rpm |
| Max Torque: | 55 ft-lb / 74 Nm @ 4000 rpm |
| Transmission: | 4 Speed |
| Final Drive: | Chain |
| Gear Ratio: | 1st: 10.63; 2nd: 7.70;rd: 5.87; 4th: 4.22 |
| Front Suspension: | Telehydraulic forks |
| Rear Suspension: | Dual shocks swinging arm fork |
| Front Brakes: | 2x 292mm discs |
| Rear Brakes: | 200mm Drum |
| Front Tyre: | 3.75-19 |
| Rear Tyre: | 4.25-18 |
| Castor: | 61° |
| Trail:: | 114 mm / 4.5 in |
| Dimensions: | Length 2217 mm / 87.3 in |
| Wheelbase: | 1486 mm / 58.5 in |
| Oil Capacity: | 5.8 pints |
| Wet Weight: | 262 kg / 578 lbs |
| Fuel Capacity: | 13.5 Litres / 3.5 gal |
