Technical specifications
|
| Model: |

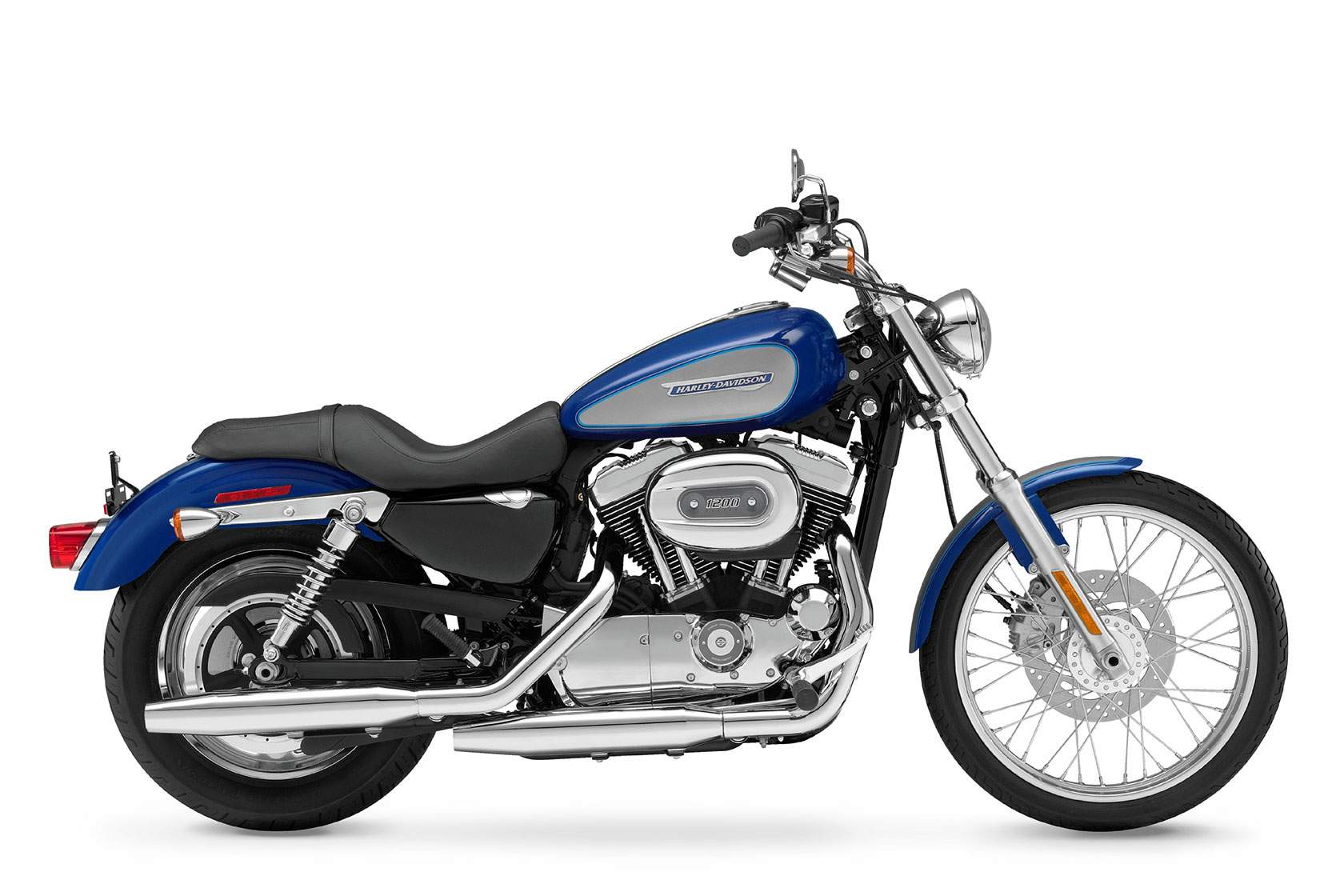

Harley Davidson XL 1200C Sportster Custom |
| Years: |
2009-10 |
|
Engine:
|
Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.
|
|
Capacity:
|
1199 cc / 73.2 cub in.
|
|
Bore x Stroke:
|
88.8 x 96.8 mm
|
|
Cooling System:
|
Air cooled,
|
|
Compression Ratio:
|
9.7:1
|
|
Induction:
|
Electronic Sequential Port Fuel Injection (ESPFI)
|
|
Ignition:
|
Digital CDI
|
|
Starting:
|
Electric
|
|
Max Torque:
|
79 ft/lbs./ 107 Nm @ 3500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Belt
|
|
Gear Ratio:
|
1st 9.315 2nd 6.653 3rd 4.948 4th 4.102 5th 3.517
|
|
Frame:
|
Mild steel, tubular frame; circular sections; cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
|
|
Front Suspension:
|
39mm Fork,
|
|
Front Wheel Travel:
|
144 mm / 5.6 in
|
|
Rear Suspension:
|
Coil-over; preload dual-adjustable,
|
|
Rear Wheel Travel:
|
54 mm / 2.1 in
|
|
Front Brakes:
|
Single 300mm discs 2 38mm piston caliper
|
|
Rear Brakes:
|
Single 300mm discs 2 38mm piston caliper
|
|
Front Wheel:
|
Chrome, 5-Spoke Cast Aluminum
|
|
Rear Wheel:
|
Chrome, 5-Spoke Cast Aluminum
|
|
Front Tyre:
|
D402F MH90-21 54H
|
|
Rear Tyre:
|
D401 150/80B16 71H
|
|
Rake:
|
30°
|
|
Trail:
|
107 mm / 4.2 in
|
|
Dimensions:
|
Length 2225 mm / 87.6 in
|
|
Wheelbase:
|
1520 / 59.8 in
|
|
Seat Height:
|
Laden2 26.6 in / 675.64 mm Unladen 28.5 in / 723.9 mm
|
|
Ground Clearance:
|
110 mm / 4.3 in
|
|
Wet Weight:
|
264 kg / 582 lbs
|
|
Oil Capacity (w/filter):
|
2.6 Litres
|
|
Fuel Capacity:
|
17 Litres / 4.5 US gal
|
