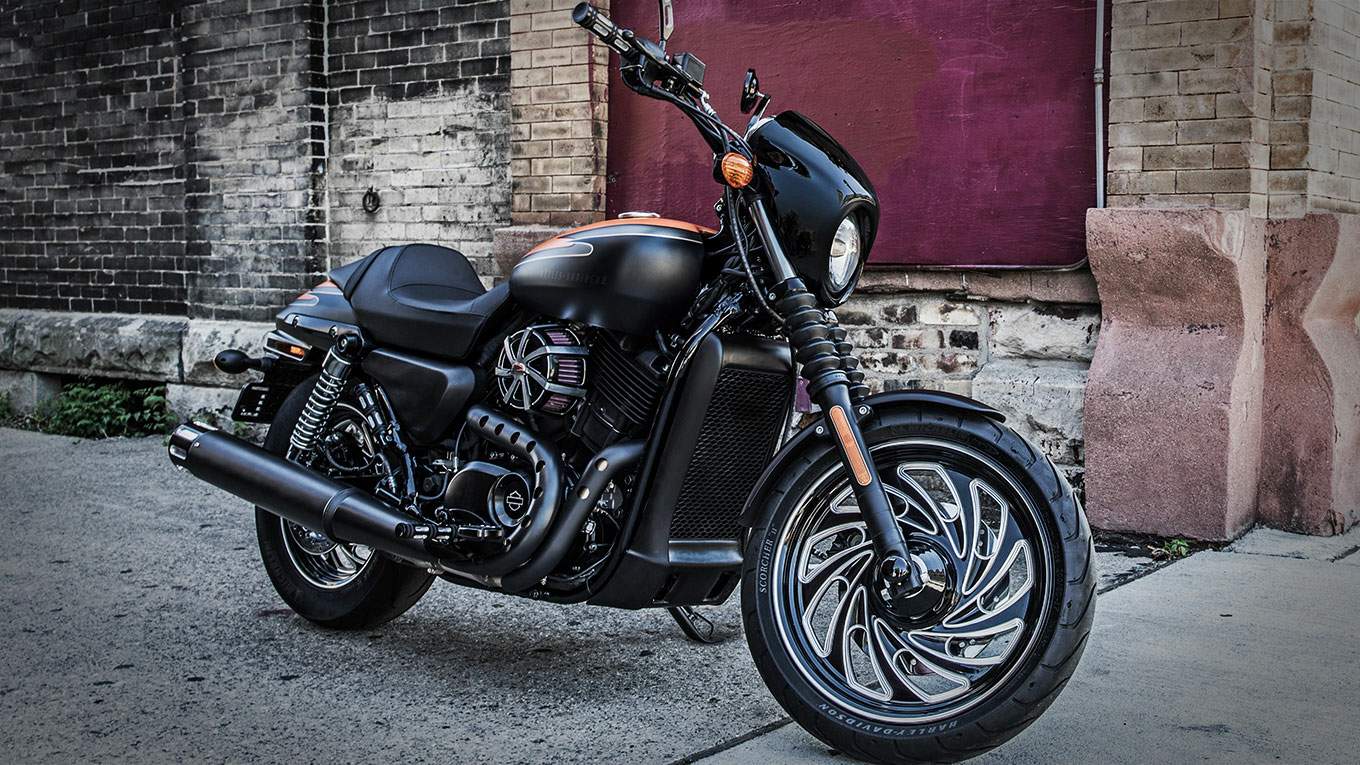

Harley-Davidson Harley Davidson XG 500 Street (2014-15) technical specifications

Harley-Davidson Harley Davidson XG 500 Street technical specifications

Harley-Davidson Harley Davidson XG 500 Street is produced in 2014-15. Engine is Four stroke, Revolution X™ 60° V-Twin, SOHC, 4 valves per cyclinder., displacement 494 cc / 30 cu in Harley-Davidson Harley Davidson XG 500 Street weighs 206 kg / 455 lbs. Harley-Davidson Harley Davidson XG 500 Street has 7 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson XG 500 Street
Years: 2014-15
Engine: Four stroke, Revolution X™ 60° V-Twin, SOHC, 4 valves per cyclinder.
Capacity: 494 cc / 30 cu in
Bore x Stroke: 69 x 66 mm
Cooling System: Liquid cooled
Compression Ratio: 11:01
Oil Capacity: 3.1 L / 3.3 US qt
Exhaust: Black, 2-into-1
Induction: Mikuni Single Port Fuel Injection, 35 mm bore
Ignition: Electronic
Starting: Electric
Max Torque: 40 Nm / 4.08 kgf-m / 29.5 ft-lb @ 3500 rpm
Primary Gear: 36:68
Transmission: 6 Speed
Final Drive: Belt
Gear Ratio: 1st 14.25 / 2nd 10.07 / 3rd 7.45 / 4th 5.99 / 5th 5.04 / 6th 4.53:1
Lean Angle, Left: 28.5º
Lean Angle, Right: 28.5º
Front Brakes: Single disc, 2 piston floating caliper
Rear Brakes: Single disc, 2 piston floating caliper
Front Wheel: Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Rear Wheel: Black, 7-Spoke Cast Aluminum with Machined Rim Highlights
Front Tyre: 100/80 R17
Rear Tyre: 140/75 R15
Rake: 32°
Trail: 110 mm / 4.5 in.
Dimension: Length: 2225 mm / 87.6 in.
Wheelbase: 1534 mm / 60.4 in.
Seat Height: Laden 654 mm / 25.7 in. Unladen 709 mm / 27.9 in.
Ground Clearance: 145 mm / 5.7 in.
Dry Weight: 206 kg / 455 lbs
Wet Weight: 222 kg / 489 lbs
Fuel Capacity: 13.1 Litres / 3.5 US gal
