Harley-Davidson Harley Davidson VRSCDX Night Rod Special (2014-15) technical specifications

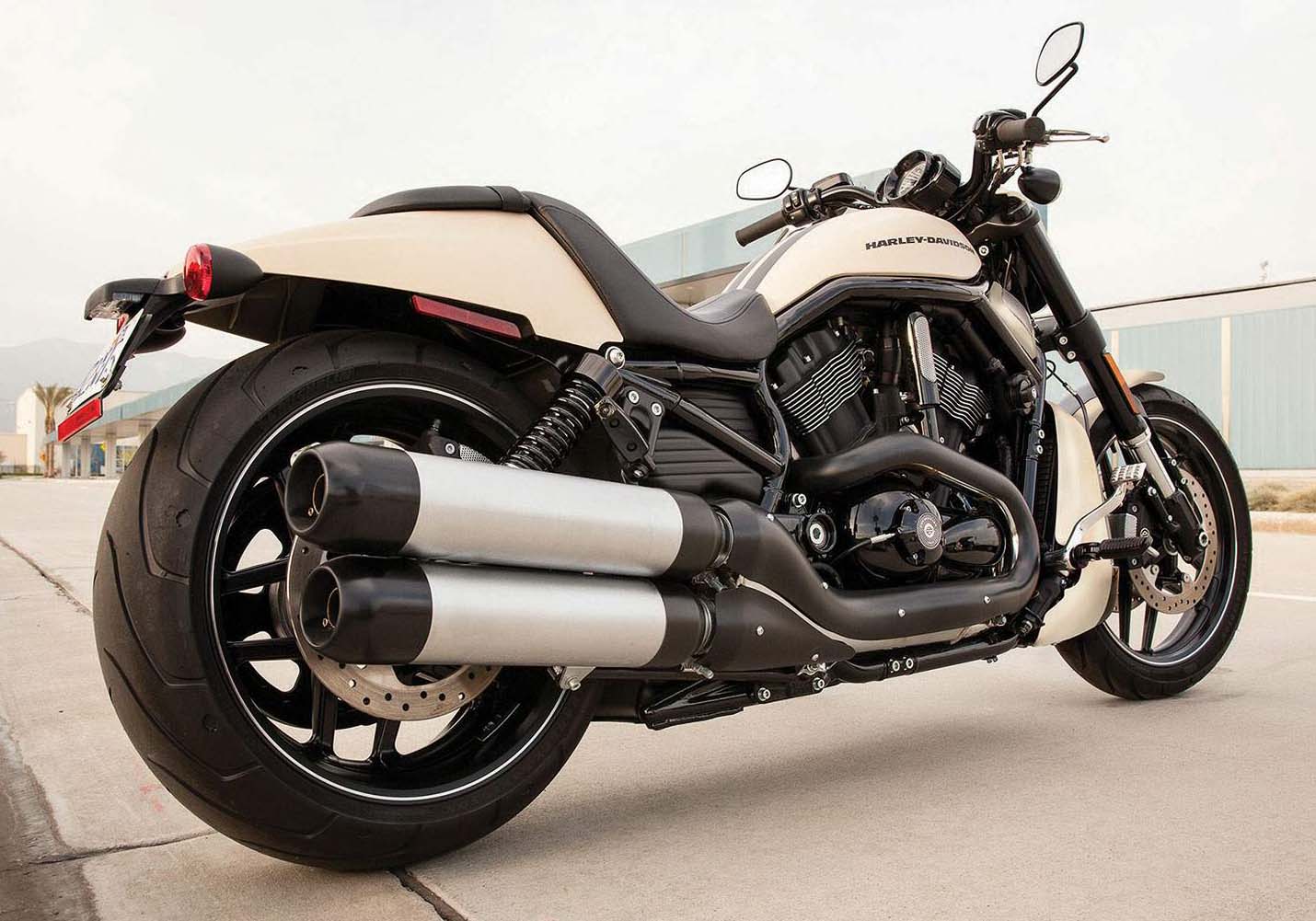

Harley-Davidson Harley Davidson VRSCDX Night Rod Special technical specifications

Harley-Davidson Harley Davidson VRSCDX Night Rod Special is produced in 2014-15. Engine is Four stroke, 60° V-twin, DOHC, 4 valve per cylinder., displacement 1247 cc / 76.1 cu in , produces power 123 hp / 90.5 kW @ 8000 rpm and 116 Nm / 86 ft. lbs@ 7250 rpm. Harley-Davidson Harley Davidson VRSCDX Night Rod Special wet weight is 304.0 kg / 670 lbs. Harley-Davidson Harley Davidson VRSCDX Night Rod Special has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson VRSCDX Night Rod Special
Years: 2014-15
Engine: Four stroke, 60° V-twin, DOHC, 4 valve per cylinder.
Capacity: 1247 cc / 76.1 cu in
Bore x Stroke: 105 x 72 mm
Cooling System: Liquid cooled
Compression Ratio: 11.5;1
Exhaust: Straight-shot exhaust with brushed finish dual mufflers; black end caps and exhaust shield
Induction: Electronic Sequential Port Fuel Injection
Ignition: Digital CDI
Starting: Electric
Max Power: 123 hp / 90.5 kW @ 8000 rpm
Max Torque: 116 Nm / 86 ft. lbs@ 7250 rpm
Transmission: 5 Speed
Final Drive: Belt
Primary Drive: Gear, 64/117 ratio
Gear Ratio: 1st 11.752 10.969 10.969 /2nd 7.898 7.371 7.371 / 3rd 6.322 5.900 5.900 4th 5.459 5.095 5.095 / 5th 4.889 4.563 4.563
Frame: Steel perimeter upper frame w/hydroformed main rails and bolt-on lower frame rails, MIG welded
Front Suspension: Huge 49mm telescopic forks
Front Wheel Travel: 100 mm / 3.9 in
Rear Suspension: Dual coil over adjustable shock
Rear Wheel Travel: 70 mm / 2.7 in
Front Brakes: 2x 300mm discs 4 piston calipers
Rear Brakes: Single 300mm disc 4 piston caliper
Wheels: Optional Style Type Black, Split 5-Spoke Cast Aluminum w/ Machined Pinstripe Standard on Select Colors
Front Wheel: Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Rear Wheel: Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe
Front Tyre: 120/70ZR-19 60W
Rear Tyre: 240/40R-18 79V
Rake (steering head): 34°
Trail: 142 mm / 5.6 in
Dimensions: Length 2440 mm / 96.1 in
Wheelbase: 1705 mm / 67 in
Seat Height: Laden 650 mm / 25.6 in Unladen .678 mm / 26.7 in
Ground Clearance: 114 mm / 4.5 in
Gross Vehicle Weight Rating: 488.0 kg / 1075 lbs
Wet Weight: 304.0 kg / 670 lbs
Oil Capacity: 4.7 Litres / 5 qts
Fuel Capacity: 18.9 Litres / 5.0 US gal
