Harley-Davidson Harley Davidson Street Glide Ultra (2025) technical specifications

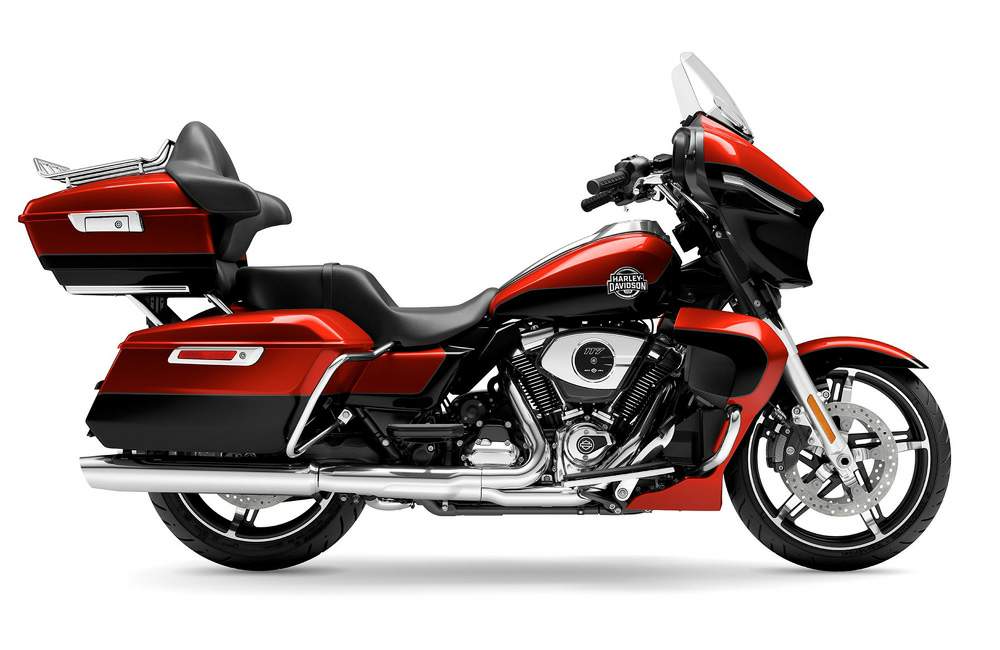

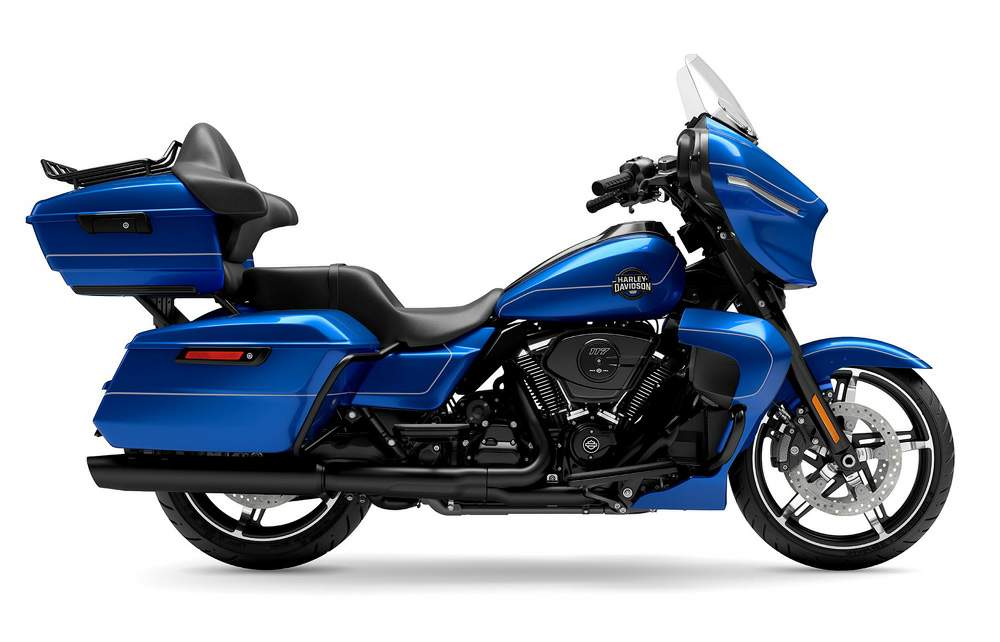

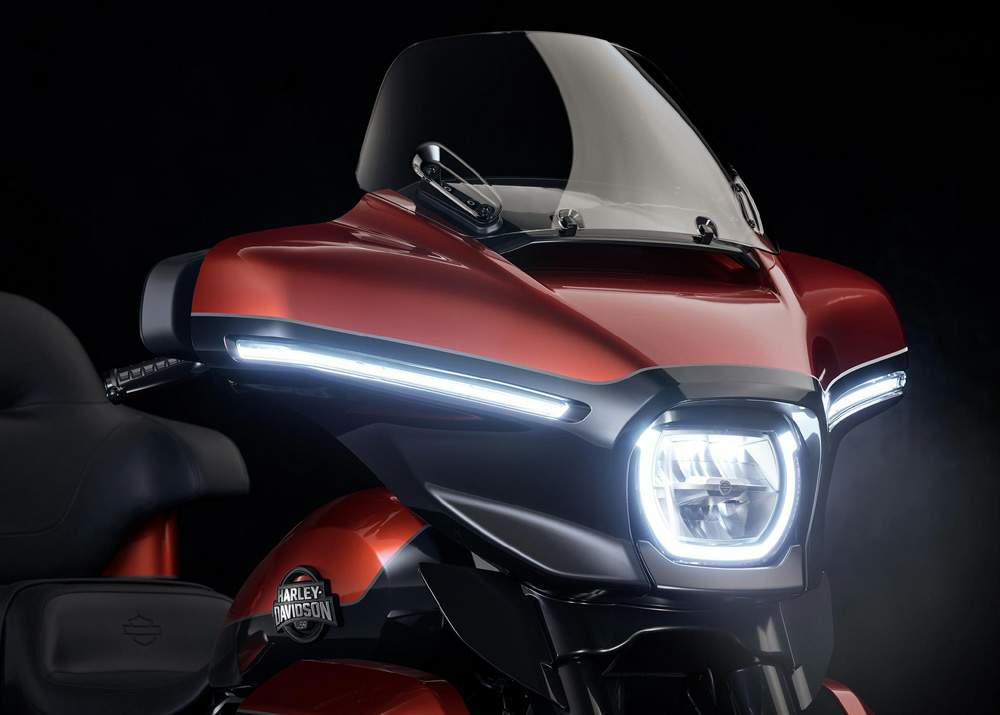

Harley-Davidson Harley Davidson Street Glide Ultra is produced in 2025. Engine is Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1923 cc / 117 cu-in , produces power 105 hp / 78 kW @ 4600 rpm and 176 Nm / 130 lb-ft @ 3250 rpm. Harley-Davidson Harley Davidson Street Glide Ultra weighs 377 kg / 831 lbs. Harley-Davidson Harley Davidson Street Glide Ultra has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson Street Glide Ultra
Years:	2025
Engine:	Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity:	1923 cc / 117 cu-in
Bore x Stroke:	103.5 x 114.3 mm
Cooling System:	Air cooled
Compression Ratio:	10.3:1
Exhaust:	2-1-2 Dual exhaust with tapered mufflers
Induction:	Electronic sequential port fuel injection (ESPFI)
Lubrication:	Pressurized, dry-sump with oil cooler
Ignition:	Single-fire, non-wasted, map-controlled spark ignition
Starting:	Electric
Max Power:	105 hp / 78 kW @ 4600 rpm
Max Torque:	176 Nm / 130 lb-ft @ 3250 rpm
Clutch:	Pressurized, dry-sump with oil cooler
Transmission:	6-Speed, cruise drive
Primary Drive:	Chain, 34/46 ratio
Final Drive:	Belt, 32/68 ratio
Gear Ratio:	1st 9.593; 2nd 6.65; 3rd 4.938; 4th 4.000; 5th 3.407; 6th 2.875
Frame:	Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm:	Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Suspension:	49mm Dual bending valve
Front Wheel Travel:	117 mm / 4.6 in
Rear Suspension:	Dual Outboard Emulsion with Preload Adjustability
Rear Wheel Travel:	76 mm / 3.0 in
Front Brakes:	2 x 320mm discs, 4-piston fixed dual axially mounted front calipers
Rear Brakes:	Single 300mm disc, single axially mounted caliper
ABS:	Standard
Wheels:	Cast Aluminium
Front Wheel:	3.5 x 19 in
Rear Wheel:	5.0 x 18 in
Front Tyre:	130/60B19 M/C 61H, Dunlop? Harley-Davidson Series, bias blackwall
Rear Tyre:	BW 180/55B18 M/C 80H, Dunlop? Harley-Davidson Series, bias blackwall
Rake:	26?
Trail:	170 mm / 6.7 in
Lean Angle (left & right):	31?
Dimensions:	Length 2590 mm / 102 in Width 980 mm / 38.6 in Height 1450 mm / 57.1 in
Wheelbase:	1625 mm / 64 in
Seat Height Laden:	683 mm / 26.9 in
Seat Height Unladen:	725 mm / 28.5 in
Ground Clearance:	135 mm / 5.3 in
Dry Weight:	377 kg / 831 lbs
Wet Weight:	393 kg / 866 lbs
Fuel Capacity:	22.7 Litres / 6.0 US gal
