Harley-Davidson Harley Davidson Softail Slim (2018-19) technical specifications

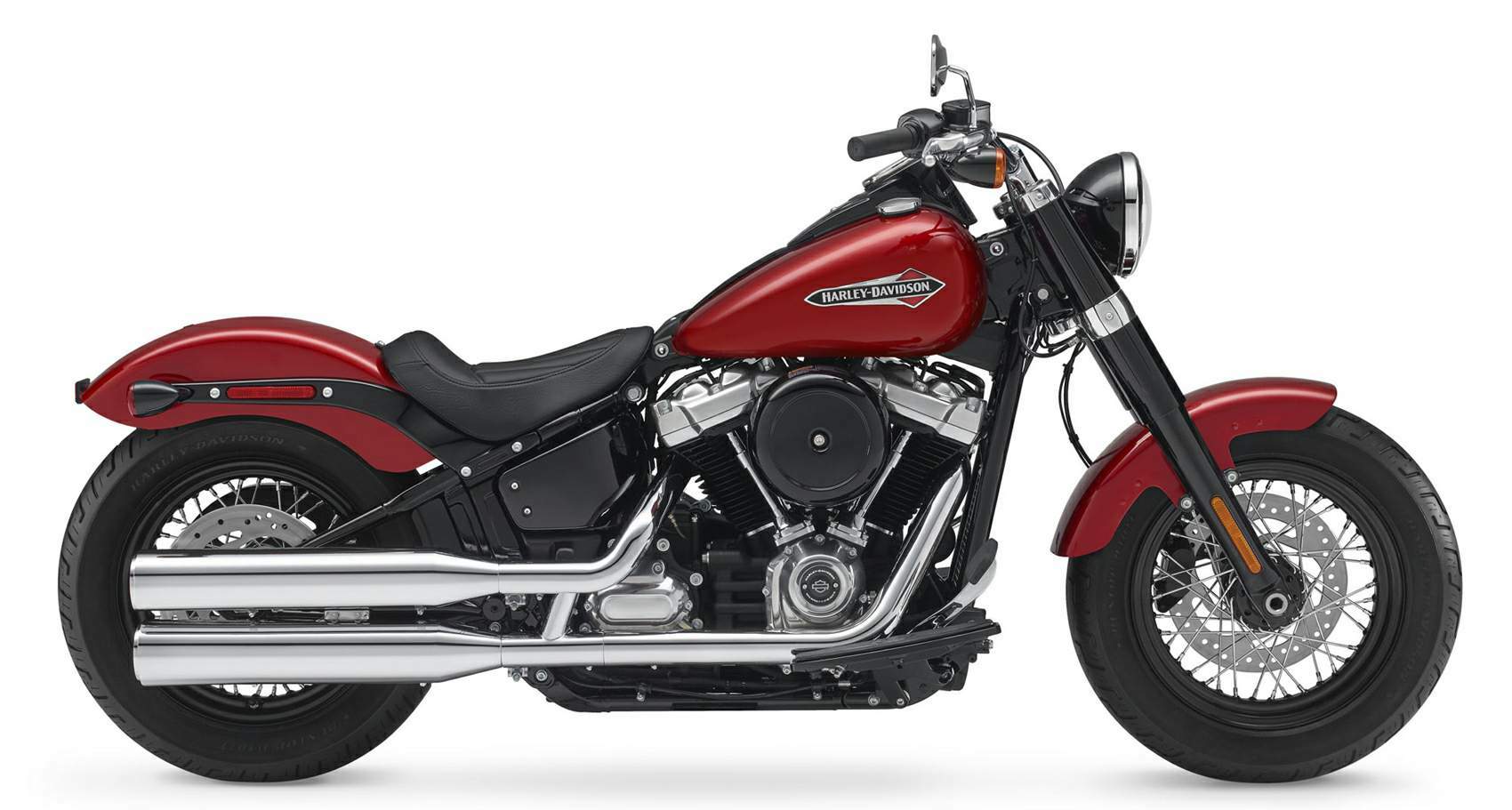

Harley-Davidson Harley Davidson Softail Slim technical specifications

Harley-Davidson Harley Davidson Softail Slim is produced in 2018-19. Engine is Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1746 cc / 107 cub in Harley-Davidson Harley Davidson Softail Slim weighs 291 kg / 642 lbs. Harley-Davidson Harley Davidson Softail Slim has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson Softail Slim
Years: 2018-19
Engine: Four stroke, V-Twin, Milwaukee-Eight 107, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity: 1746 cc / 107 cub in
Bore x Stroke: 100 x 111 mm
Cooling System: Air cooled
Compression Ratio: 10.0:1
Exhaust: 2-into-1-into-2 dual side, catalyst in muffler
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication: Pressurized, dry-sump with oil cooler
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starting: Electric
Max Torque: 145 Nm / 107 ft-lb @ 3250 rpm
Clutch: Multi-plate, wet
Transmission: 6 Speed
Final Drive: Belt
Primary Drive: Chain, 34/46 ratio
Gear Ratio: 1st 9.311 / 2nd 6.454 / 3rd 4.793 / 4th 3.882 / 5th 3.307 / 6th 2.79:1
Lean Angle, Left: 27.4º
Lean Angle, Right: 27.4º
Front Suspension: Showa Inverted forks
Rear Suspension: Mono Shock adjustable
Front Brakes: Single 292 mm discs, 4 piston caliper
Rear Brakes: Single 292 mm disc, 2 piston caliper
Wheels: Gloss Black, Steel Laced
Front Tyre: 130/90B16,53H,BW
Rear Tyre: 150/80B1677H,BW
Rake: 30°
Trail: 147 mm / 5.8 in
Dimensions: Length 2310 mm / 90.9 in
Wheelbase: 1630 mm / 64.2 in
Seat Height: 660 mm / 26 in
Ground Clearance: 120 mm / 4.7 in
Dry Weight: 291 kg / 642 lbs
Wet Weight: 304 kg / 671 lbs
Oil Capacity: 4.7 Litres / 5 US qt
Fuel Capacity: 18.9 Litres / 5.0 US gal
