Harley-Davidson Harley Davidson Softail Low Rider S (2022) technical specifications

Harley-Davidson Harley Davidson Softail Low Rider S technical specifications

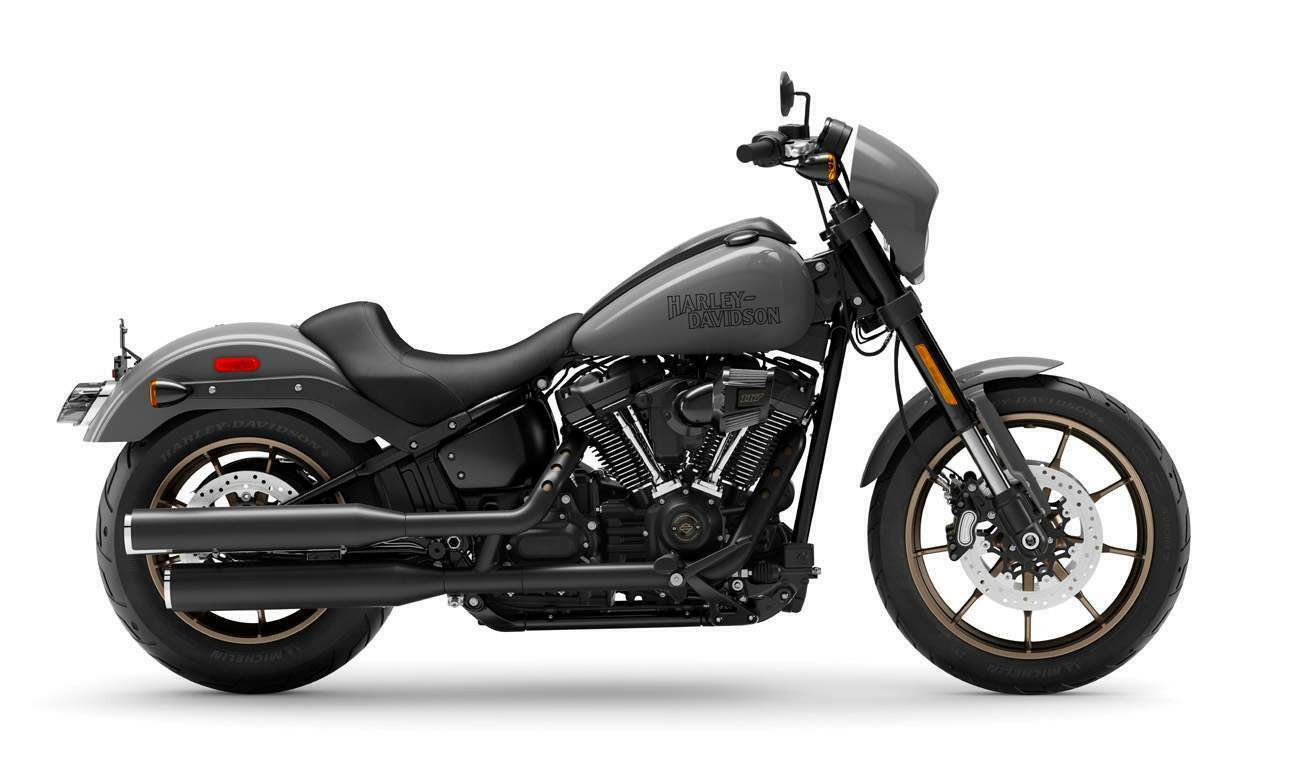

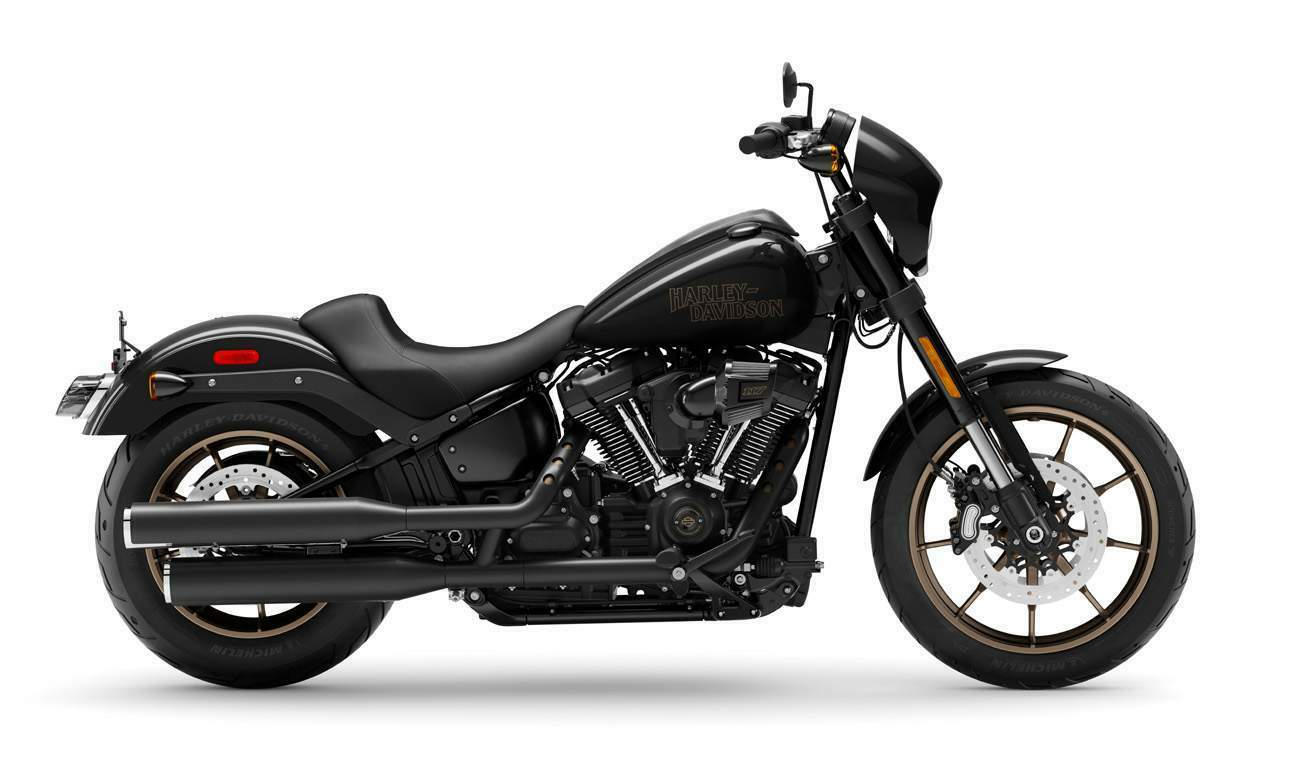

Harley-Davidson Harley Davidson Softail Low Rider S is produced in 2022. Engine is Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder, displacement 1923 cc / 117 cu-in , produces power 103 hp / 77 kW @ 4750 rpm and 169 Nm / 125 lb-ft @ 3500 rpm. Harley-Davidson Harley Davidson Softail Low Rider S weighs 295 kg / 650 lbs. Harley-Davidson Harley Davidson Softail Low Rider S has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: Harley Davidson Softail Low Rider S
Years: 2022
Engine: Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Capacity: 1923 cc / 117 cu-in
Bore x Stroke: 103.5 x 114.3 mm
Cooling System: Air cooled
Compression Ratio: 10.2:1
Exhaust: 2-into-2 offset shotgun; catalyst in muffler
Induction: Electronic Sequential Port Fuel Injection (ESPFI)
Lubrication: Pressurized, dry-sump with oil cooler
Ignition: Single-fire, non-wasted, map-controlled spark ignition
Starting: Electric
Max Power: 103 hp / 77 kW @ 4750 rpm
Max Torque: 169 Nm / 125 lb-ft @ 3500 rpm
Clutch: Mechanical, 10 plate wet, assist & conventional
Transmission: 6 Speed
Primary Drive: Chain, 34/46 ratio
Final Drive: Belt, 32/66 ratio
Gear Ratio: 1st 9.311 2nd 6.454 3rd 4.793 4th 3.882 5th 3.307 6th 2.79
Frame: Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; aluminum forged fender supports
Swingarm: Mild steel, tubular sections, stamped x-member, forged axle junctions; MIG welded; removable belt spacer
Front Suspension: Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
Rear Wheel Travel: 112 mm / 4.4 in
Front Brakes: 2 x 300mm discs, 4 piston caliper
Rear Brakes: Single 292mm disc, 2 piston floating caliper
ABS: Standard
Wheels: Dark bronze, Radiate cast aluminum wheel
Front Tyre: 110/90B19,62H,BW
Rear Tyre: 180/70B16,77H,BW
Rake: 28°
Trail: 145 mm / 5.7 in
Dimensions: Length 2365 mm / 93.1 in Width 870 mm / 34.3 in Height 1195 mm / 47 in
Wheelbase: 1615 mm / 63.6 in
Ground Clearance: 145 mm / 5.7 in
Seat Height: Laden 686 mm / 27 in Unladen 710 mm / 28 in
Dry Weight: 295 kg / 650 lbs
Wet Weight: 308 kg / 679 lbs
Fuel Capacity: 18.9 Litres / 5 US gal
